Mikalor ASFA-High Torque hose clamp | 16 mm | W3

€3,21 Incl. tax
€2,65 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: MKL-W3-HT-025-045
SKU: 03066001
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information

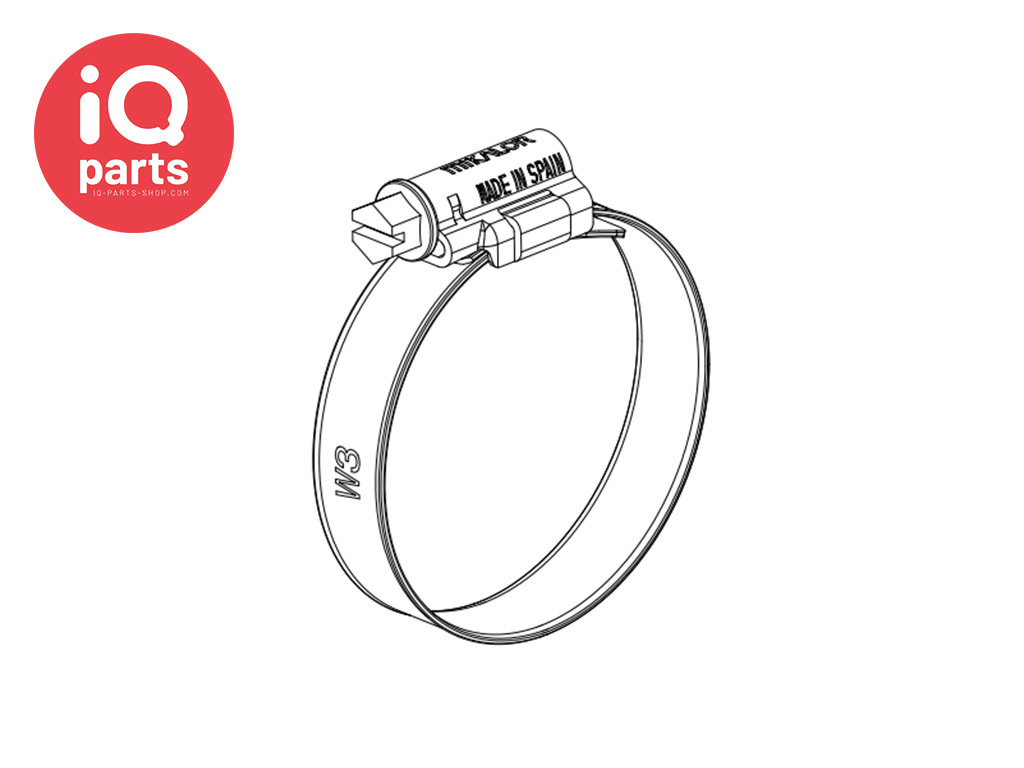

Mikalor ASFA-High Torque hose clamp | 16 mm | W3

Mikalor High-Torque Clamps were designed to guarantee maximum performance in the most demanding applications. Thanks to the use of an M8 screw and the choice of 16mm bandwidth, torque values can be applied which are far higher than those used with the standard ASFA range, thereby ensuring perfect performance in high-pressure applications.

The High-Torque clamp is particularly popular in industrial and automotive applications due to its outstanding performance. The perfectly rounded bevelled band edges avoid the clamp cutting into or damaging the hose.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling

Material:
  • Band and housing: SS W3 (AISI 430, X6Cr17)
  • Screw: SS W4 (AISI 304)
  • Finish: SS
  • Corrosion resistance: 200 hours salt spray
  • Max. tightening speed: 540 RPM (± 5)



Download PDF



Productcode:

0306600-1 - 0306600-2 - 0306600-3 - 0306600-4 - 0306600-5 - 0306600-6 -0306600-7 - 0306600-8 - 0306600-9 - 0306601-0 - 0306601-1 - 0306601-2 -0306601-3 - 0306601-4 - 03066001 - 03066002 - 03066003 - 03066004 - 03066005 - 03066006 -03066007 - 03066008 - 03066009 - 03066010 - 03066011 - 03066012 -03066013 - 03066014

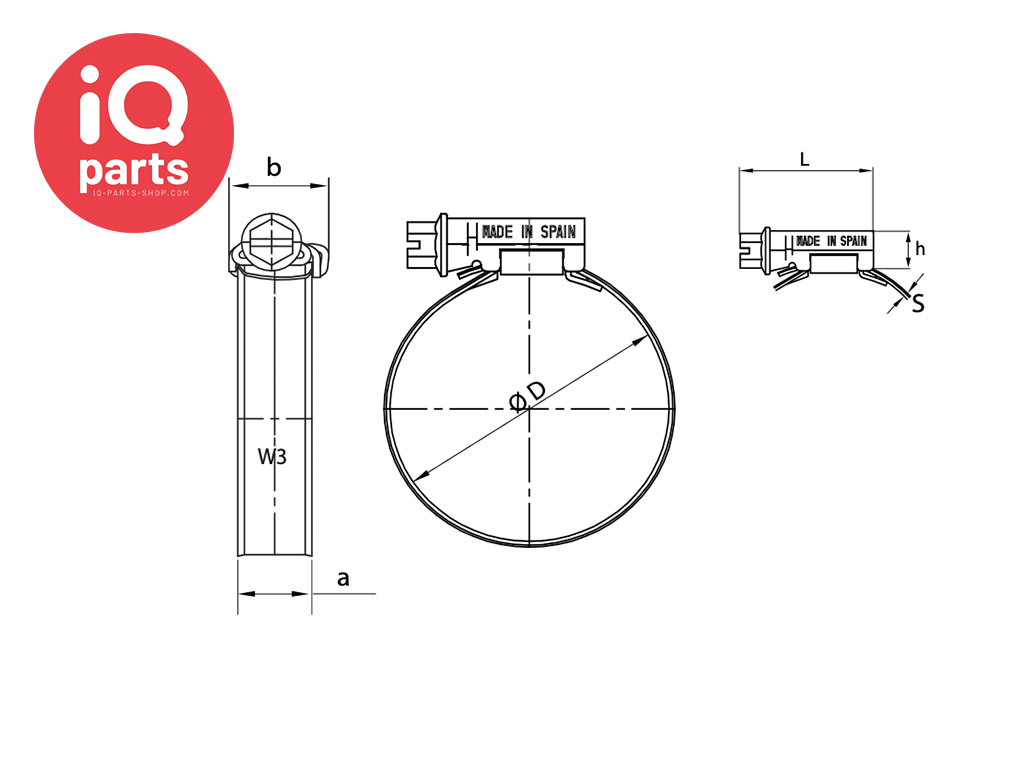

Specifications
Bolt: M8
Bandwidth: 16 mm
Tightening torque (Maximum): 12 Nm (Maximum)
Mikalor Mikalor ASFA-High Torque hose clamp | 16 mm | W3
