CPC - MC1502 / MCD1502 | Coupling Body | Panel mount | Male thread 1/8" NPT

€31,73 Incl. tax
€26,23 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-MCD1502
SKU: MCD1502
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

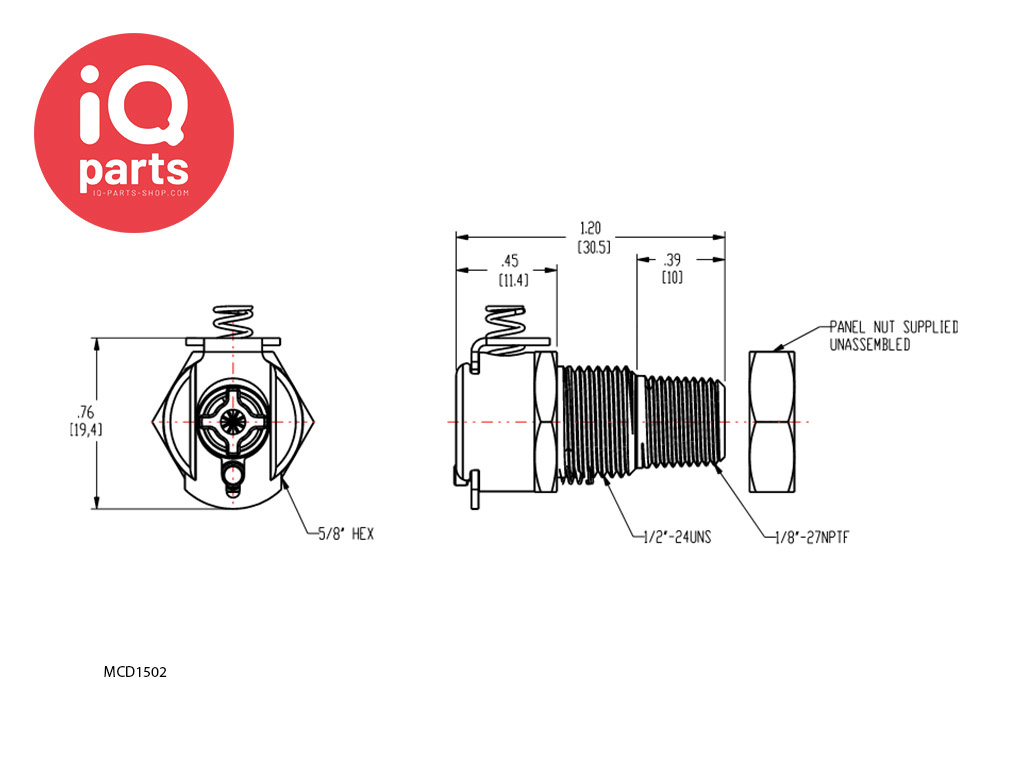

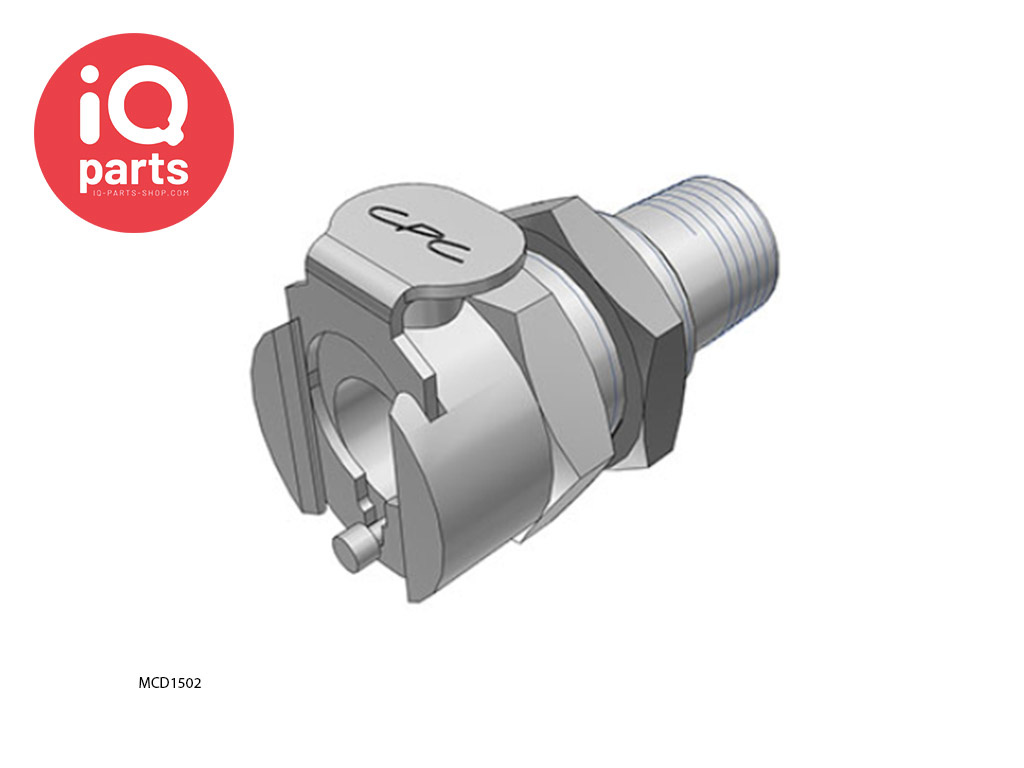

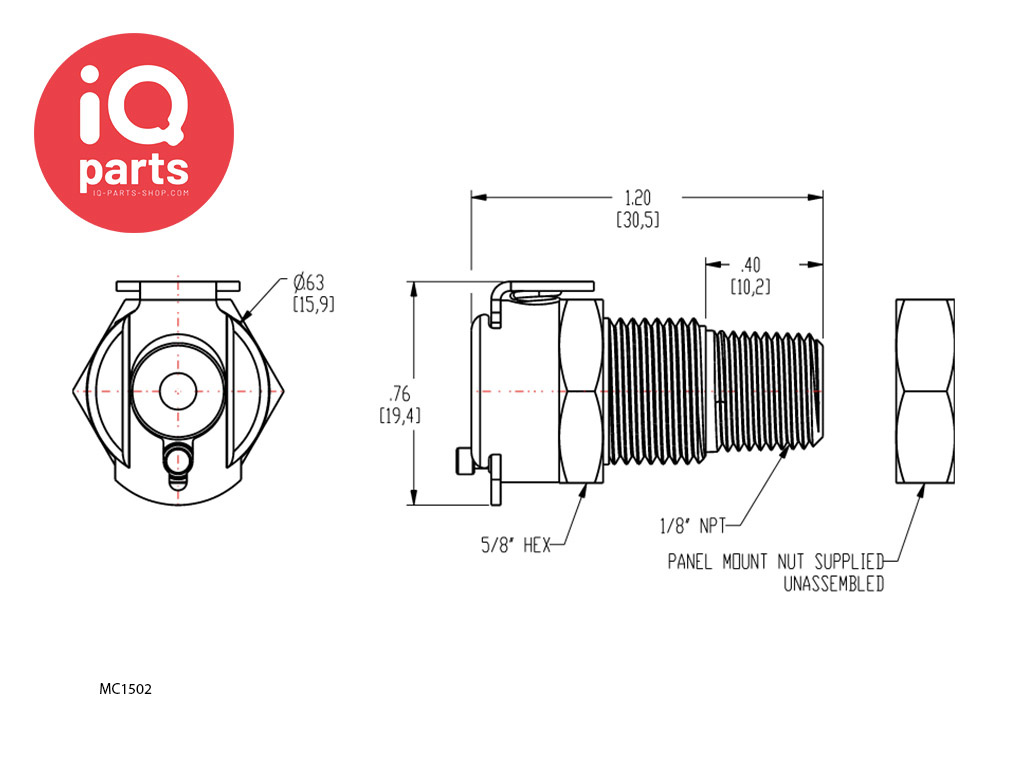

CPC - MC1502 / MCD1502 | Coupling Body | Panel mount | Male thread 1/8" NPT


An in-line coupling of CPC from the MC series with a Male thread 1/8" NPT and suitable for panel mounting through the male thread and fastening nut.

This Coupling Body (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (MCD1502) and without a valve (MC1502). (Choose at the top right at "Make a choice:")

Properties of the coupling from the MC series:
  • Brass Material
  • Chrome plating
  • Durable and able to withstand higher pressure and temperature
  • Attractive appearance
  • Versions rated to 204ºC
  • One-hand connection and disconnection
  • MC mates with PMC and PMC12 Series couplings

Possible Applications:
  • laser cooling systems
  • soil investigation
  • Diagnosis
  • gas cylinder cabinets
  • silkscreen
  • fuel lines


General information about the MC series:

CPC’s MC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the MC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PMLC acetal and PMC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.

For more technical information, see the PDF.

  • Material: Chrome-plated brass
  • Available in various sizes: from 3,2 mm to 6,4 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: Buna-N (NBR)
  • Vacuum up to 17.3 bar (250 PSI)
  • Temperature range: -40ºC to 82ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air
Operating Pressure: 17,3 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Chrome-plated brass
Size: 1/8" flow
Connection: In-line coupling
Seal: Buna-N (NBR)
Hose connection: Male thread 1/8" NPT
Weight: --
CPC CPC - MC1502 / MCD1502 | Coupling Body | Panel mount | Male thread 1/8" NPT
