CPC - LQ6D20008BLU / LQ6D20008RED | Coupling Insert | Chrome-plated brass | PTF Nut 12,7 mm (1/2") OD / 9,5 mm (3/8") ID

€102,54 Incl. tax
€84,75 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-LQ6D20008BLU
SKU: LQ6D20008BLU
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information
CPC - LQ6D20008BLU / LQ6D20008RED | Coupling Insert | Chrome-plated brass | PTF Nut 12,7 mm (1/2") OD / 9,5 mm (3/8") ID

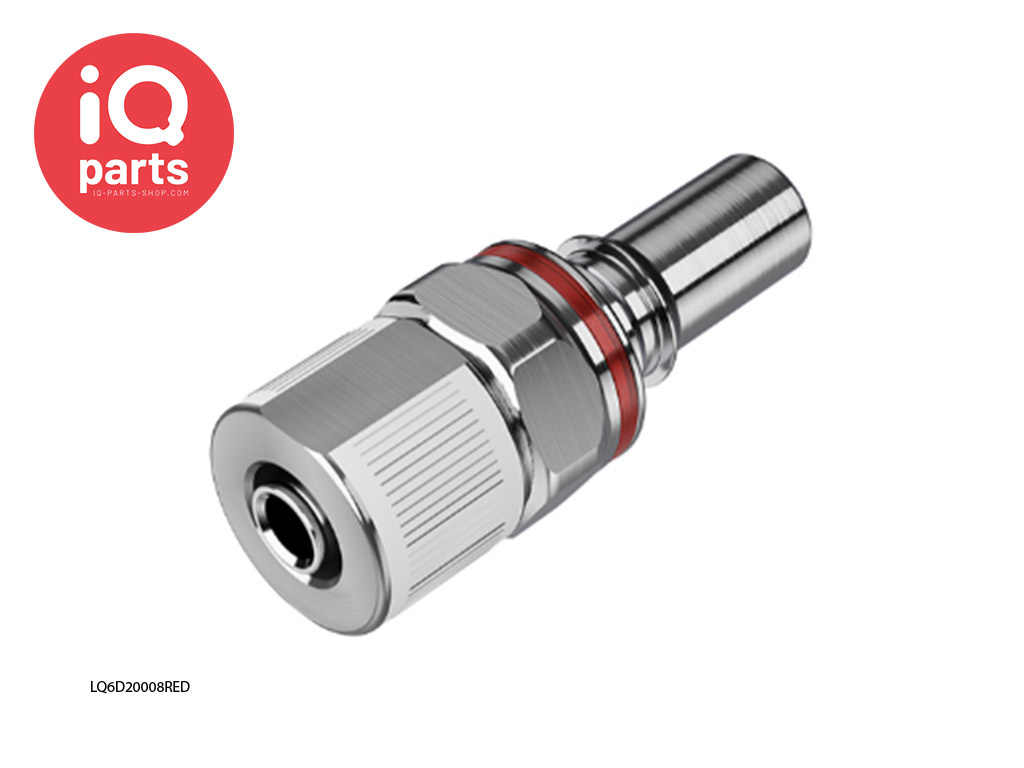

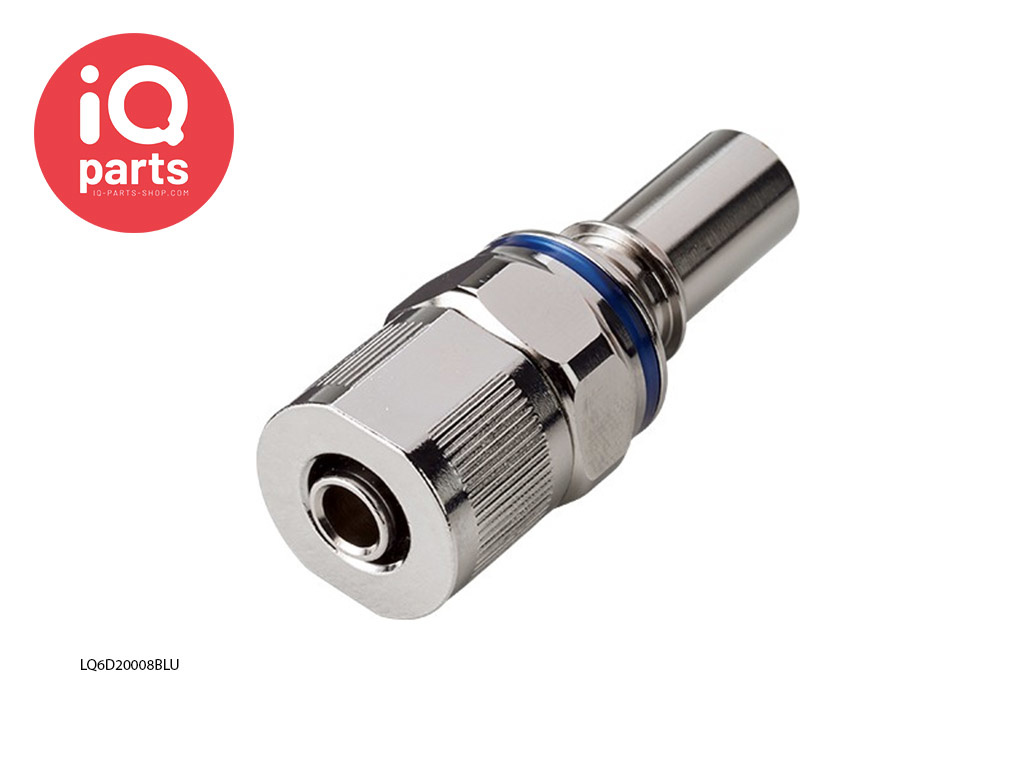

A In-line coupling Insert from CPC from the LQ6 series with a PTF Nut 12,7 mm (1/2") OD / 9,5 mm (3/8") ID. This coupling Insert (male) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/warm (LQ6D20008RED) and Blue/cool (LQ6D20008BLU) color coding. (Choose at the top right at "Make a choice:")

This coupling is supplied as standard with an EPDM sealing ring, but are also available with an FKM (Viton) O-ring.

Features of the couplings from the LQ6 series:
  • Brass material
  • Chrome Finish
  • Color coding; Instant visual identification of the cooling lines
  • Non-spill design; Disconnecting under pressure with no spill
  • Extra protection against leaks for a extended period of time
  • High flow capacity at low pressure; cost-effective cooling system
  • Choice of EPDM or FKM (Viton) O-rings, depending on the application
  • Ergonomic design; Easy one-handed operation with audible closing
  • Small design; dimensions suit electronics in small spaces
  • Available with screw thread and hose tail
  • Rotation allows movement; Eliminates tube kinking

Possible applications:
  • Powerful super computers
  • Data centers
  • Medical technology
  • Cooling systems
  • Medical equipment

General information about the LQ6 series:
The Everis LQ6 Series fittings feature 3/8” flow for liquid cooling of electronics applications. Everis™ LQ6 connectors offer a high-flow capacity to optimize system performance. They provide ultra-reliable, dripless connections and disconnections to protect valuable equipment. Everis LQ6 fittings use patent pending valve technology that eliminates drips and are designed for long-term use. FKM and EPDM seals are standard options for compatibility with dielectric or glycol/water coolants. For other material and termination options contact our sales department.

  • Material: Chrome Plated Brass
  • Valve and release button: Polysulfone
  • Available with hose tail, male thread 1/2" SAE-8, 3/8" SAE-6, 3/8" G/BSPP, 3/8" NPT or PTF
  • Stainless steel valve spring
  • O-rings: EPDM, FKM (Viton) optional
  • Working pressure: vacuum up to 8,3 bar (120 PSI)
  • Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
  • Droplet Formation: <0.05 cc at ~ 0 bar and < 0.125 cc at ~ 8,3 bar per disconnect
  • Flow capacity: 4.0 gal/min, 15,1 l/min
  • Lubricant: Krytox® PFPE (chemically neutral)


Look at related products for the right choice for your application or contact our sales department: [email protected]




Specifications
Medium: Liquid Cooling
Operating Pressure: 8,3 bar Vacuum
Temperature range: –17° C tot +115° C
Material: Chrome-plated brass
Size: 3/8" flow
Connection: In-line Coupling Insert
Seal: EPDM
Hose connection: PTF Nut 12,7 mm (1/2") OD / 9,5 mm (3/8") ID
Weight: --
CPC CPC - LQ6D20008BLU / LQ6D20008RED | Coupling Insert | Chrome-plated brass | PTF Nut 12,7 mm (1/2") OD / 9,5 mm (3/8") ID
