CPC - LQ4D47006BLU / LQ4D47006RED | Coupling Insert | Chrome-plated brass | 3/8" G male thread (BSPP)

€61,02 Incl. tax
€50,43 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-LQ4D47006BLU
SKU: LQ4D47006BLU
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
  • Customer service 09:00 - 17:00
Information
CPC - LQ4D47006BLU / LQ4D47006RED | Coupling Insert | Chrome-plated brass | 3/8" G male thread (BSPP)

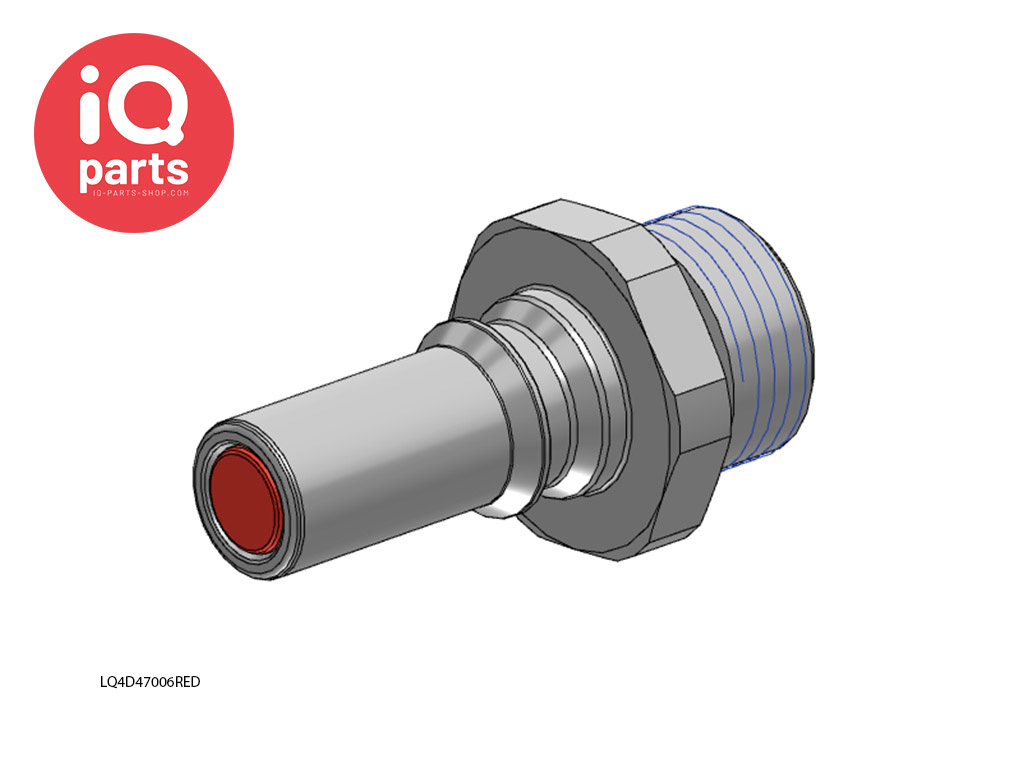

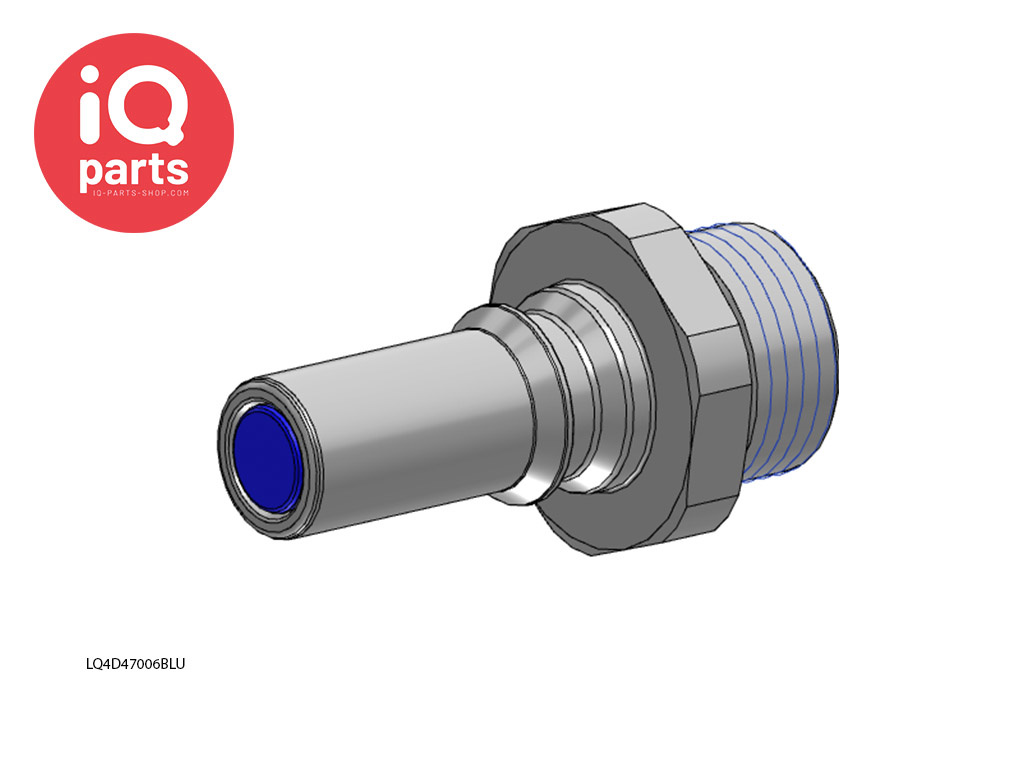

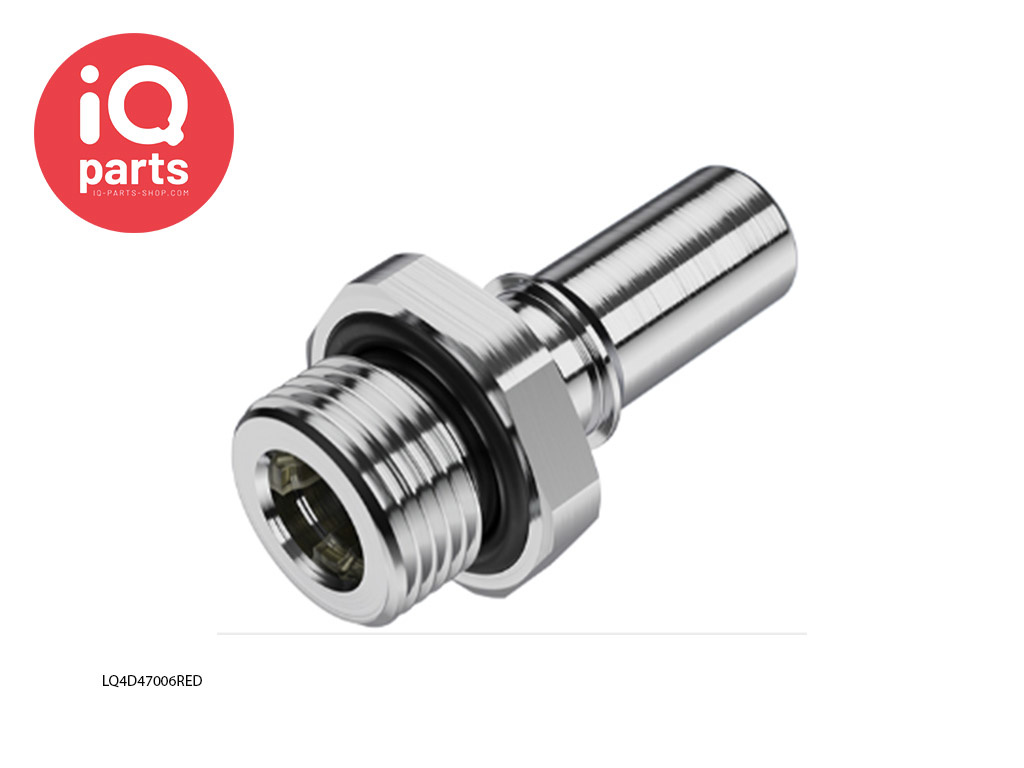

A In-line coupling Insert from CPC from the LQ4 series with a 3/8" G male thread. This coupling Insert (male) ensures a leak-free seal, partly provided by an EPDM sealing ring. This coupling is available in both Red/warm (LQ4D47006RED) and Blue/cool (LQ4D47006BLU) color coding. (Choose at the top right at "Make a choice:")

This coupling is supplied as standard with an EPDM sealing ring, but are also available with an FKM (Viton) O-ring.

Features of the couplings from the LQ4 series:
  • Brass material
  • Chrome Finish
  • Color coding; Instant visual identification of the cooling lines
  • Non-spill design; Disconnecting under pressure with no spill
  • Extra protection against leaks for a extended period of time
  • High flow capacity at low pressure; cost-effective cooling system
  • Choice of EPDM or FKM (Viton) O-rings, depending on the application
  • Ergonomic design; Easy one-handed operation with audible closing
  • Small design; dimensions suit electronics in small spaces
  • Available with screw thread and hose tail

Possible applications:
  • Powerful super computers
  • Data centers
  • Medical technology
  • Cooling systems
  • Medical equipment

General information about the LQ4 series:
The Everis™ LQ4 Series quick disconnects with ¼” flow offer a relative high-flow capacity to optimize system performance while providing ultra-reliable, dripless connections and disconnections to protect valuable electronics. Everis LQ4 fittings are designed for long-term use and feature patent pending valve technology that eliminates drips. EPDM and FKM seals are standard options for compatibility with glycol/water or dielectric coolants. For other material and termination options please contact our sales department.

  • Material: Chrome Plated Brass
  • Valve and release button: Polysulfone
  • Available with hose tail, male thread 1/4" SAE-4, 3/8" SAE-6, 1/4" en 3/8" NPT or PTF
  • Stainless steel valve spring
  • O-rings: EPDM, FKM (Viton) optional
  • Working pressure: vacuum up to 8,3 bar (120 PSI)
  • Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
  • Droplet Formation: <0.025 cc at ~ 0 bar and < 0.055 cc at ~ 8,3 bar per disconnect
  • Flow capacity: 3.0 gal/min, 11,3 l/min
  • Lubricant: Krytox® PFPE (chemically neutral)


Look at related products for the right choice for your application or contact our sales department: [email protected]

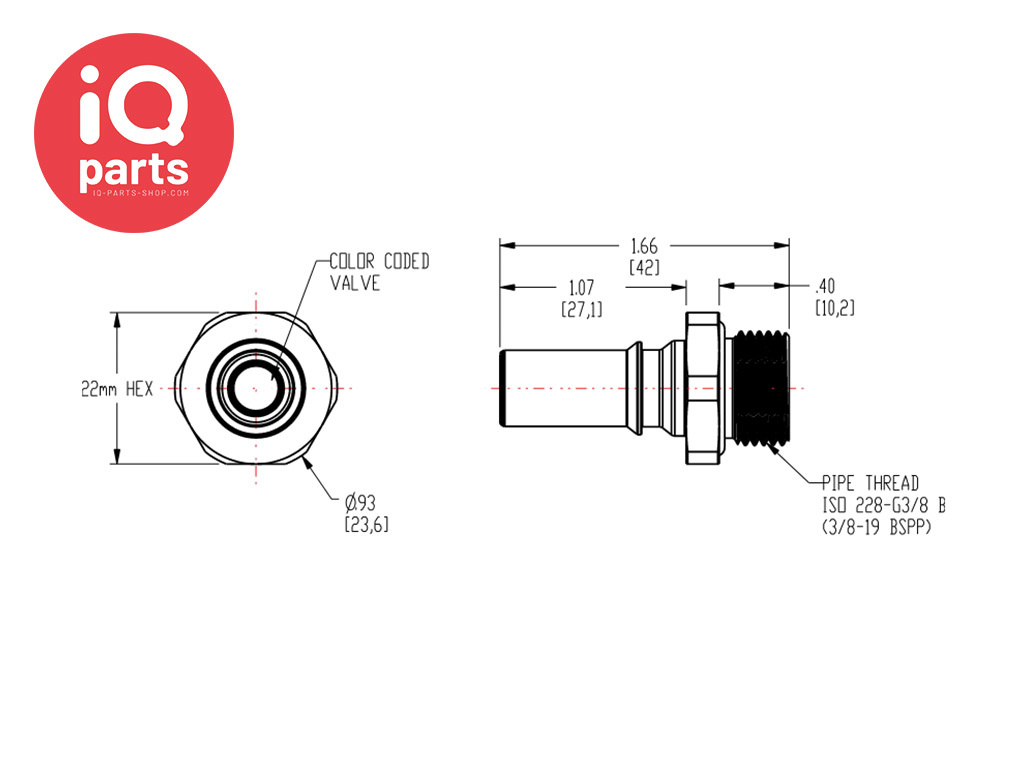

Specifications
Medium: Liquid Cooling
Operating Pressure: 8,3 bar Vacuum
Temperature range: –17° C tot +115° C
Material: Chrome-plated brass
Size: 1/4" flow
Connection: In-line Coupling Insert
Seal: EPDM
Hose connection: 3/8" G male thread (BSPP)
Weight: --
CPC CPC - LQ4D47006BLU / LQ4D47006RED | Coupling Insert | Chrome-plated brass | 3/8" G male thread (BSPP)
