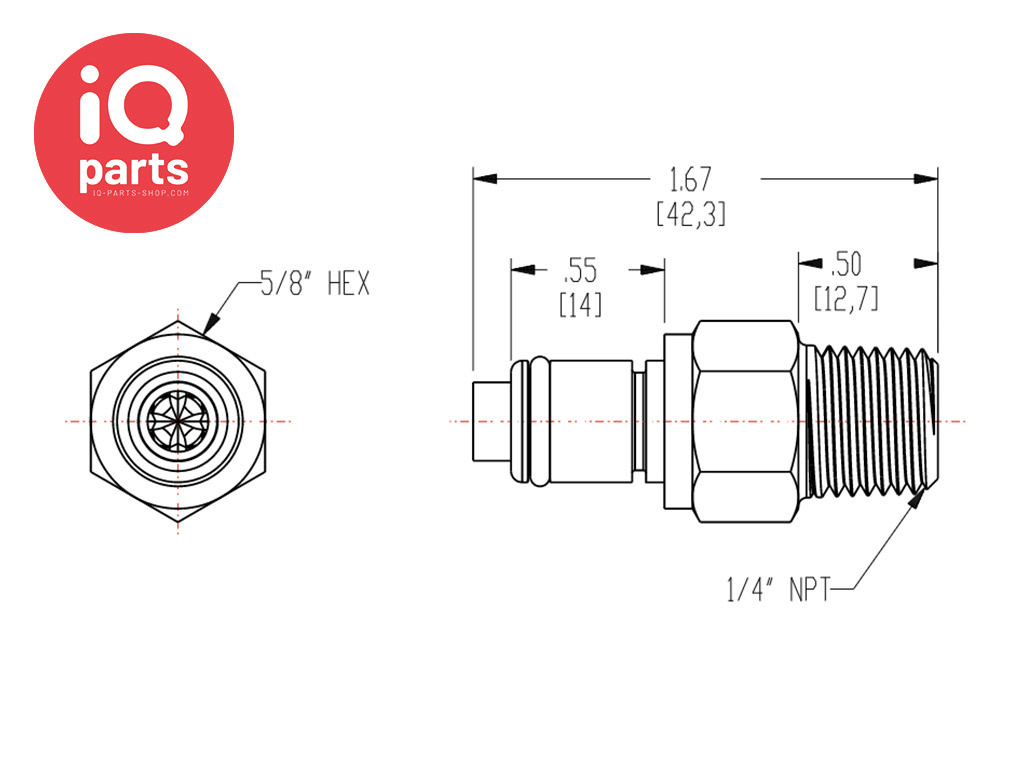

CPC - LCD24004V | Coupling Insert | Chrome-plated brass | 1/4" NPT Pipe Thread (Aprilia)

€28,29 Incl. tax
€23,38 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-LCD24004V
SKU: LCD24004V
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

CPC - LCD24004V | Coupling Insert | Chrome-plated brass | 1/4" NPT Pipe Thread (Aprilia)


The LCD24004V coupling with shut-off valve and 1/4" NPT thread (conical, self-sealing) from CPC is the tank side coupling insert suitable for many Aprilia models. The integrated VITON seal (FKM) makes the LCD24004V suitable for use in combination with fuel.

Installation recommendation for the CPC quick couplings:
  1. Lubricate the threads of the coupling with Loctite 243
  2. Screw the coupling into the threads of the tank plate by hand
  3. Tighten ½ to ¾ turn with wrench

Keep in mind that:
After mounting, 2-3 turns of thread of the coupling are still visible above the tank plate, this is normal as the coupling has a conical thread and the thread in the tank plate is cylindrical.
Wait a day for the Loctite to set before filling the tank.


General information about the LC series:

CPC’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the PLC acetal and PLC12 polypropylene couplings. In addition, couplings are available that meet the requirements of the NSF standard.

For more technical information, see the PDF.

  • Material: Chrome-plated brass
  • Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: Viton (FKM)
  • Vacuum up to 17.3 bar (250 PSI)
  • Temperature range: -40ºC to 82ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Petrol
Operating Pressure: 17,3 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Chrome-plated brass
Size: 1/4" flow
Connection: In-line Coupling Insert
Seal: Viton (FKM)
Hose connection: 1/4" NPT Pipe Thread
Weight: --
