JCS - Mini Clip 9 mm | W1 (Galvanised)
Brand:
JCS
| Article number: | JCS-W1-HGM-007-009 |
| SKU: | 6000709 |
- 2 year warranty
- Delivery time: 1 week after order date
Information

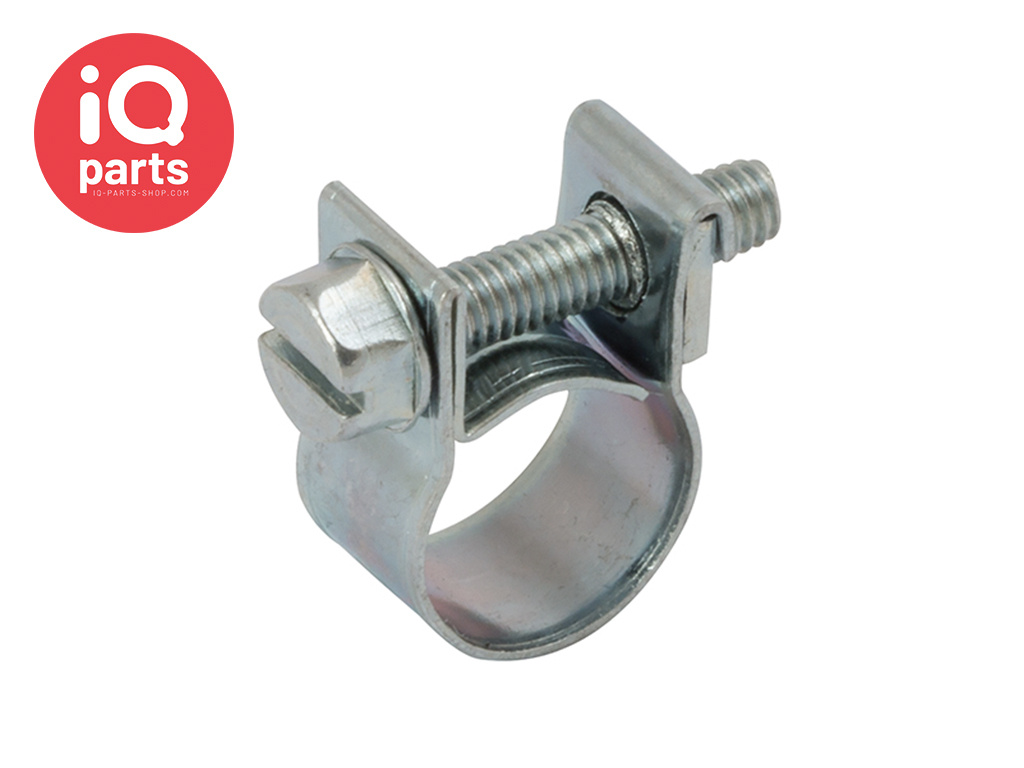

JCS - Mini Clip 9 mm | W1 (Galvanised)

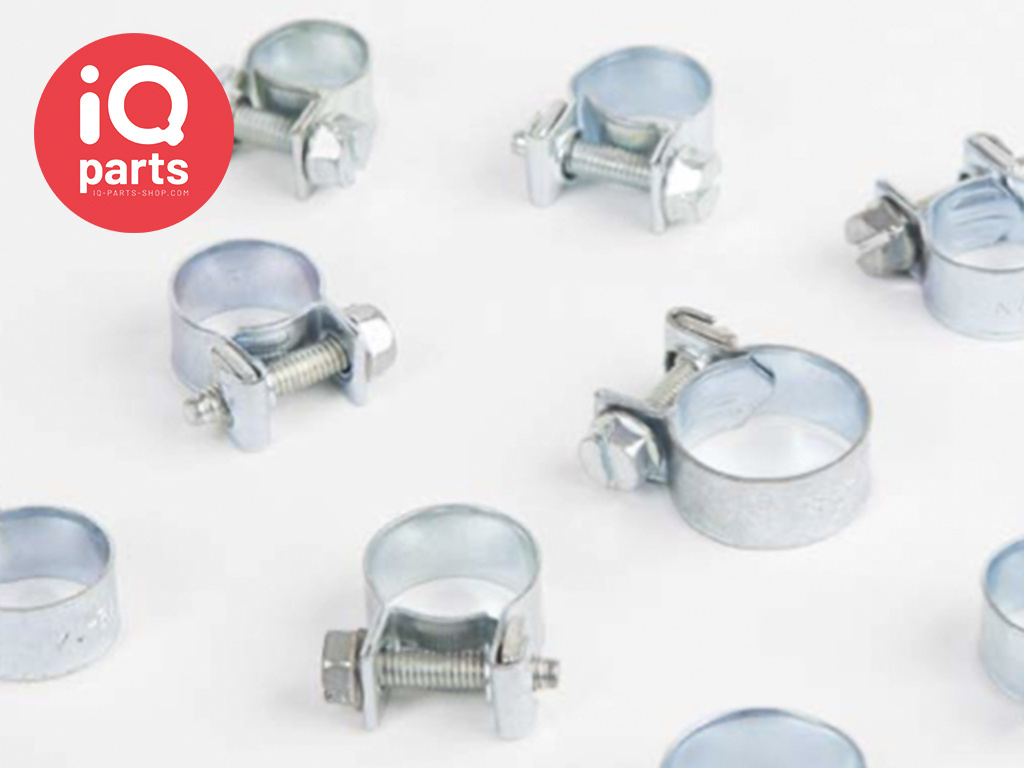

JCS mini hose clips are an economical and reliable solution for many low pressure applications where a larger adjustment range is not required. They are especially suitable for petrol and LPG gas hoses and are available in sizes ranging from 9mm O/D to 18mm O/D.
JCS Mini-Clips are formed from a one-piece band, which means they have no welded parts which can damage the hose. Also, the band is folded over the nut which ensures it remains firmly in place when the screw is removed.

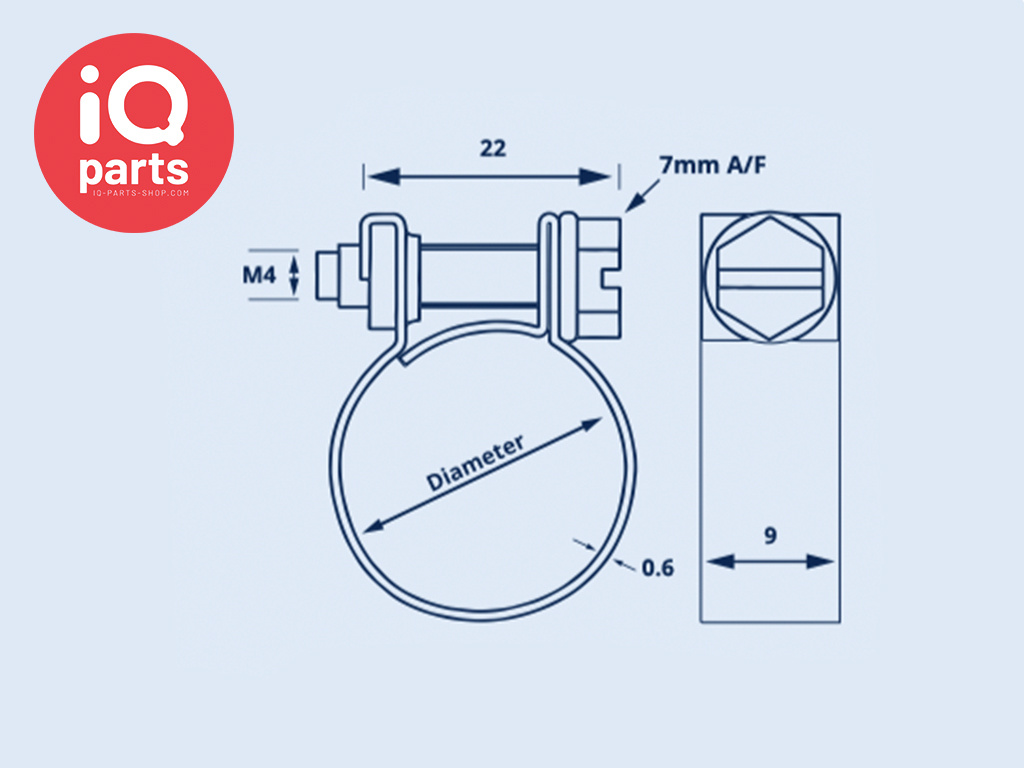

The screw head is formed to a 7mm hexagon head so that the JCS flexible shaft screwdriver can be used making fitting quicker and easier especially in awkward places. The screw head is also slotted for ordinary screwdriver use.
Material Specification
All parts – mild steel, bright zinc plated and passivated
Certificates / Documentation:
Certificates and documentation are available for these products. If desired, you can order these together with your order.
We can offer:
- Certificate of Conformity (CoC)
- EN 10204 3.1 Inspection Certificate
Certificates must be requested at the time of ordering. Certificates requested after shipment may incur additional administrative costs and cannot always be provided retrospectively.
You will find the certificates at the bottom of the drop-down order menu at the top right of this page.
Generally, a subsequent order is significantly more expensive due to the administrative burden.
Product code:
6000709 - 6000810 - 6000911 - 6001012 - 6001113 - 6001214 - 6001315 - 6001416 - 6001517 - 6001618
Specifications
| Bolt: | SW 7 mm |
| Bandwidth: | 9 mm |
| Tightening torque (Maximum): | -- |
