Jacob Pipe-clamps (W4) for ceiling-mounting with rubber-insert (EPDM)
Brand:
Jacob
| Article number: | JAC-10253770-A |
| SKU: | 10253770 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information

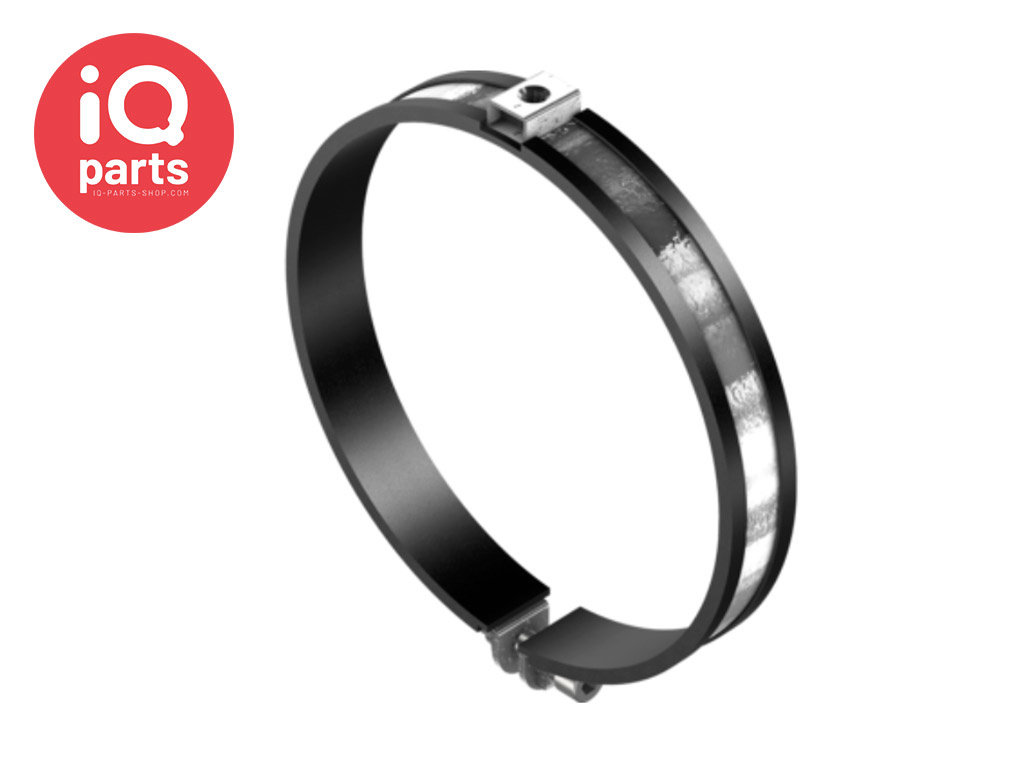

Jacob Pipe-clamps (W4) for ceiling-mounting with rubber-insert (EPDM)
With this pipe clamp you can quickly and easily mount pipes to the ceiling. The clamp is supplied with an EPDM insert, which protects well against vibrations and expansion and contraction of the tube.

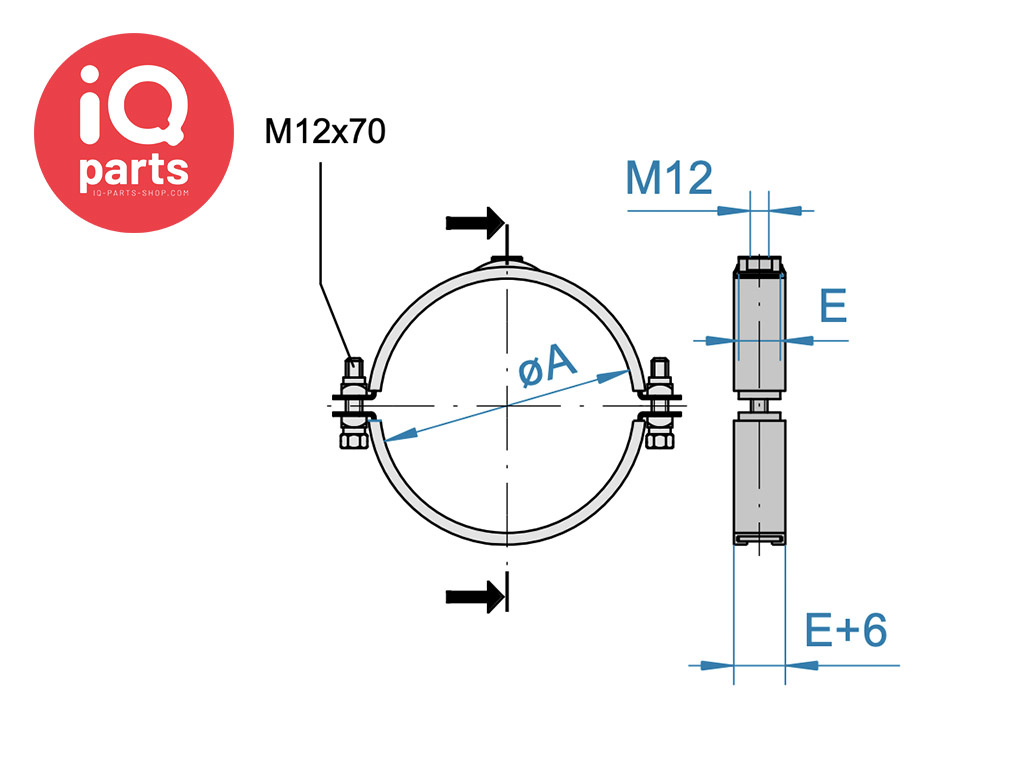

In the sizes DN 60 to DN 300, the clamp consists of 1 part with an M10 bolt at the bottom. In sizes DN315 to DN 800, the clamp consists of 2 parts and contains 2 M12 bolts on the sides.
Please note that you only order the clamp with inlay. Plugs, brackets and studs for mounting must be ordered separately.
Specifications:
- Clamp: Stainless Steel (W4)
- Insert: EPDM (-40º C to +120º C)
- DN 60 to DN 300: 1-piece, 25 mm wide
- DN 315 to DN 800: 2-piece, 30 mm wide
- For more specifications: See the PDF
Also available in Galvanized Steel
Silicone-insert (-60º C to +170º C) on request
Product code:
10063770 - 10083770 - 10103770 - 10123770 - 10143770 - 10153770 - 10173770 - 10203770 - 10223770 - 10253770 - 10283770 - 10303770 - 10313770 - 10353770 - 10403770 - 10453770 - 10503770 - 10563770 - 10633770 - 10713770 - 10803770
