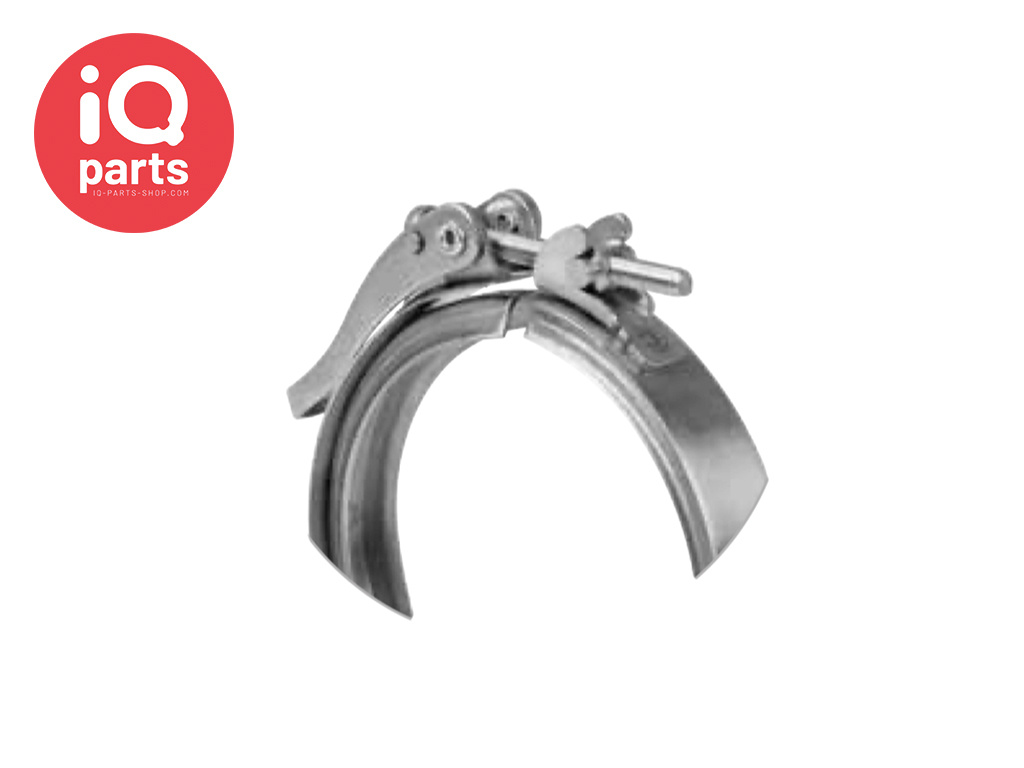

IQ-Parts V-Profile clamp Type SVSPR | W4 | 1-part, 3 segments

The IQ-Parts V-Profile band clamp Type SVSPR is one of the variants from the V-Profile series from IQ-Parts. The Type SVSPR features a tiltable locking mechanism, making assembly even faster and easier.

The IQ-Parts V-profile band clamps are reliable and time-saving connecting elements for industrial and automotive use. They are made to customer requirements and can be supplied with different profiles, belt widths and closure types.

The V-profile band clamps Type SVSPR can be ordered in any other desired diameter. Look for the minimum diameter and for the technical details in the PDF file below before ordering.

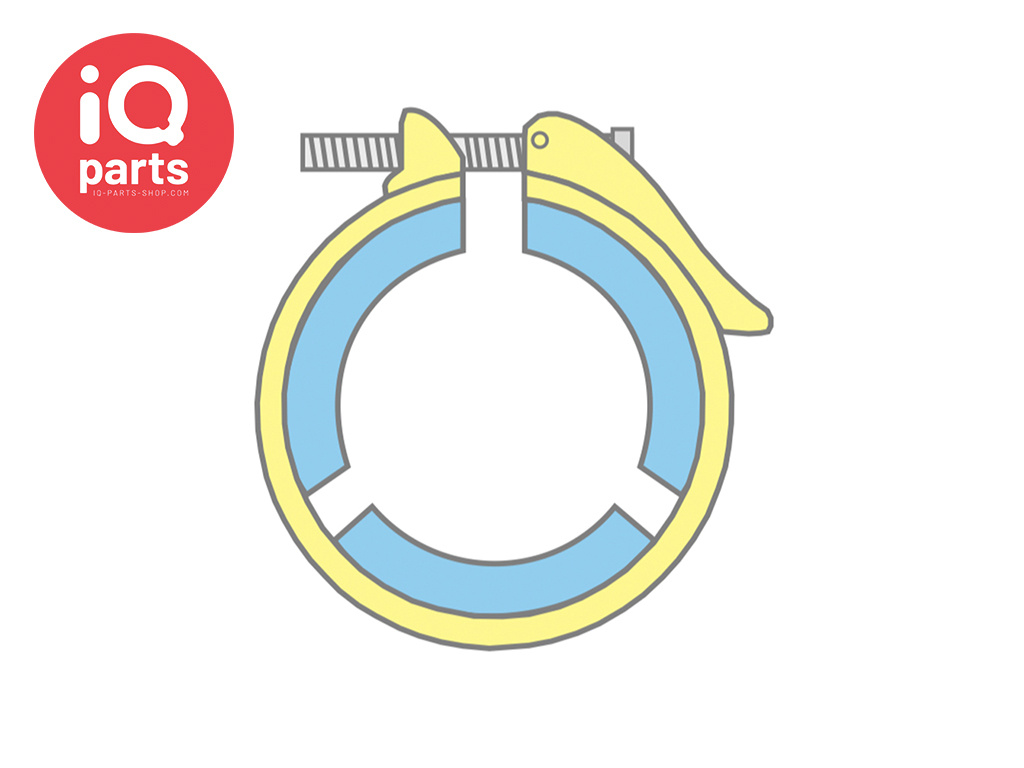

You use this 1-piece version for small inner profile diameters and if you can slide the clamp around the tube, because the clamp can only be bent open to a limited extent.

We also offer a 2-piece clamp with 2 segments. This has a hinge and is available for inner profile diameters from 200 mm to 500 mm.

CLICK HERE to go to the 2-piece clamp.

Other available closure type:

STC: Bolts and nut are pre-assembled.
QRS: With Quick Release Closure, for quick assembly and disassembly.

Benefits at a glance:

Low friction losses
Robust precision components
Consistently high material quality
State-of-the-art automated production
Very competitively priced

Applications:

Automotive: connection turbocharger - catalytic converter
Automotive: exhaust manifold
Industry: bulk material container
Industry: Bypass Filter Unit
Engines
Pumps
EGR systems

Product method:

The method of the profile clamp is based on the principle of an inclined plane. This exerts circumferential force on the profile segments when the locking bolt is tightened. By means of the profile, the two halves of the flange are pressed against each other. The circumferential force applied is converted into a significantly higher axial force.

IQ-Parts V Profile Band Clamps are quick coupling elements for flanges and are an economical alternative to conventional bolted flange connections.

A detailed technical description can be found in the PDF below.

Important information regarding how to order:

We can supply you with the SVS clamps with profile (SVSPR) made to measure.

Enter all the required details in the top right corner.

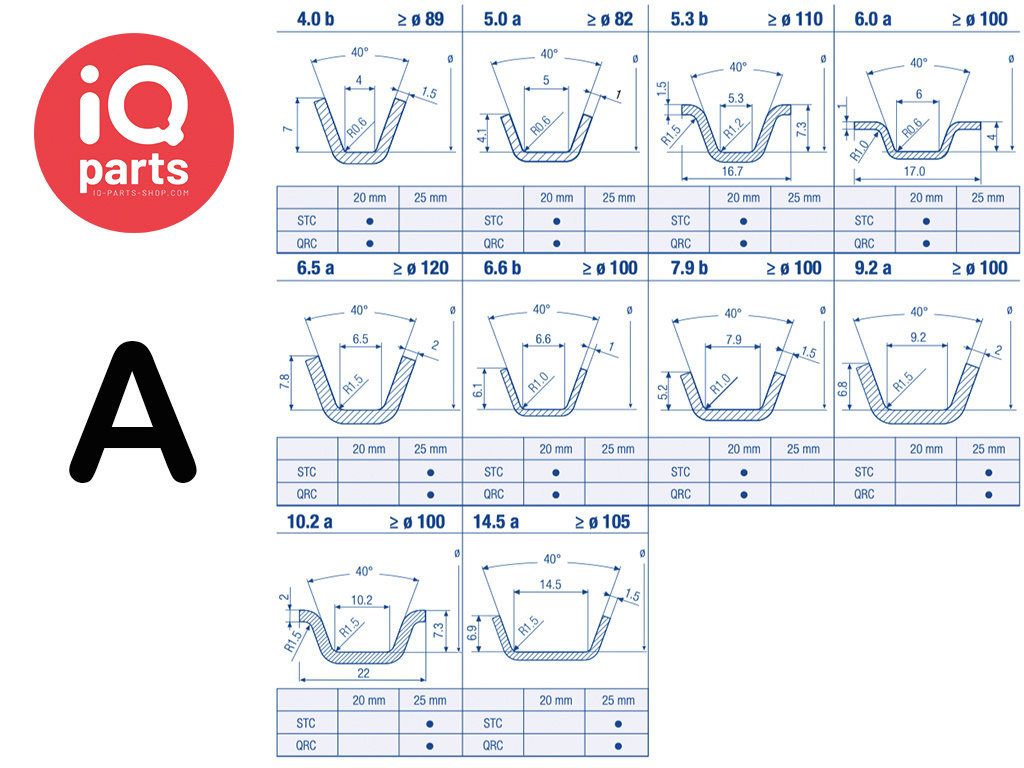

Select the correct PROFILE TYPE, see photo A or the PDF. Note that each type has a minimum and maximum inner profile diameter:

4.0 b: 89 mm - 300 mm and 20 mm wide
5.0 a: 82 mm - 300 mm and 20 mm wide
5.3 b: 110 mm - 300 mm and 20 mm wide
6.0 a: 125 mm - 300 mm and 20 mm wide
6.5 a: 130 mm - 300 mm and 25 mm wide
6.6 b: 100 mm - 300 mm and 20 mm wide
7.9 b: 100 mm - 300 mm and 20 mm wide
9.2 a: 100 mm - 300 mm and 25 mm wide
10.2 a: 130 mm - 300 mm and 25 mm wide
14.5 a: 105 mm - 300 mm and 25 mm wide

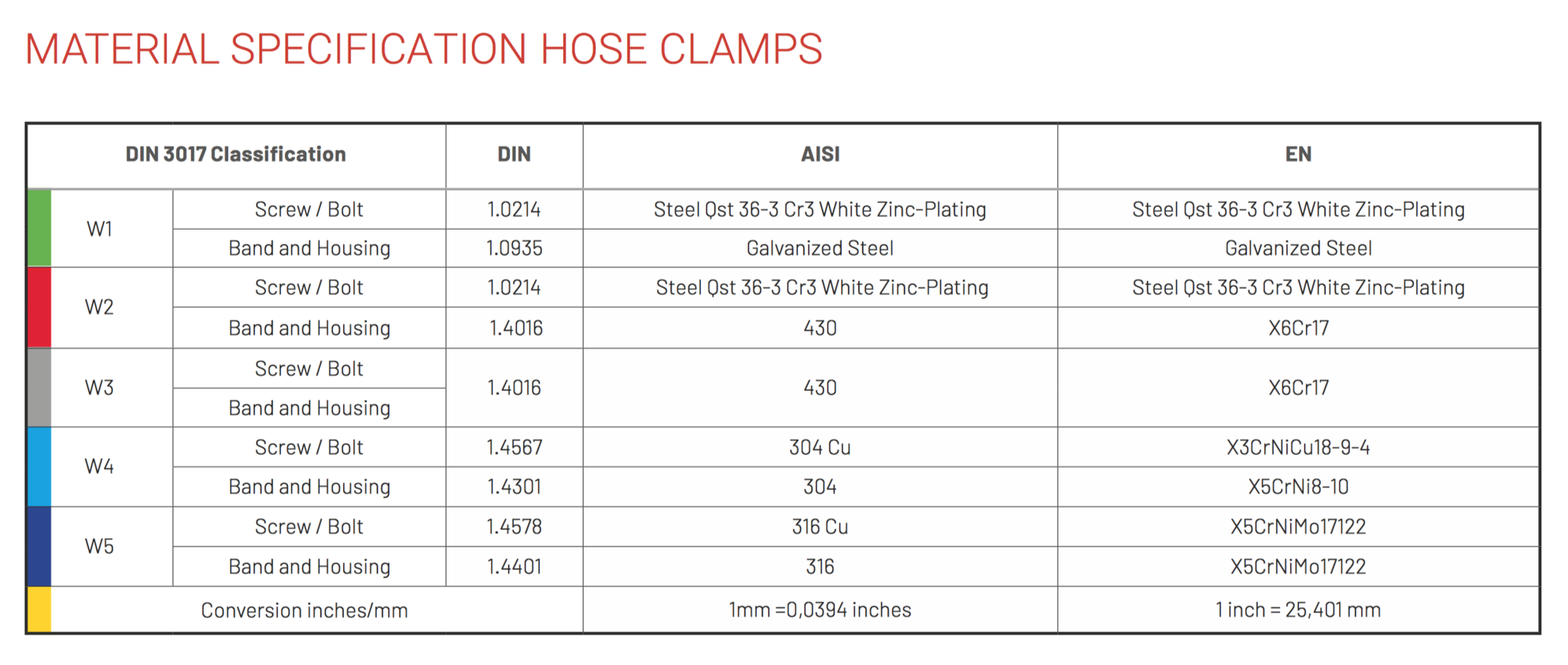

Choose from a W4 or W5 Quality.

Enter the desired inner profile diameter in mm and take into account the above dimensions that apply per Profile type.

And click on “ADD TO CART”

The price remains at € 0, but the products are not free!! You are requesting a no-obligation quote!

Enter all your details at the checkout and select “Bestelling afhalen in Nieuw-Vennep op afspraak” and then “Bank transfer” under Payment method.

Complete the order and click on “BUY”, and we will contact you for a no-obligation quote.

Minimum order unit: 100 pieces

If not in stock, the delivery time is 8 - 10 weeks after order!

Product code:

06072043089 - 06072032082 - 06072028110 - 06072004125 - 06074015130 - 06072031100 - 06072099100 - 06074009100 - 06074081130 - 06074028105

The product photos shown are for illustrative purposes only and no rights can be derived from them. If you are unsure about the correct version or size, please refer to the attached PDF or contact our customer service.

Bolt:	M6 x 70
Bandwidth:	20 mm or 25 mm
Tightening torque (Maximum):	20 mm = 6 NM, 25 mm = 12 NM
