IQ-Parts - Spray protection for flange | Stainless Steel V2A (1.4301)
Brand:
IQ-Parts
| Article number: | IQP-SSS015PN16 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
BETEK - IQ-Parts - Spray protection for flange | Stainless Steel V2A (1.4301)
Splash Protection Clamp / Splash Protection Ring for Flanges, V2A Stainless Steel (1.4301)
The V2A (1.4301) splash protection ring is the ideal solution for reliably preventing uncontrolled leaks at flanged connections. It protects both personnel and equipment from escaping fluids, reduces hazards, and minimizes environmental risks.
The spraying fluid is contained by the protection ring and drained through specially designed drainage grooves.
Features:

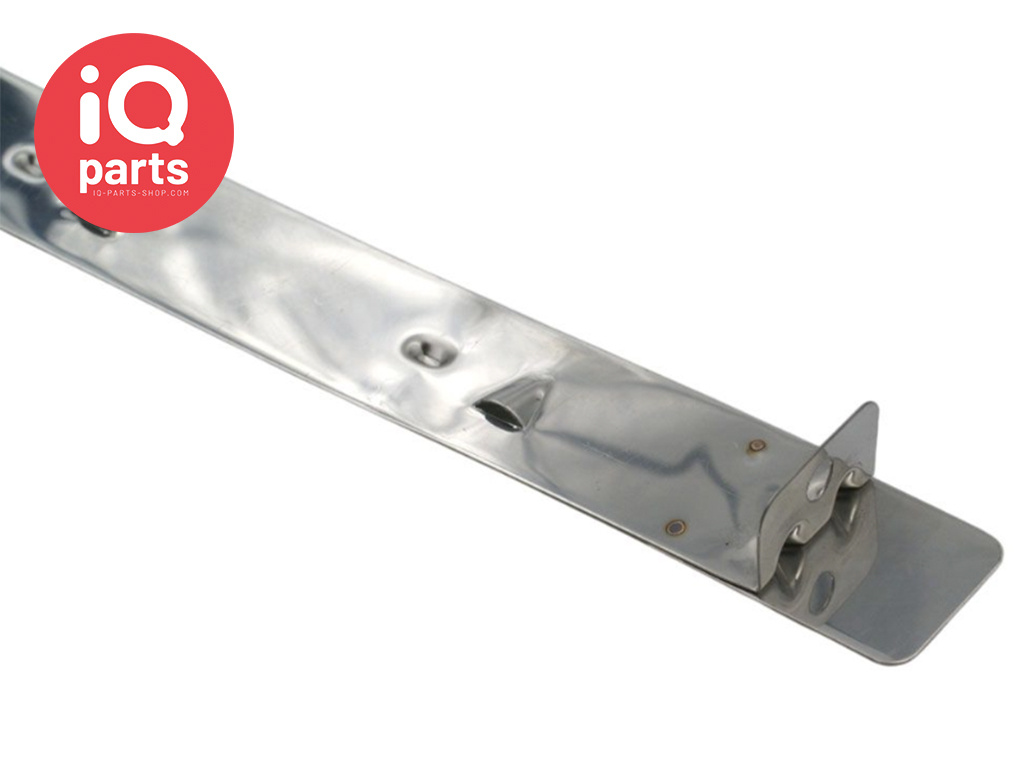

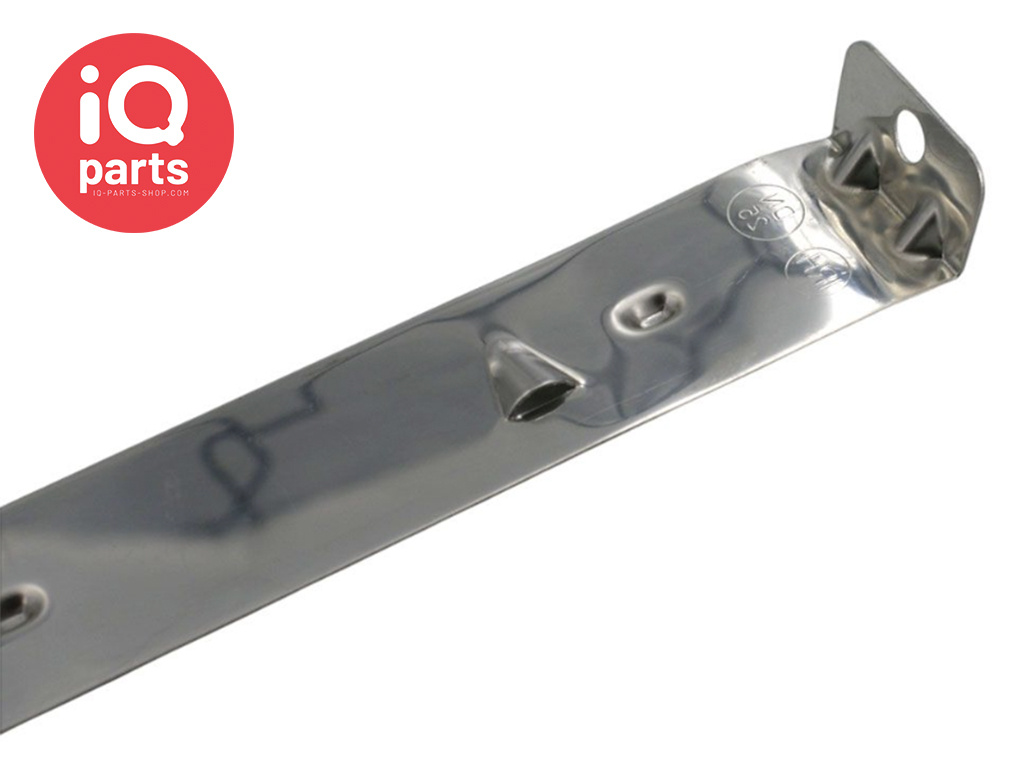

- Internal locking tabs prevent lateral shifting.

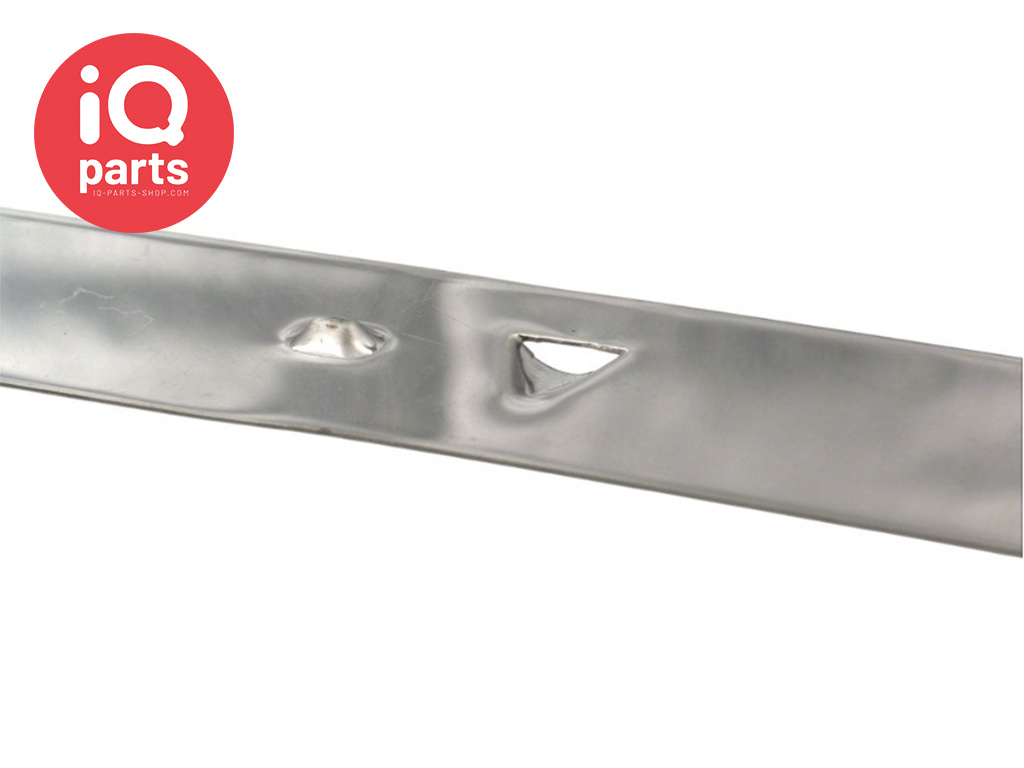

- External, single-sided drainage grooves ensure controlled fluid drainage.

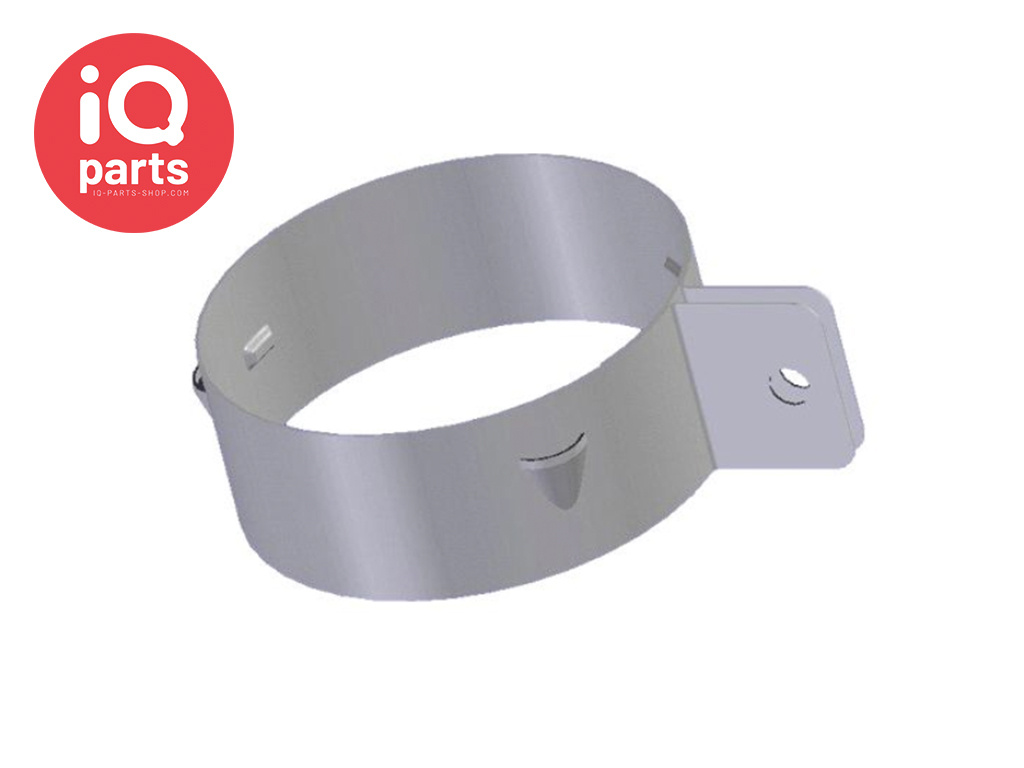

- Easy installation: One-piece splash protection ring for mounting on flanged pipes.
- Versatile application: Suitable for diameters from 95 mm to 285 mm and nominal diameters DN 15 to DN 150.

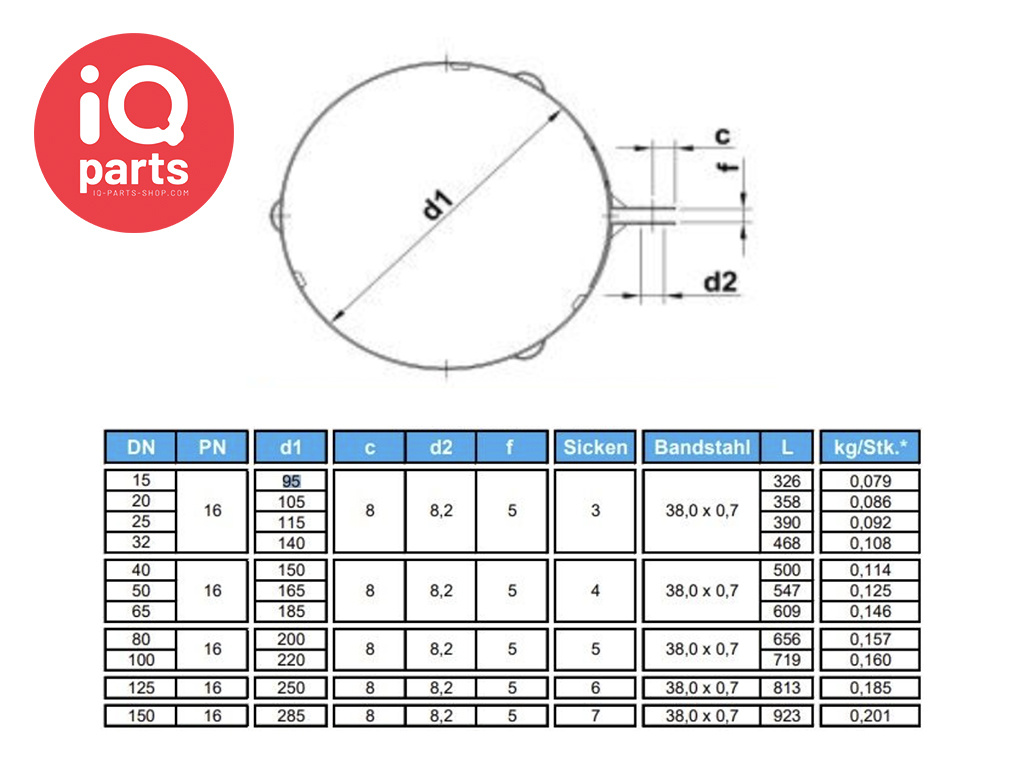

Dimensions:
- Width 38 mm
- Material thickness 0.7 mm
- Perforation 8.2 mm
Benefits:
- Effective protection: Limits and controls the flow of escaping fluids to prevent immediate hazards.
- Flexible drainage: Can be mounted on the left or right, parallel to the pipe, depending on the installation.
- Robust and durable: Made of stainless steel, temperature-resistant, and reusable.
- Easy installation: Tool-free mounting with wing nuts and bolts. (Not included)
Application:

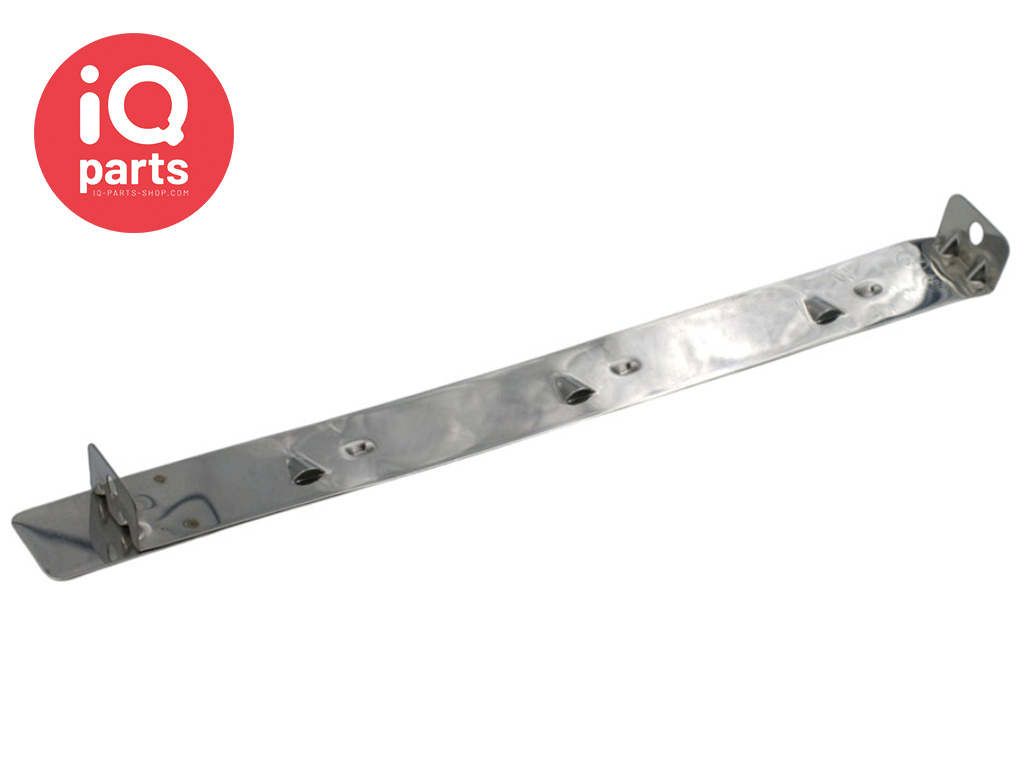

The splash guard ring is supplied flat and, thanks to its clever design, can be quickly and easily attached to the flange connection. It is the perfect protective measure for industrial installations that require a safe working environment and protection against fluid leaks.
Ensure a safe, clean, and controlled pipe environment with the splash guard ring made of high-quality V2A stainless steel.
Product code:
SSS015PN16 - SSS020PN16 - SSS025PN16 - SSS032PN16 - SSS040PN16 - SSS050PN16 - SSS065PN16 - SSS080PN16 - SSS100PN16 - SSS125PN16 - SSS150PN16 - SSS200PN16
Specifications
| Bolt: | Bolt or wing nut (Not included) |
| Bandwidth: | 38 mm |
| Tightening torque (Maximum): | -- |
