HYDAC - Twin Clamp | Profiled Design | DIN 3015 Part 3 | clamping jaw pairs
Brand:
HYDAC
| Article number: | HYD-GR-16-DOKP |
| EAN: | 4050571331023 |
| SKU: | GR 16 DOKP |
- 2 year warranty
- Delivery time: 2 Weeks
Information
HYDAC - Twin Clamp | Profiled Design | DIN 3015 Part 3 | clamping jaw pairs

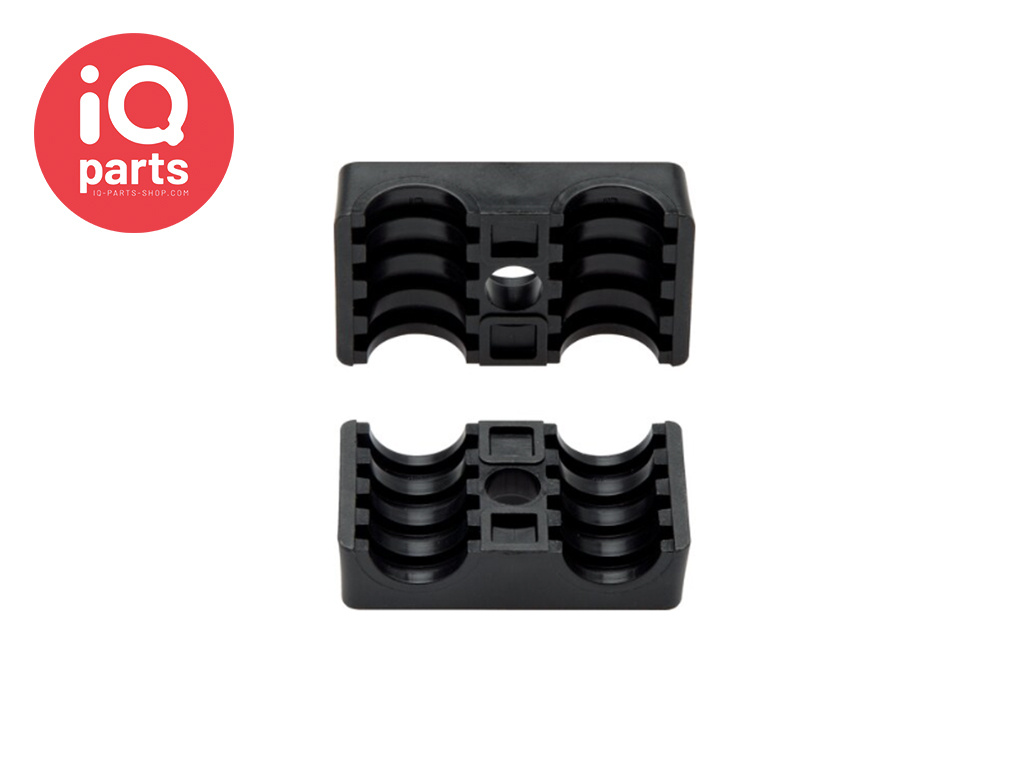

This pipe clamp consists of a polypropylene clamping part for 2 pipes, hoses and cables.
Clamps to DIN 3015 are a sophisticated modular system for fixing pipes with static and dynamic loads.
It offers several advantages:
- Damping of shocks, vibrations and noise, as well as compensation of pipe tolerances through the use of elastomer inserts
- High strength ensured by ribbed clamp bodies
- Secure overhead installation through clamping effect of the plastic parts
- Can be installed on C mounting rails, also available with weld struts
Assembly
All the pipe clamps in the HY-ROS range offer extremely impressive features: excellent resilience, optimal material resistance to tensile and tear stress, and high abrasion resistance.
The type of pipe clamp, size and material are selected depending on the application and type of stress (thermal / mechanical).
- For secure mounting, stable carrier units, such as base plates and mounting rails, are required according to the load requirements.
- The first clamp should be mounted directly after the threaded connection. This protects the connection from vibrations.
- Bends in the pipe should be clamped on both sides of the bend (pulsation direction must be taken into account).
- The prescribed material property limits must be observed.
- If valves are incorporated in the pipelines, it is recommended that support is provided in front of and behind these valves.
Material properties:
- Clamp: Polypropylene (0,9 g/c m3, -30ºC to 90ºC)
The pipe clamps consist of sizes 1 to 5. You can read the size of your item in the item number. For example HYD-GR-112-DOKP: the first number is the size, the last numbers indicate the outer diameter of the pipe.
You will also find information about the construction size in the PDF.
Product code:
GR 16 DOKP - GR 18 DOKP - GR 110 DOKP - GR 112 DOKP - GR 2137 DOKP - GR 214 DOKP - GR 215 DOKP - GR 216 DOKP - GR 2171 DOKP - GR 218 DOKP - GR 320 DOKP - GR 3213 DOKP - GR 322 DOKP - GR 325 DOKP - GR 4269 DOKP - GR 428 DOKP - GR 430 DOKP - GR 5337 DOKP - GR 535 DOKP - GR 538 DOKP - GR 540 DOKP - GR 542 DOKP
GTIN:
4050571331023 – 4050571331382 – 4050571329402 – 4050571329655 – 4050571332051 – 4050571332198 – 4050571332365 – 4050571332549 – 4050571332723 – 4050571332891 – 4050571334437 – 4050571334604 – 4050571334772 – 4050571334994 – 4050571336486 – 4050571336622 – 4050571336769 – 4050571338152 – 4050571338299 – 4050571338435 – 4050571338572 - 4050571338718
