CPC - HFCD171057 | Coupling Body | Polysulfone UV | hose barb 15,9 mm (5/8") - OUTLET
Brand:
CPC
| Article number: | CPC-HFCD171057-OUTL |
| SKU: | HFCD171057 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information

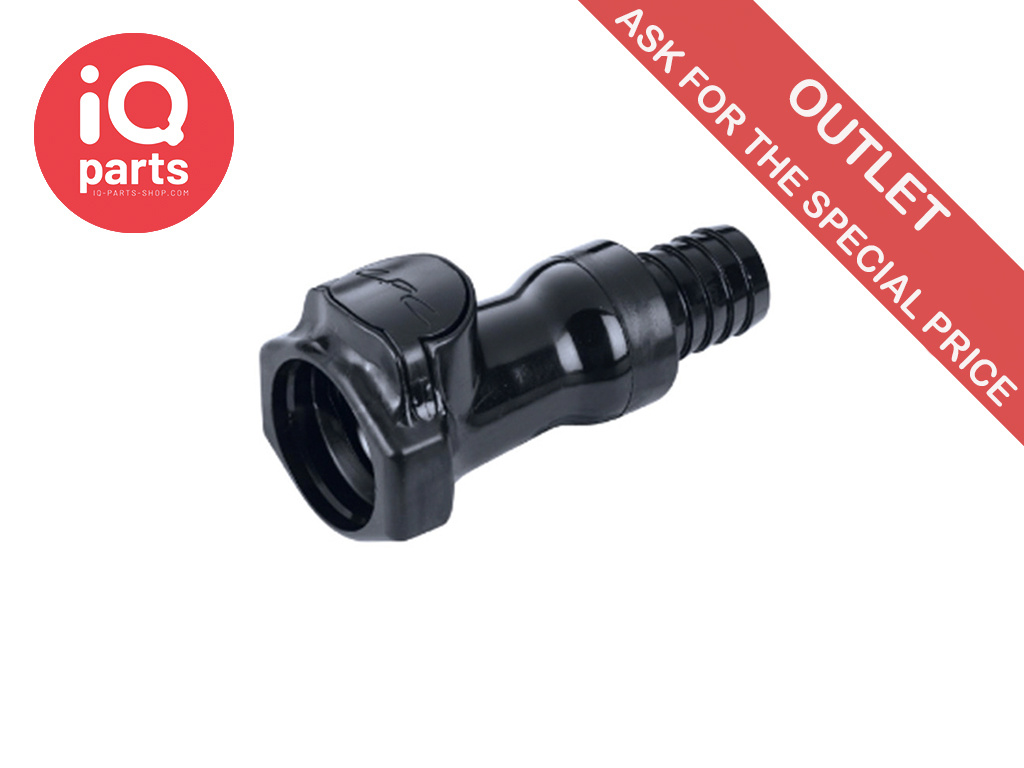

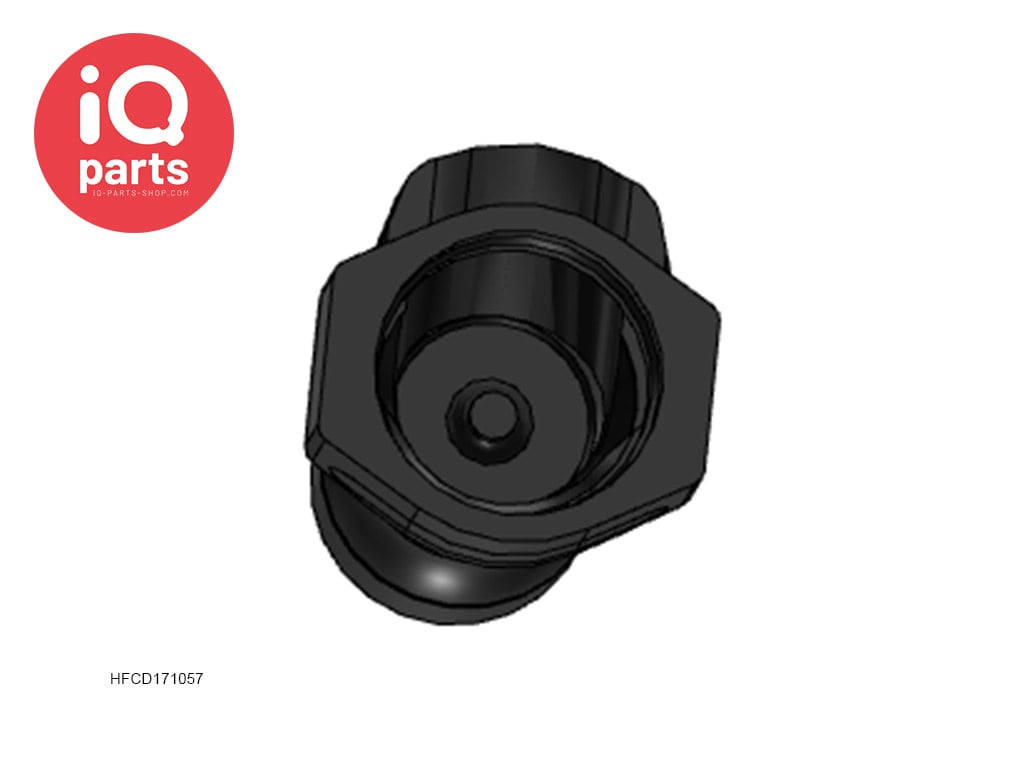

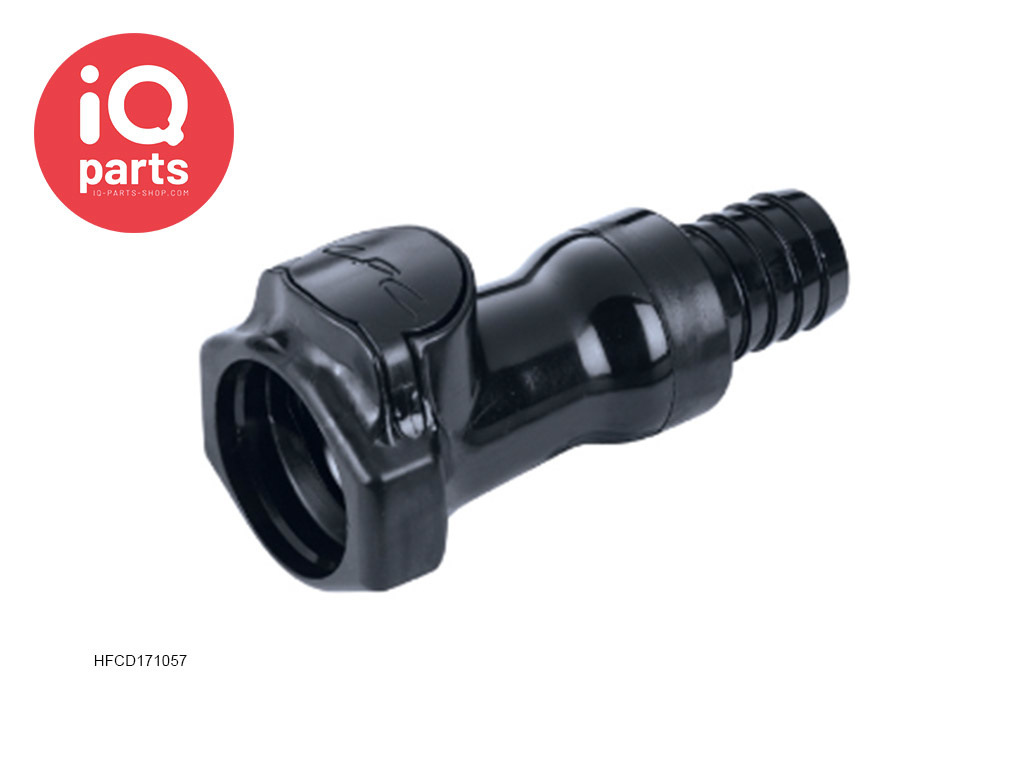

CPC - HFCD171057 | Coupling Body | Polysulfone UV | hose barb 15,9 mm (5/8")
This item is now available in our OUTLET Shop. Inquire about the great price via [email protected]!
Production date: May 2025
The price of our items remains at € 0, but the items are NOT free, but ON REQUEST!!!
NO rights can therefore be derived from the prices shown!!
HFC57 Series polysulfone couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.
They can operate in harsh environments in temperatures from -40°F to 280°F (-40°C to 138°C) and pressures from vacuum to 125 psi (8.6 bar). An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and exceptionally low spillage. Both series also add bulkhead panel mount, garden hose thread and Hastelloy® C spring options.
Characteristics and benefits:
- Polysulfone UV; Physically strong, autoclavable and UV resistant
- High efficiency valve; More flow and less spillage in a compact size
- Ergonomic design; Easy to grip, simple to operate
- Compatible; Mates with HFC12 and HFC35 couplings
Possible areas of application:
- Filtration of deionized water
- Bioprocessing systems
- Pharmaceutical production
- Dosing systems
- Packaged Bleach
- Particle counter
Materials:
- Main components and valve: Polysulfone UV
- Valve Spring and external springs and pin: AISI 316 Stainless Steel (W5)
- 0-ring and panel Mount ring: EPDM
- Female GHT gasket: FDA compliant EPDM
- Colour: Natural white with charcoal gray latch
Specifications:
- Working pressure: vacuum up to 8.6 bar (125 PSI)
- Operating Temperature: -40ºC to 138ºC (-40ºF to 280ºF)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 8,6 bar Vacuum |
| Temperature range: | -40° C tot +138° C |
| Material: | Polysulfone UV resistant |
| Size: | 3/8" NW |
| Connection: | In-line Coupling Body |
| Seal: | EPDM |
| Hose connection: | 15,9 mm (5/8") Inner diameter |
| Weight: | -- |
