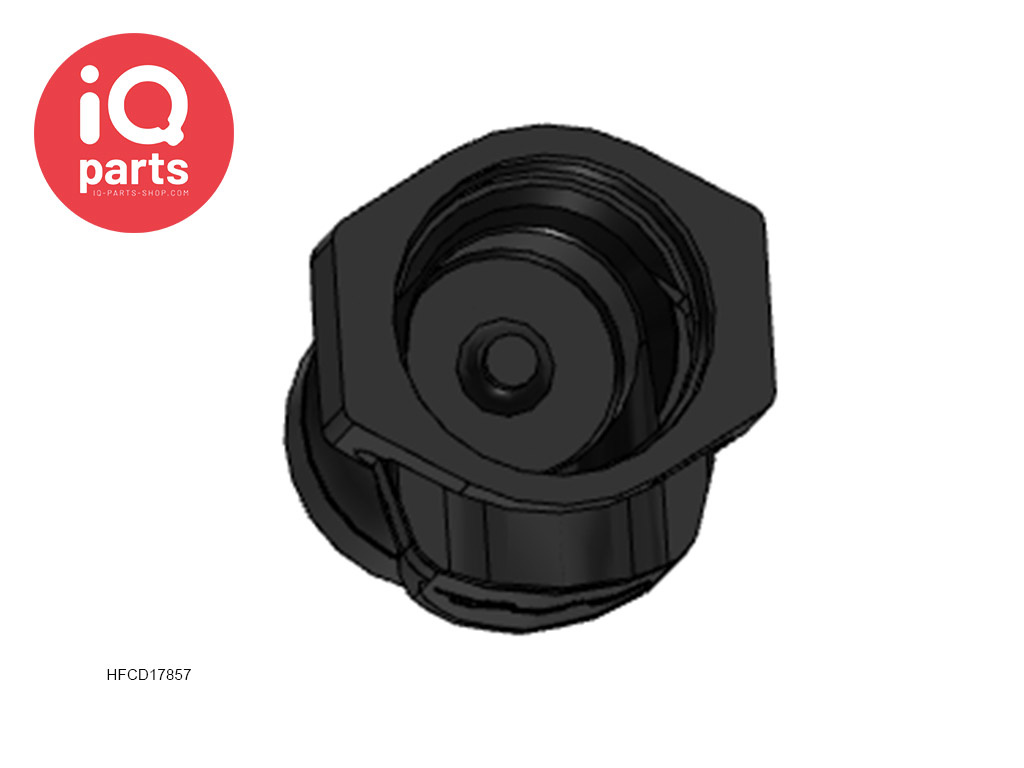

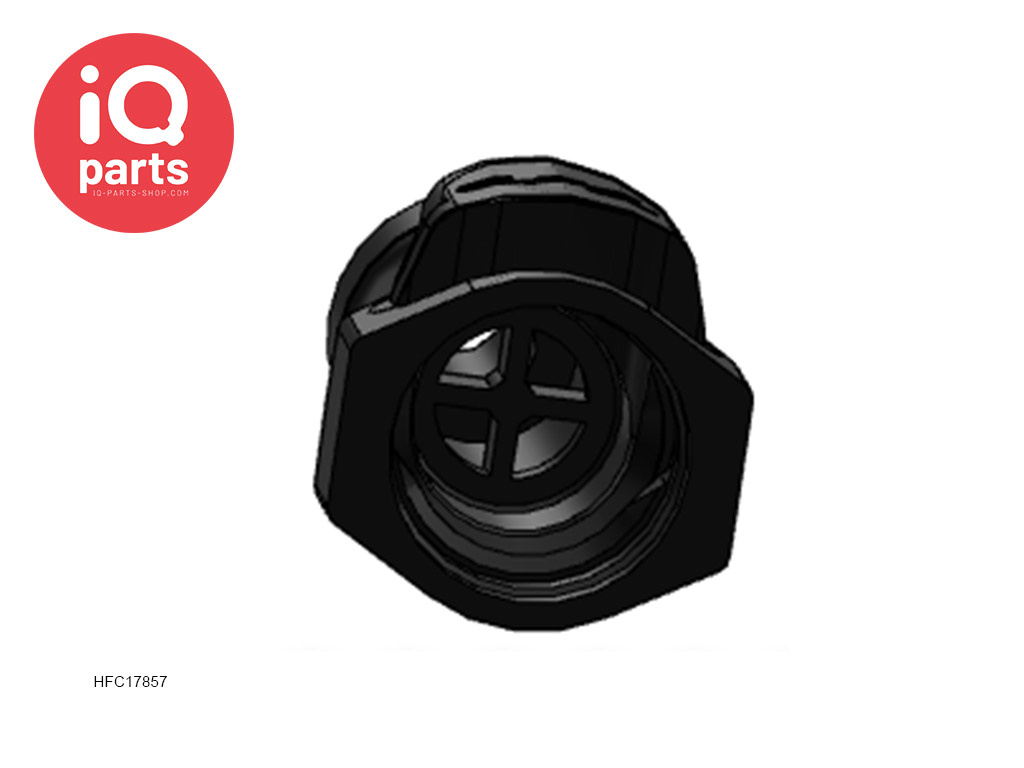

CPC - HFC17857 / HFCD17857 | Coupling Body | Polysulfone UV | hose barb 12,7 mm (1/2")

€29,61 Incl. tax
€24,47 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-HFCD17857
SKU: HFCD17857
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

CPC - HFC17857 / HFCD17857 | Coupling Body | Polysulfone UV | hose barb 12,7 mm (1/2")


An in-line coupling of CPC from the HFC57 series with a hose barb 12,7 mm (1/2"). The HFC57 series is the UV resistant variant of the HFC35 series. This quick coupling (female) ensures a leak-free seal and is made of Polysulfone. This coupling is available with a valve (HFCD17857) and without a valve (HFC17857). (Choose at the top right at "Make a choice:")

HFC57 Series polysulfone couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.
They can operate in harsh environments in temperatures from -40°F to 280°F (-40°C to 138°C) and pressures from vacuum to 125 psi (8.6 bar). An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and exceptionally low spillage. Both series also add bulkhead panel mount, garden hose thread and Hastelloy® C spring options.

Characteristics and benefits:
  • Polysulfone UV; Physically strong, autoclavable and UV resistant
  • High efficiency valve; More flow and less spillage in a compact size
  • Ergonomic design; Easy to grip, simple to operate
  • Compatible; Mates with HFC12 and HFC35 couplings

Possible areas of application:
  • Filtration of deionized water
  • Bioprocessing systems
  • Pharmaceutical production
  • Dosing systems
  • Packaged Bleach
  • Particle counter

Materials:
  • Main components and valve: Polysulfone UV
  • Valve Spring and external springs and pin: AISI 316 Stainless Steel (W5)
  • 0-ring and panel Mount ring: EPDM
  • Female GHT gasket: FDA compliant EPDM
  • Colour: Natural white with charcoal gray latch

Specifications:
  • Working pressure: vacuum up to 8.6 bar (125 PSI)
  • Operating Temperature: -40ºC to 138ºC (-40ºF to 280ºF)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 8,6 bar Vacuum
Temperature range: -40° C tot +138° C
Material: Polysulfone UV resistant
Size: 3/8" NW
Connection: In-line Coupling Body
Seal: EPDM
Hose connection: 12,7 mm (1/2") Inner diameter
Weight: --
CPC CPC - HFC17857 / HFCD17857 | Coupling Body | Polysulfone UV | hose barb 12,7 mm (1/2")
