CPC - HFC171012 / HFCD171012 | Coupling Body | Polypropylene | Hose barb 15,9 mm (5/8")

€24,27 Incl. tax
€20,06 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-HFCD171012
SKU: HFCD171012
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

CPC - HFC171012 / HFCD171012 | Coupling Body | Polypropylene | Hose barb 15,9 mm (5/8")

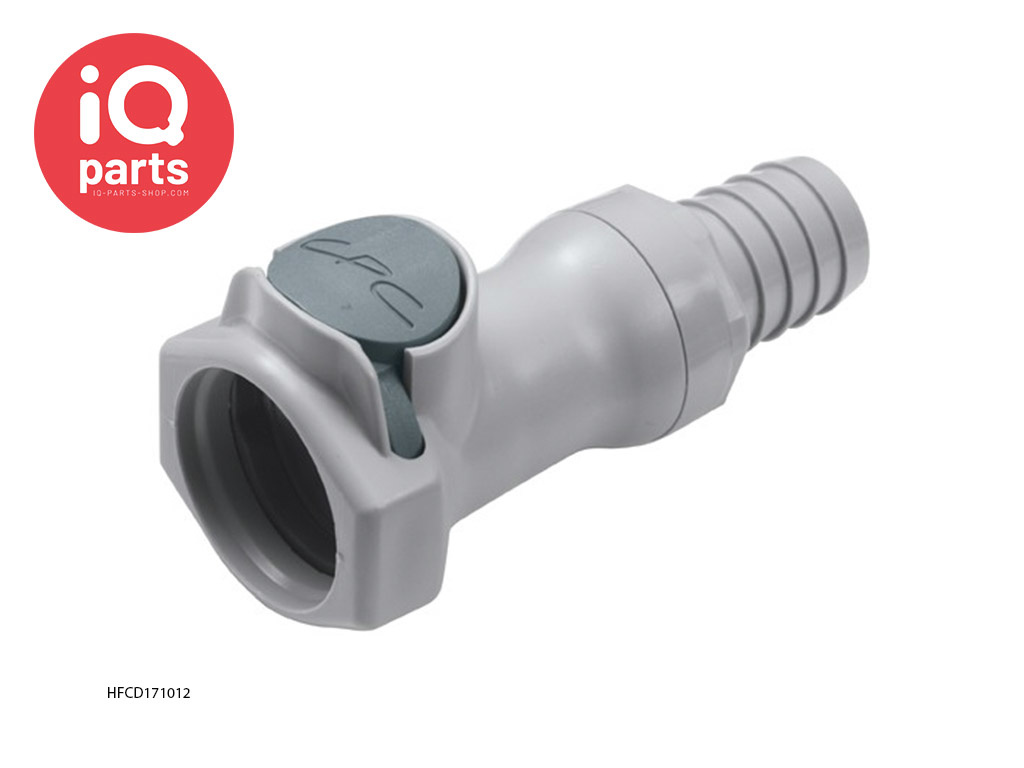

An in-line coupling of CPC from the HFC12 series with a 15,9 mm hose barb. This quick coupling (female) ensures a leak-free seal and is made of POLYPROPYLENE. This coupling is available with a valve (HFCD171012) and without a valve (HFC171012). (Choose at the top right at "Make a choice:")

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.

Characteristics and benefits:
  • High performance valve Higher; flow rates in a compact size
  • Ergonomic design; Easy to grip, easy to use
  • Polypropylene material; Chemically resistant and sterilizable with gamma radiation
  • Compatibility; Can be combined with HFC35 and HFC57 series couplings

Possible areas of application:
  • Chemicals for developing photos
  • Battery filling systems
  • Air mattress systems
  • Sprinkler systems
  • Recycling of antifreeze
  • Heating and cooling systems

Materials:
  • Main components and valve: Polypropylene
  • Valve Spring and external sprins and pin: AISI 316 Stainless Steel (W5)
  • 0-ring: EPDM
  • Colour: Gray

Specifications:
  • Working pressure: vacuum up to 4,2 bar (60 PSI)
  • Operating Temperature: 0ºC to 71ºC (32ºF to 160ºF)

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 4,2 bar Vacuum
Temperature range: 0° C tot +71° C
Material: Polypropylene
Size: 3/8" NW
Connection: In-line Coupling Body
Seal: EPDM
Hose connection: 15,9 mm (5/8") Inner diameter
Weight: --
CPC CPC - HFC171012 / HFCD171012 | Coupling Body | Polypropylene | Hose barb 15,9 mm (5/8")
