HCL Smart® Protector | SP-100 | PA66 / PK / PA12 / PPS
Brand:
HCL
| Article number: | HCL-SP-100-PA66 |
| SKU: | HCL-SP-100-PA66 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information

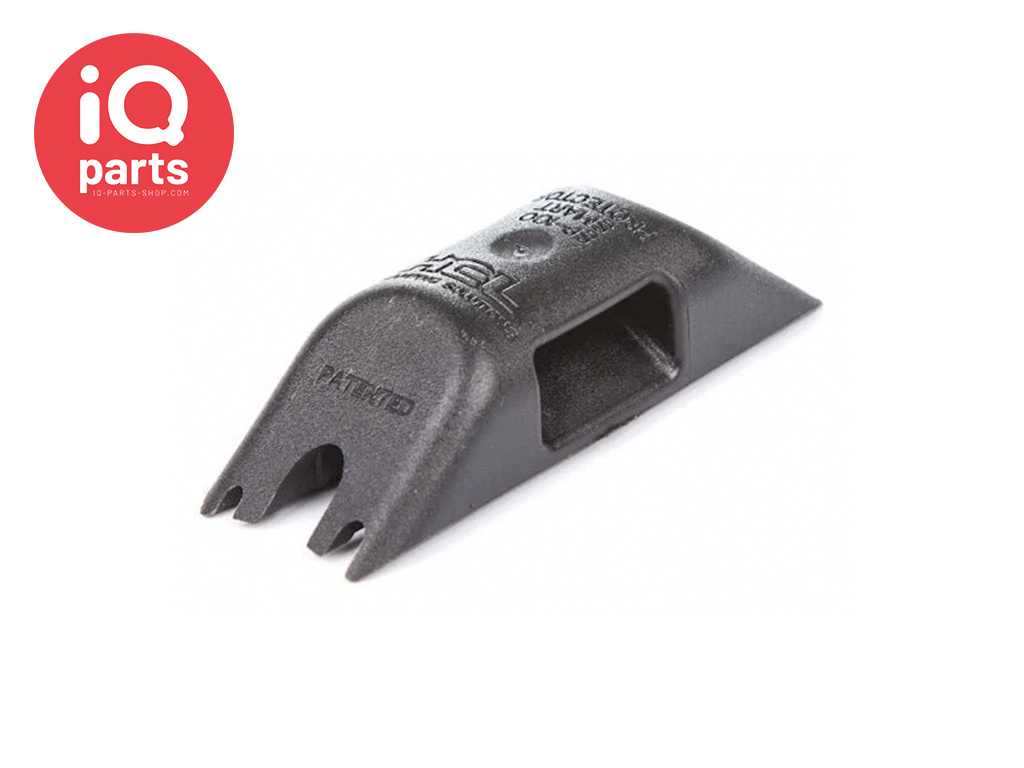

HCL Smart® Protector | SP-100 | PA66 / PK / PA12 / PPS
This Smart® Protector SP-100 from HCL is suitable for:
- 1x 1/4 inch control line
- 1x 1/8 inch control line
- 1x 2 mm fiber optic cable
Secured with 20 mm (3/4”) Smart Tie or Smart Band Compact
For other specifications, see the PDF below.
The SP-100 is available in various material types. Select the material that meets your requirements in the menu at the top right.
You can choose from:
- PA66 (Polyamide 6.6, Nylon): Max Temp = 125ºC (257ºF)
- PK (Polyketon: Max temp = 125ºC (257ºF)
- PA12 (Polyamide 12, Nylon) Max temp = 100ºC (212ºF)
- PPS (polyphenylene sulfide): Max temp = 175ºC (347ºF)
General information about the Smart® Protector from HCL:

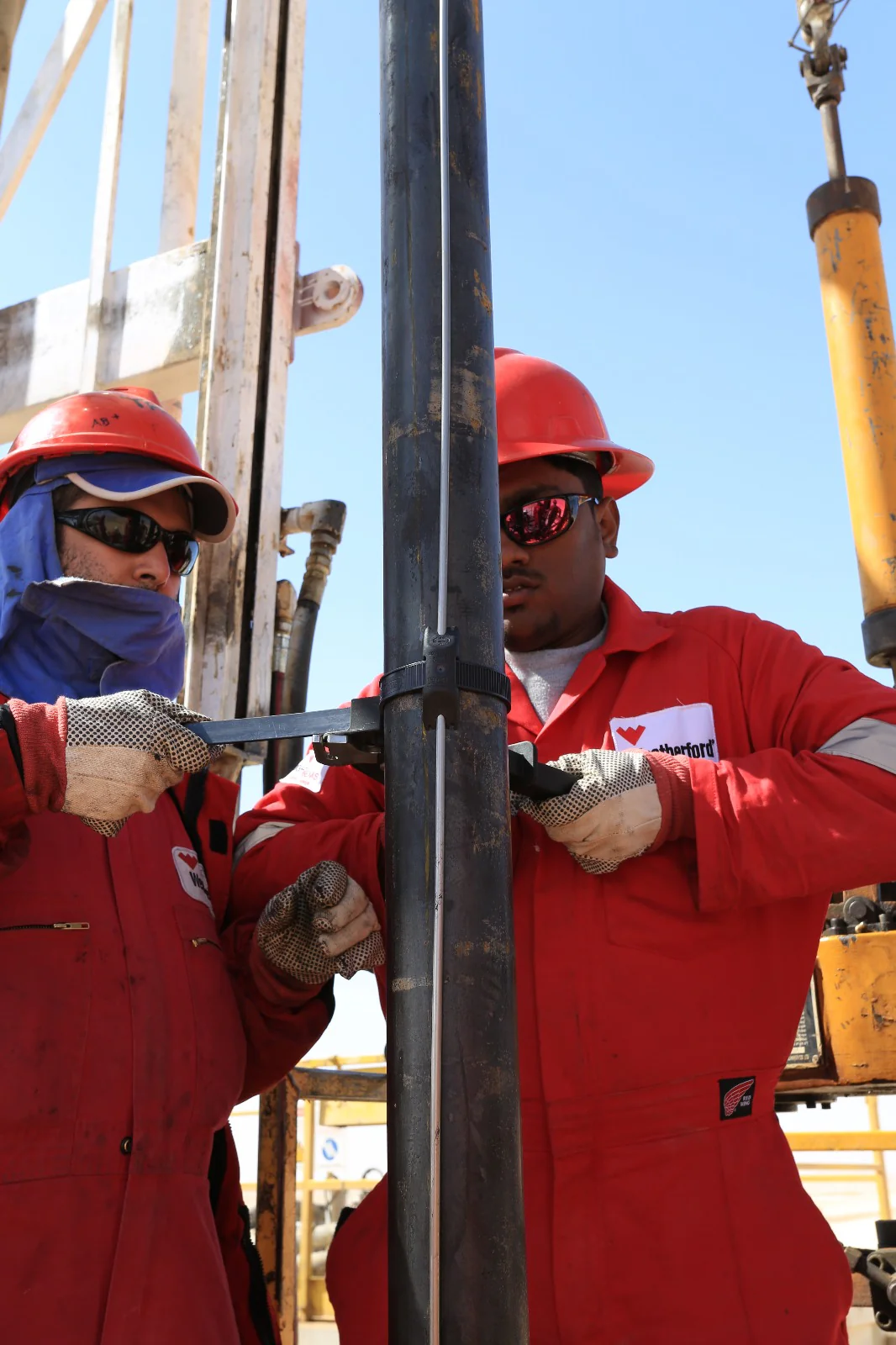

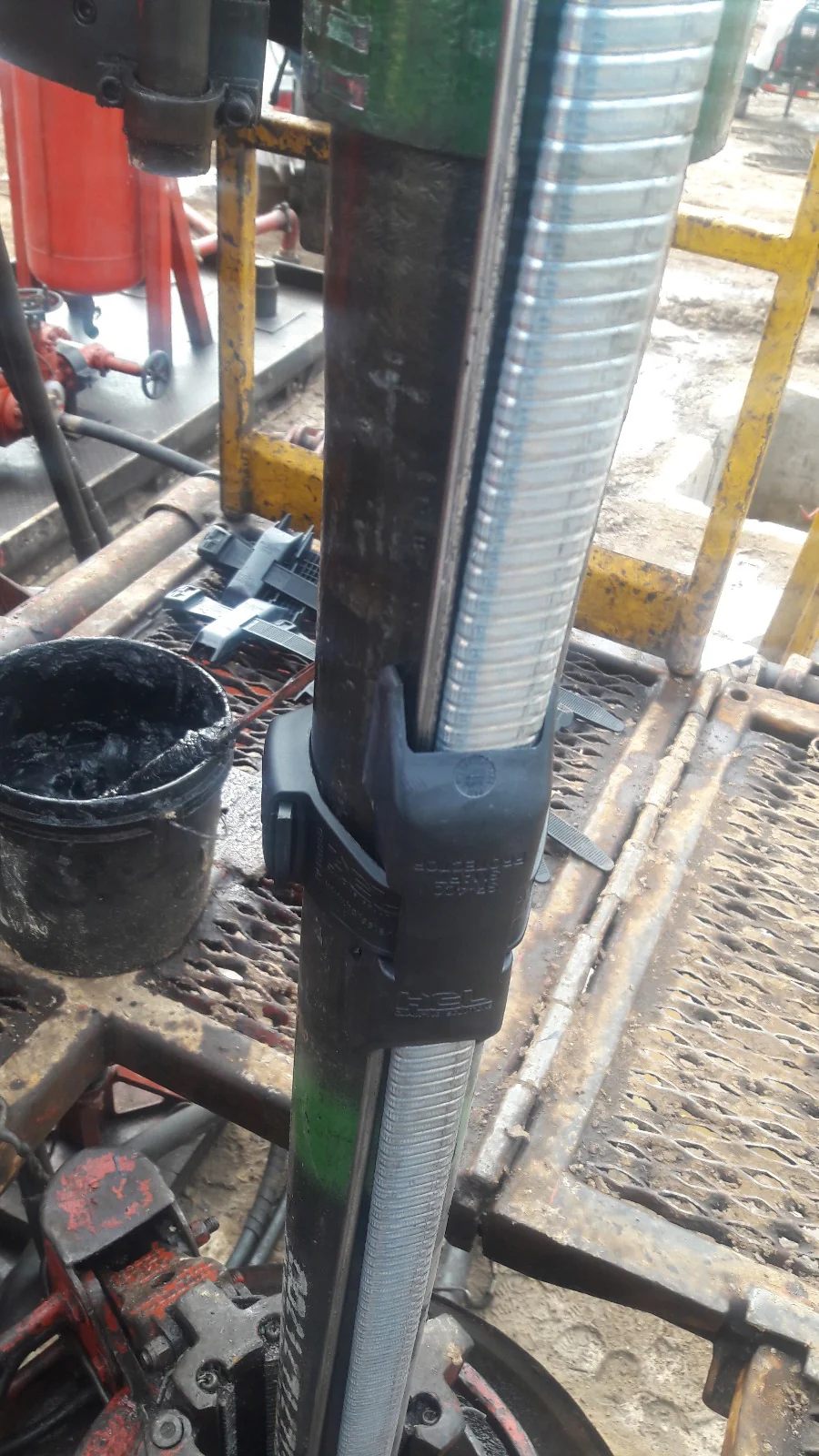

A range of polymer cable protectors for use in Downhole, subsea and flow line applications.
The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.
The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.
Key Features:
- High temperature resistance up to 175ºC (347ºF)
- Fits any tubing diameter or coupling length

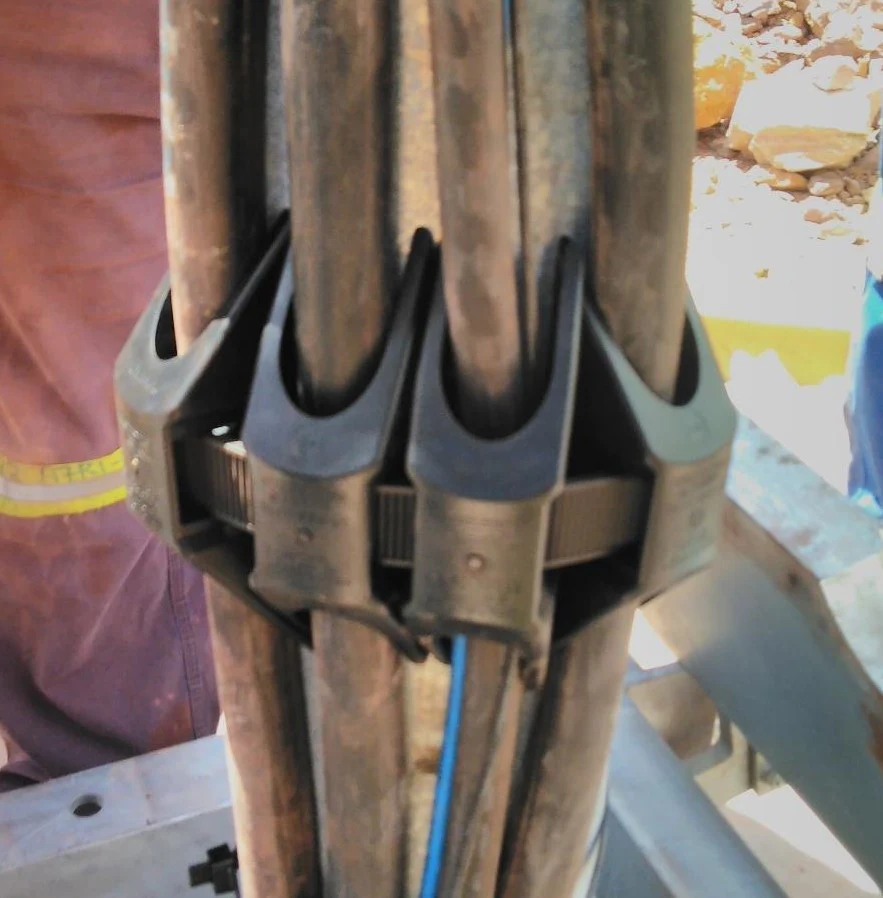

- Can be used for multi-line installations
- Prevents cable snagging
- Low profile and low friction coefficent
- Available for many different cable configurations
- Will not hang in BOP stack
- Easy to mill
Product code:
SP-100-PA66 - SP-100-PK - SP-100-PA12 - SP-100-PPS
