HCL - Ezybond® BSI951:2009 | Nylon Earth Bond Clamp

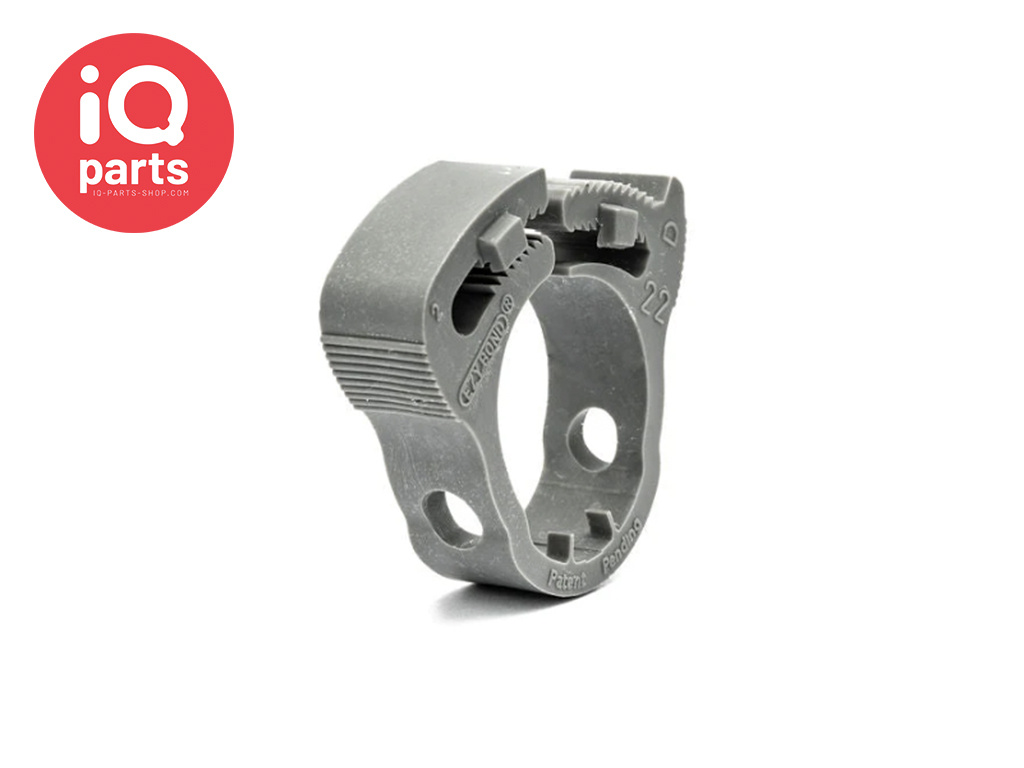

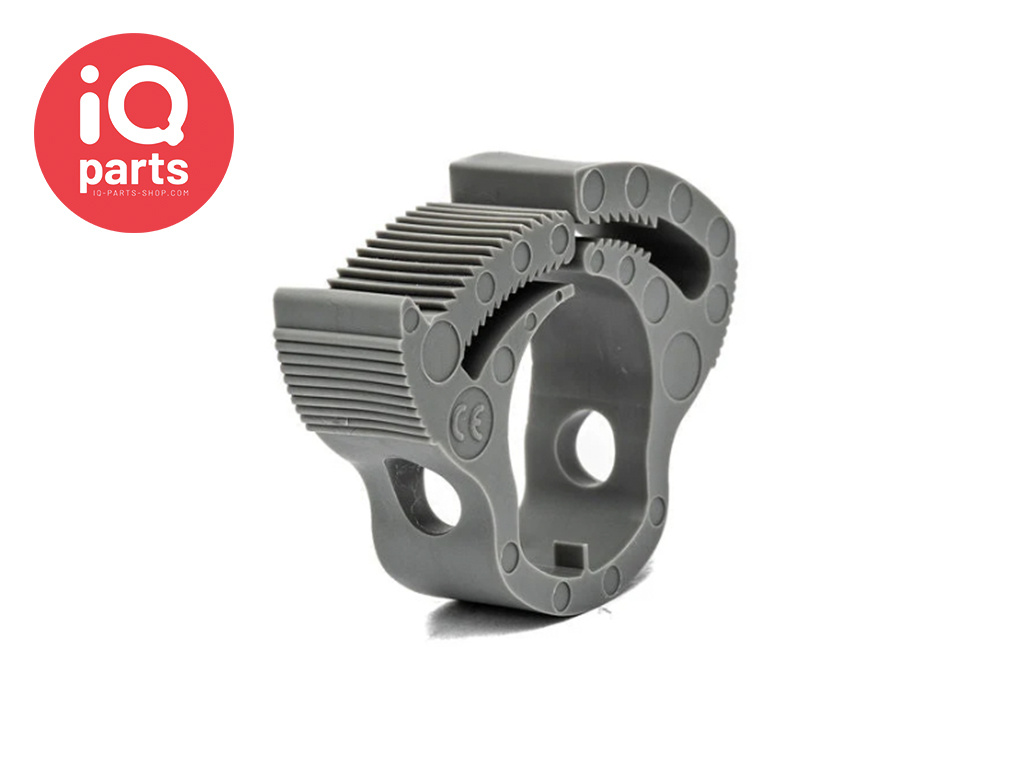

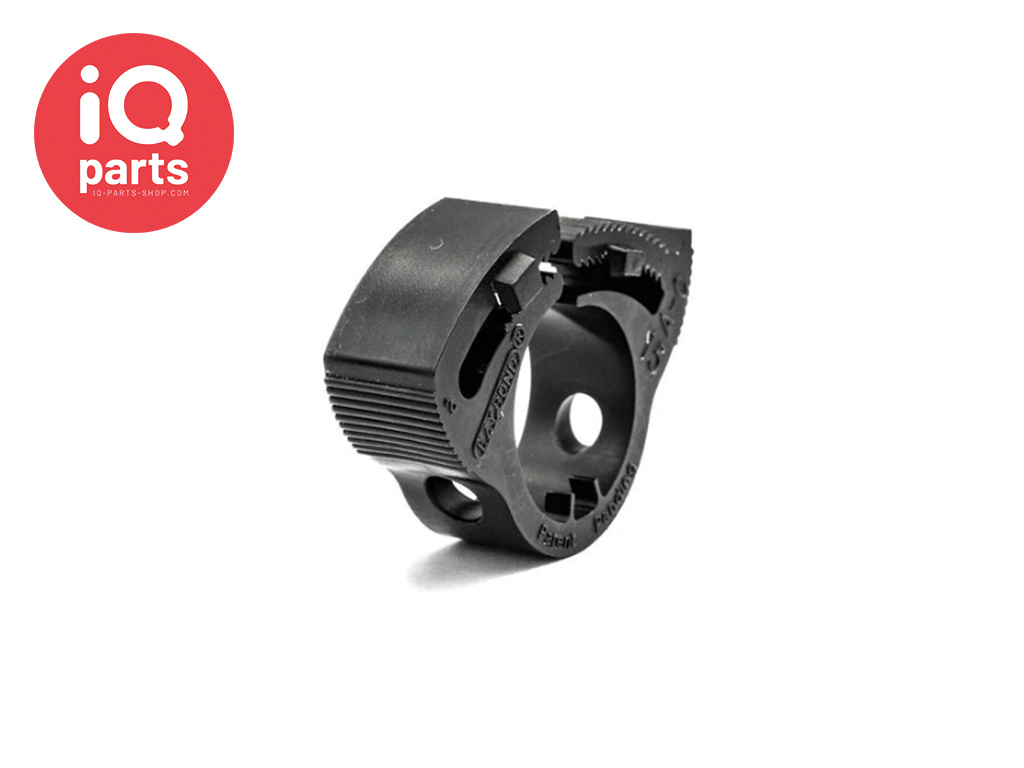

The Ezybond ® Earth clamp conforms to BS951-2009. It is quick and easy to assemble, with an innovative design, including a double grip jaw, conductor guide vanes and security locking tabs. Manufactured in Nylon 6.6, it also has excellent mechanical, chemical, heat resistant and self extinguishing properties. The Ezybond ® is the perfect Earth Bond Clamping solution.

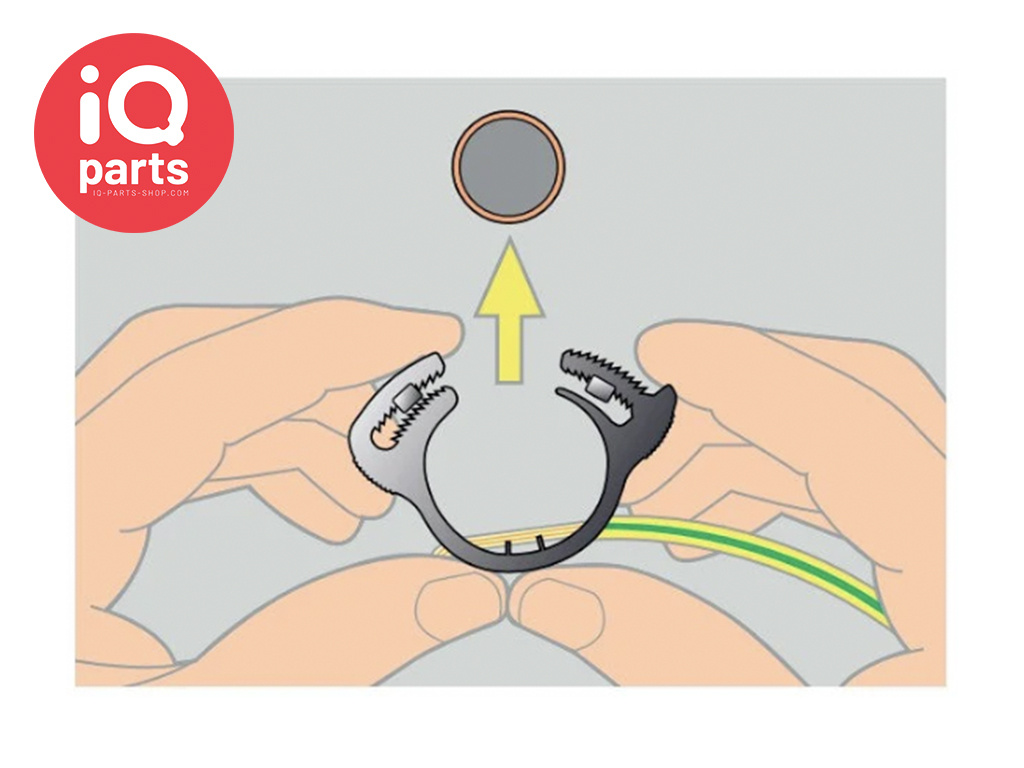

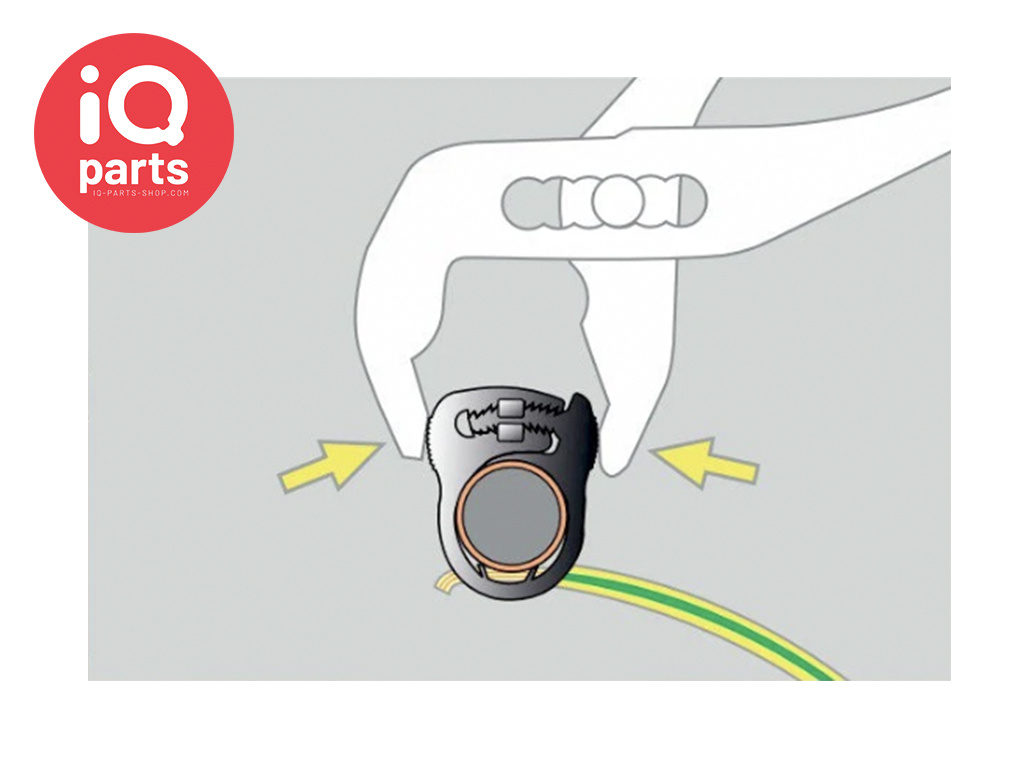

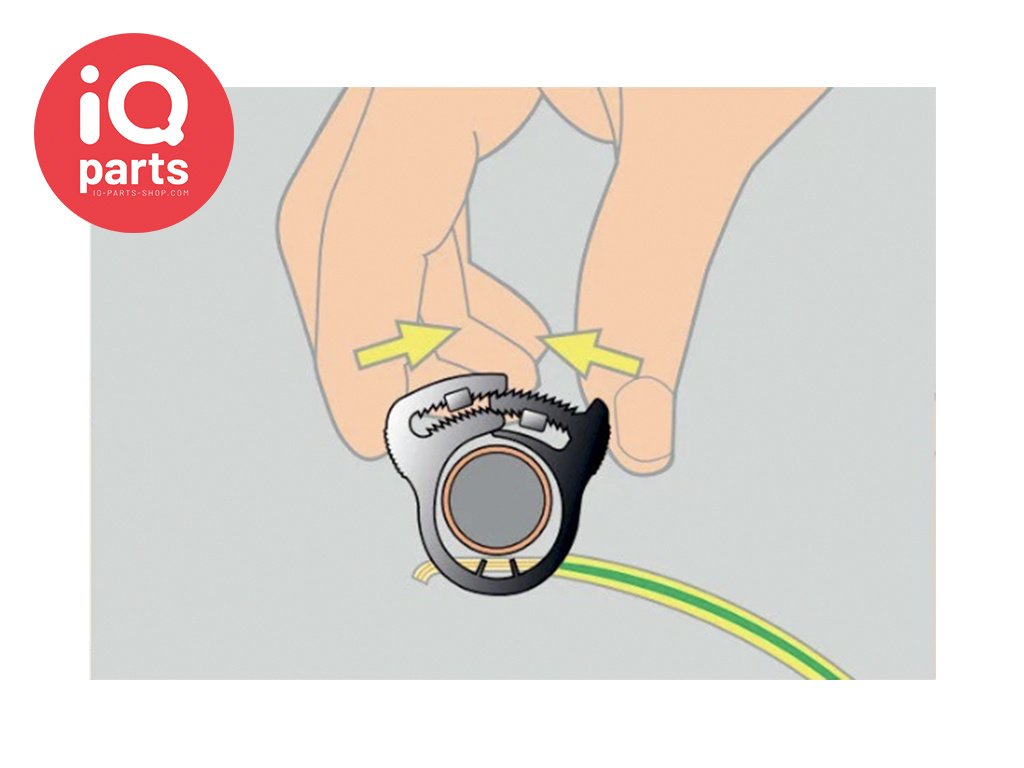

Ezybond ® offers a much faster installation time when compared to standard Earth clamps. The resulting cost reduction is highly advantageous to all users, ranging from Electricians to OEMs.

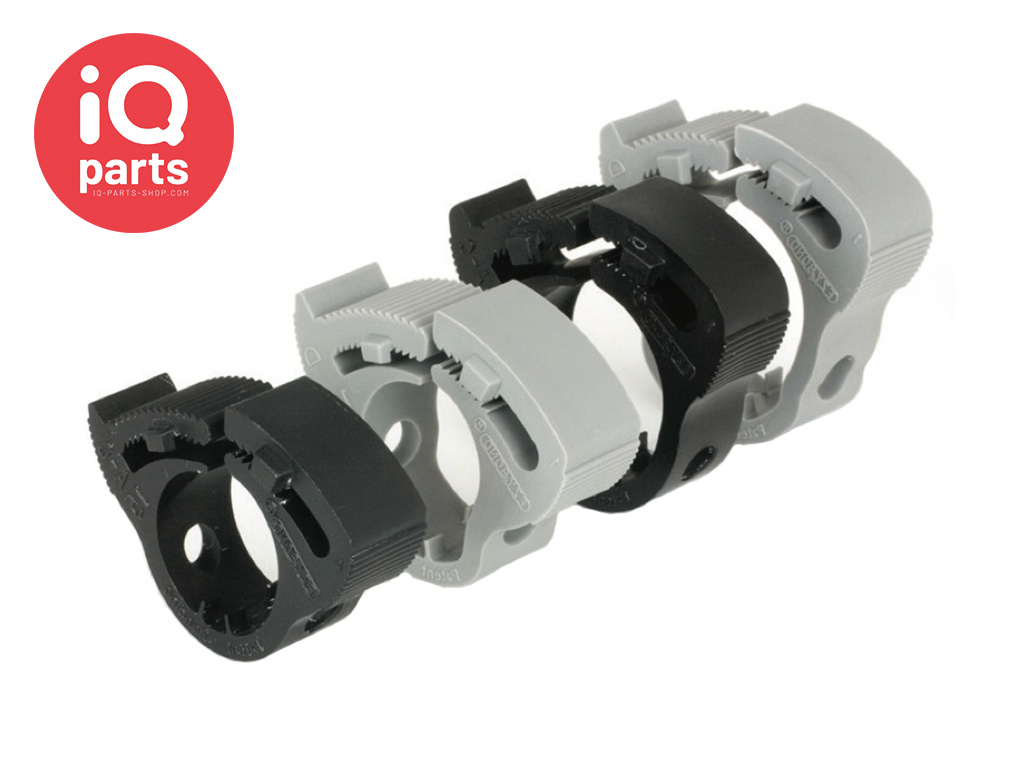

Sizes:
- EZB-15AC: for 15 mm pipe diameter and 2.5-6.0 mm thread thickness (Black)
- EZB-22AC: for 22 mm pipe diameter and 2.5-6.0 mm thread thickness (Black)
- EZB-15D: for 15 mm pipe diameter and 10.0 mm thread thickness (Gray)
- EZB-22D: for 22 mm pipe diameter and 10.0 mm thread thickness (Gray)
Material information:
- Clamp: Heat/UV Stabilised ROHS compliant Nylon 6.6.
- RoHS Compliant: Yes
Advantages:
- More than halves installation time
- Continuous uniform metal contact
- No screws or loose parts
- ASTA approved electrical tests to BSI951:2009
- Safe to fit – No sharp edges
- Increased security
- Cross-bonding becomes a simple operation with continuous uniform contact
- Always correct size for pipe fitted
- Manufactured according to ISO 9001-2015
- Corrosion resistant – can be used in damp environments
View the PDF for all specifications of all sizes.
Product code:
EZB15AC - EZB22AC - EZB15D - EZB22D
5033717003069 - 5033717003045 - 5033717003052 - 5033717003038
Specifications
| Bolt: | -- |
| Bandwidth: | 11.9 or 12.9 mm |
| Tightening torque (Maximum): | -- |
