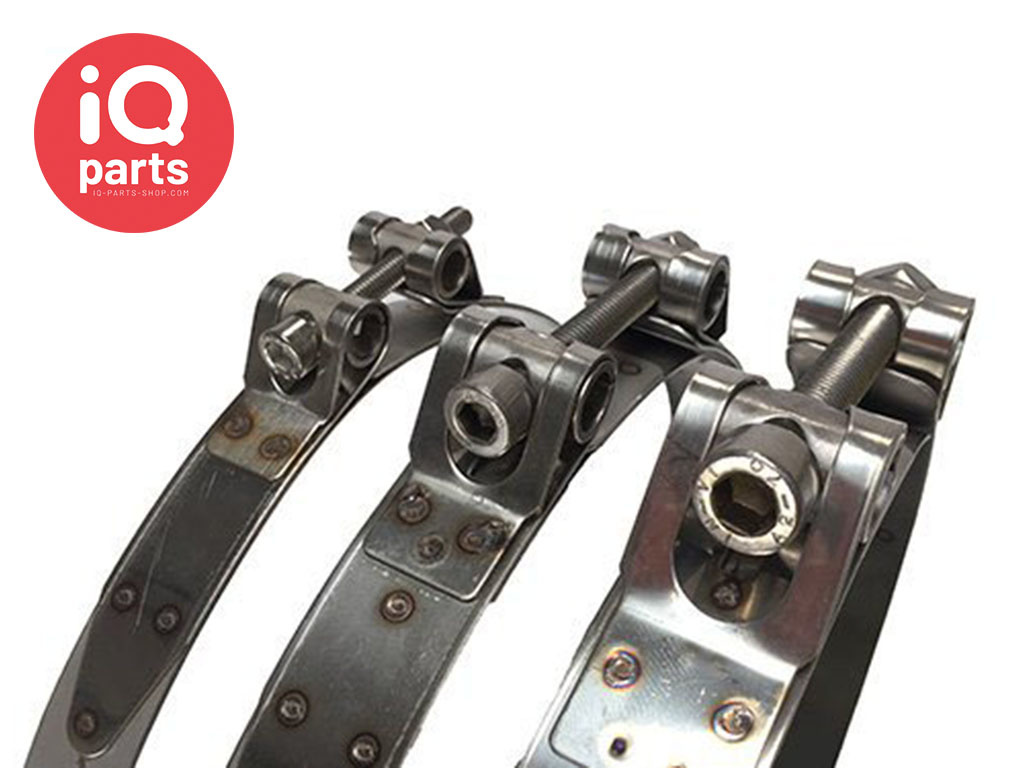

IQ-Parts GBS Hose Clamp tailor made | W4 (AISI 304) | single bolt | 20 - 25 - 30 mm width

€27,83 Incl. tax
€23,- Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 Piece in stock
Delivery time: 1 week after order date
Article number: IQP-GBS-W4-1B-20-0100-0400
SKU: IQP-GBS-W4-1B-20-0100-0400
  • 2 year warranty
  • Delivery time: 1 week after order date
Information

IQ-Parts GBS Hose Clamp tailor made | W4 (AISI 304) | single bolt | 20 - 25 - 30 mm width


This heavy duty hose clamp with bridge section is used in applications where the hose clamp must meet strict requirements. The clamp is very suitable for applications with suction and discharge hoses with a high hardness and hoses with plastic or steel inserts. The GBS clamps can withstand high belt tension forces.

Quality:
  • Band, bridge, bolt and nuts = W4 (AISI 304, 1.4301)

This clamp is available in 3 different band widths:
  • 20 mm width
  • 25 mm width
  • 30 mm width

In the drop-down menu, choose the bandwidth and enter the desired diameter (At least 150 mm). If you need a diameter greater than 400 mm or if you want more than 2 bolts, please contact our sales department.

The diameter can be changed by adjusting the bolt:
  • 20 mm wide: +/- 2.5 mm, bolt is M6
  • 25 mm wide: +/- 4.0 mm, bolt is M8
  • 30 mm wide: +/- 5.0 mm, bolt is M10

Look at RELATED PRODUCTS for the following variants:
  • W2 quality (AISI 430, 1,4016) and 2 bolts (Galvanised steel)
  • W2 quality (AISI 430, 1.4016) and 1 bolt (Galvanised steel)
  • W4 quality (stainless steel 304, 1.4301) and 2 bolts
  • Rubber C-profile

Applications
  • Engineering
  • Chemischel industry
  • Food industry
  • Railways
  • Construction machinery
  • Pump and filter systems



This is a product that is tailor-made for you. Exchange is therefore not possible!

Specifications
Bolt: M6 / M8 / M10
Bandwidth: 20/25/30 mm
Tightening torque (Maximum): 30 - 50 Nm (Max.)
IQ-Parts IQ-Parts GBS Hose Clamp tailor made | W4 (AISI 304) | single bolt | 20 - 25 - 30 mm width
