STIF - EURAC® L | Tube Coupling | SBR gasket | 100 mm
Brand:
STIF
| Article number: | STIF-L100 |
| SKU: | STIF-L100 |
- 2 year warranty
- Delivery time: 1 week after order date
Information

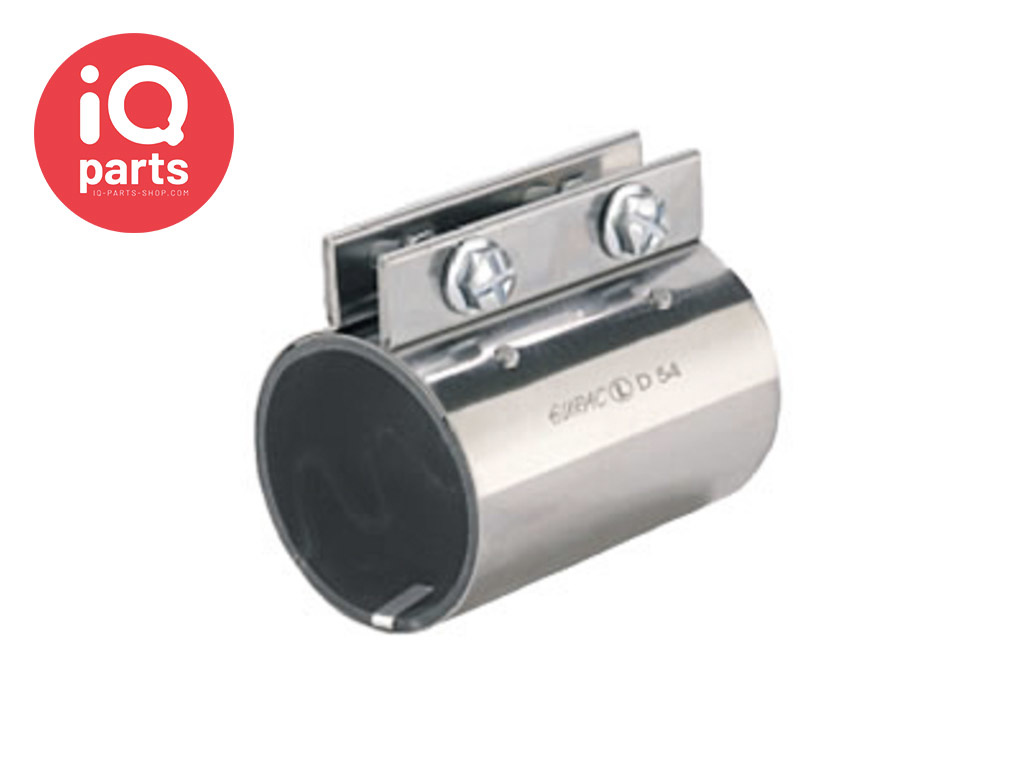

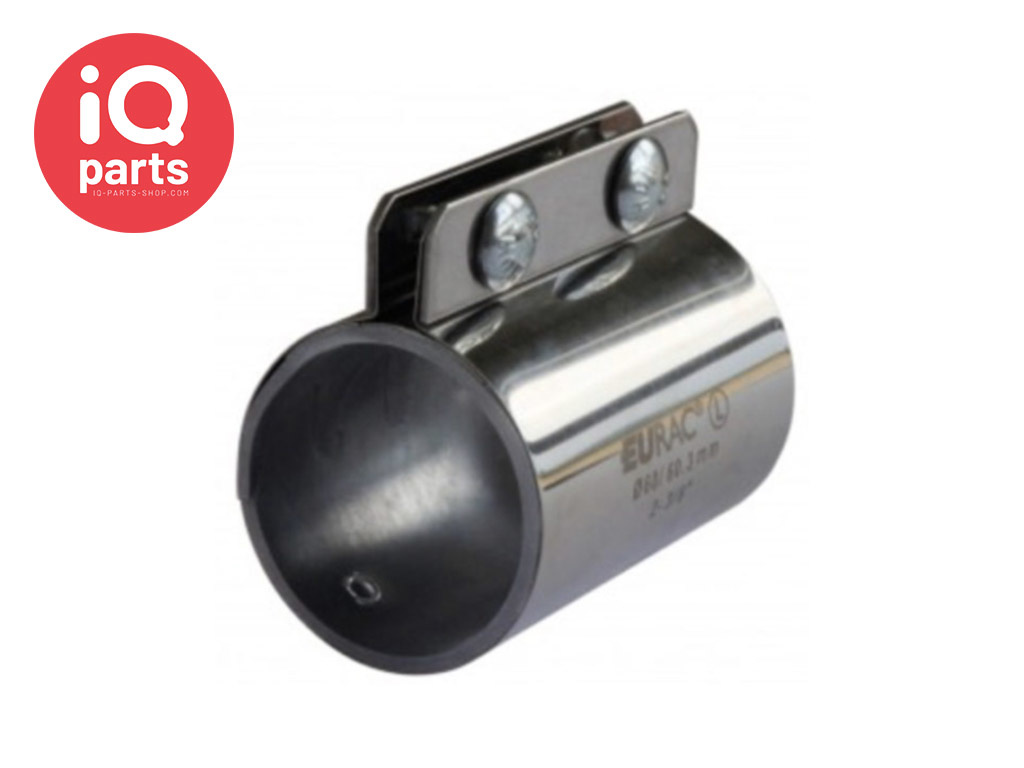

STIF - EURAC® L | Tube Coupling | SBR gasket | 100 mm
The EURAC® L is a 100 mm long pipe coupling that is extremely suitable for the coupling of pipes in the vacuum or pressure transport of bulk goods in light concentration and light bulk goods.
The pipe coupling is supplied as standard with a black SBR gasket (-30º / +80º C), two M8 bolts (galvanized) and a conductivity strip. The outside skin of the coupling is made of stainless steel 430 (W2)
This EURAC L can be supplied with various options:
- All stainless steel 304L (W4)
- White NBR (FDA) gasket -30º / +110º C
- Silicone (VMQ) gasket -65º / +225º C
- Blue Silicone gasket -40º - +180º C
- Viton (FKM) gasket -20º / +250º C
- Coupling with clamp and side bars (Gives extra strength to the coupling, see PDF)
- Conductive protecting ring in stainless steel 304L
- Copper conductivity strip (CU - A1)
- Coupling for 2 pipes of different diameters
- Quick release: full or partial, for quick cleaning (EURAC Flex)
Available sizes:
The following diameters are available:
*= longer delivery time
| 38,1 mm | 40 mm | 45 mm* | 50/50,8 mm |
| 54 mm* | 55 mm* | 60/60,3 mm | 63,5 mm |
| 65 mm | 70 mm | 75 mm* | 76,1 mm |
| 80 mm | 82 mm* | 84 mm* | 85 mm* |
| 88,9 mm | 95 mm* | 100 mm* | 101,6 mm |
| 104 mm* | 105 mm* | 108 mm* | 114,3 mm* |
You can only order this product by sending an email to our sales department: [email protected]
Please provide at least the following information with your order:
Desired diameter:
The number per diameter:
Which liner:
Additional options, such as stabilizer, grounding or other metal type, etc. (See Options above)
For questions, please contact our sales department: [email protected]
Or call +31(0) 252 624 126.
