IQ-Parts DVK 6 Tube Clamp connector | ALU | Rubber gasket | 150 mm

Brand: IQ-Parts

| Create your own review

IQ-Parts IQ-Parts DVK 6 Tube Clamp connector | ALU | Rubber gasket | 150 mm

€34,42 Incl. tax

€28,45 Excl. tax

* Excl. tax | Excl. Shipping costs

Now 0 Piece in stock
Delivery time: 1 week after order date

Make a choice:

Rubber Gasket:

Add to cart

Add to wishlist

Add to comparison list

Article number:	IQP-403835H02
SKU:	IQP-403835H02

2 year warranty
Delivery time: 1 week after order date
Customer service 09:00 - 17:00

Share this product

Information

IQ-Parts DVK 6 Tube Clamp connector | ALU | Rubber gasket | 150 mm

The aluminum tube Clamp connectors of the DVK-6 type are designed for fast and safe use in the field of suction transport, also known as vacuum transport.In addition to their economical and faster installation, they are particularly impressive due to the following properties:

Suitable for outer diameters from 33.7 to 110.0 mm
Installation length of 150 (100 mm available)
Vacuum-tight (up to max. 0.8 bar)
Pressure shock resistant (up to max. 6 bar)
Aluminum metal sheath (AlMgSi 0.5 F22)
Solid aluminum clamping jaws (double locked)
3 Screws M8 with solid threaded strips
Extremely easy to assemble due to the round design
Earthing strip, to prevent static electricity

You can choose from:

Diameter range from 38 mm to 110 mm

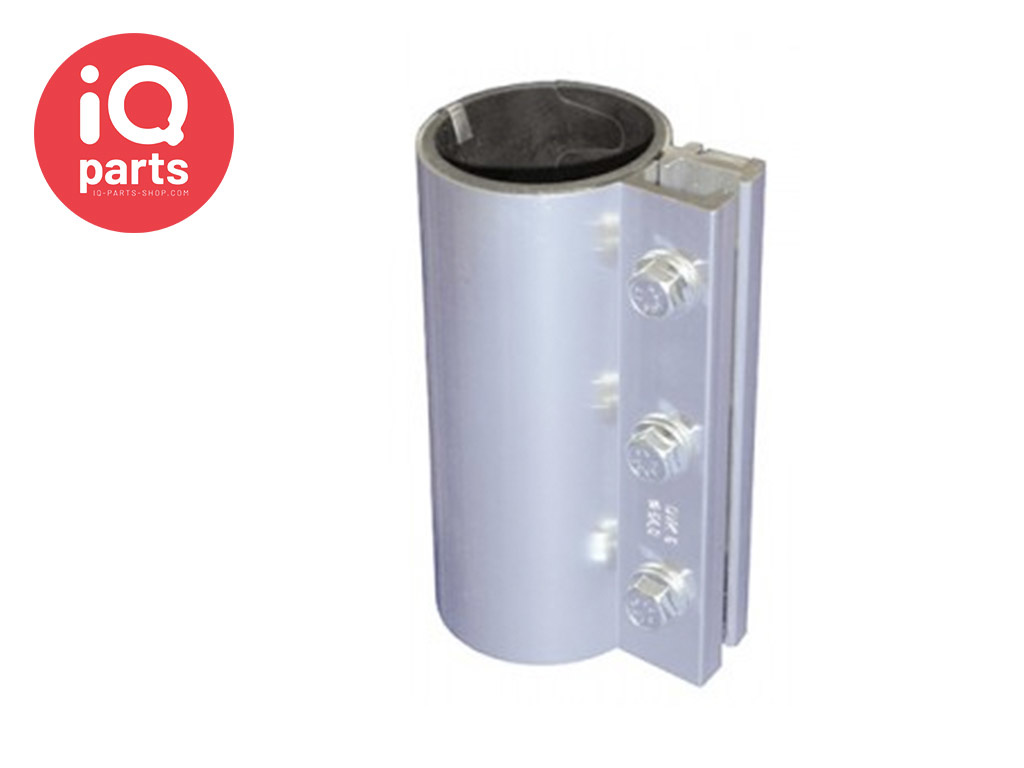

Black natural rubber gasket (temperature resistant from -20°C to +60°C)

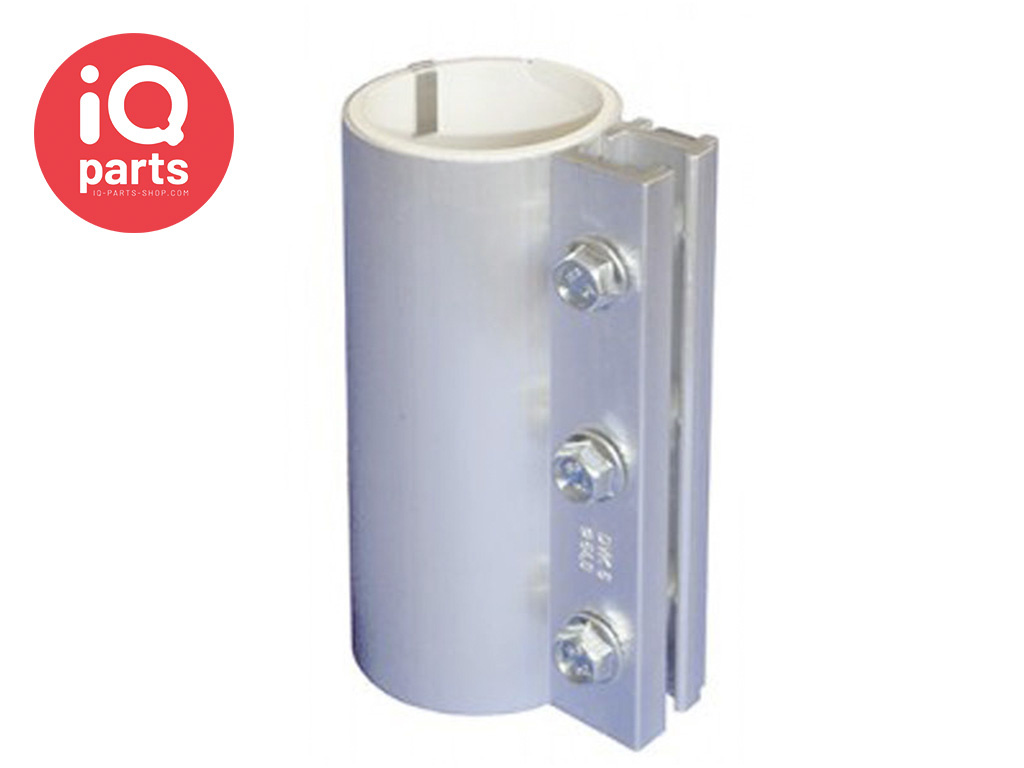

White, food-safe and temperature-resistant EPDM gasket (from -30°C to +120°C)
Optionally also available with silicone gasket (- 60°C to +200°C)

See the PDF for more technical information.

If you would like other dimensions or gaskets (Nitrile/Silicone/Viton), please contact our sales department: [email protected]

Productcode:

403835H01 - 404035H01 - 404535H01 - 404835H01 - 405035H01 - 405135H01 - 405435H01 - 406035H01 - 406335H01 - 406535H01 - 407035H01 - 407635H01 - 408035H01 - 408435H01 - 408835H01 - 410035H01 - 410135H01 - 410435H01 - 410835H01 - 411035H01

403835H02 - 404035H02 - 404535H02 - 404835H02 - 405035H02 - 405135H02 - 405435H02 - 406035H02 - 406335H02 - 406535H02 - 407035H02 - 407635H02 - 408035H02 - 408435H02 - 408835H02 - 410035H02 - 410135H02 - 410435H02 - 410835H02 - 411035H02

403835H05 - 404035H05 - 404535H05 - 404835H05 - 405035H05 - 405135H05 - 405435H05 - 406035H05 - 406335H05 - 406535H05 - 407035H05 - 407635H05 - 408035H05 - 408435H05 - 408835H05 - 410035H05 - 410135H05 - 410435H05 - 410835H05 - 411035H05

403835H06 - 404035H06 - 404535H06 - 404835H06 - 405035H06 - 405135H06 - 405435H06 - 406035H06 - 406335H06 - 406535H06 - 407035H06 - 407635H06 - 408035H06 - 408435H06 - 408835H06 - 410035H06 - 410135H06 - 410435H06 - 410835H06 - 411035H06
