CPC - DQPROFIL01 | Air filter | Polypropylene | 70 micron, Coupler Vent Port

€15,34 Incl. tax
€12,67 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-DQPROFIL01
SKU: DQPROFIL01
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information
CPC - DQPROFIL01 | Air filter | Polypropylene | 70 micron, Coupler Vent Port

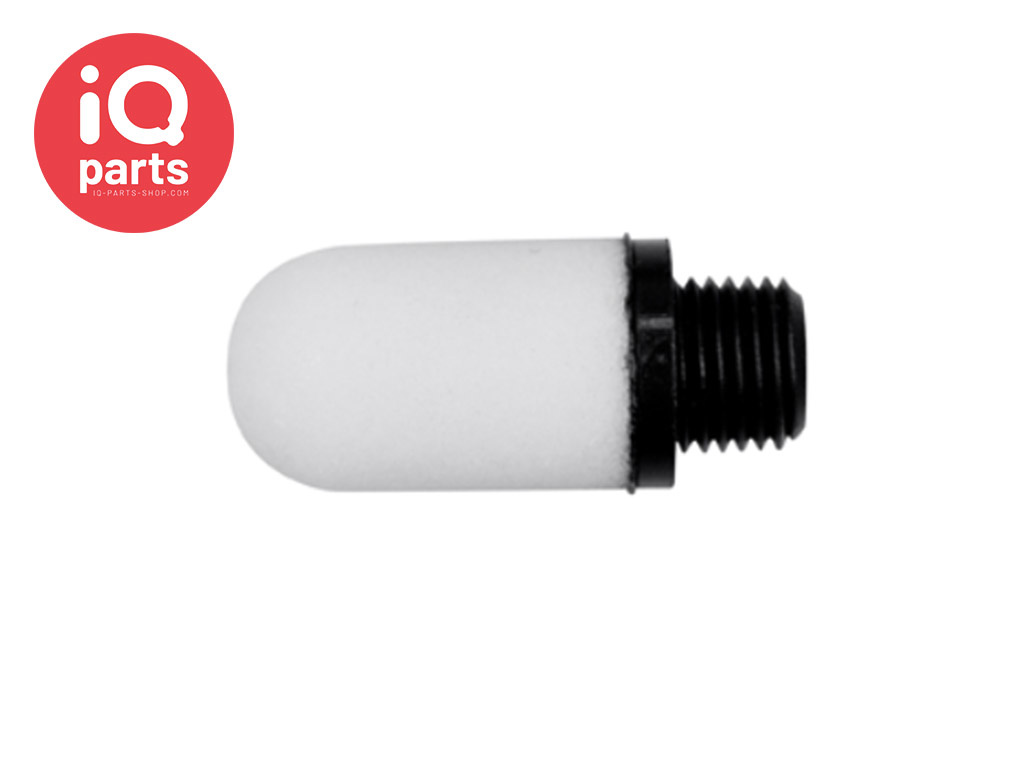

The DQPROFIL01 air filter (70 Micron) to screw into the vent hole of the coupling. The material of the filter is polypropylene. Connection is a ¼” NPT male thread.

You can combine this air filter with all couplings from the DrumQuik PRO series.

Specifications of this item:
  • Material: Polypropylene
  • Density: 70 Micron
  • Connection: 1/4" NPT


General information about the DrumQuik®PRO series:

Features and benefits:

  • Quick connect/disconnect = Faster container change-outs
  • Automatic shutoff valve = Stops flow when disconnected
  • Disposable container insert = Reduces chemical exposure and messy handling

Materials:
  • Drum insert & dip-tube: Virgin polyethylene (HDPE)
  • Shipping plug: Virgin polyethylene (HDPE) or FKM
  • Valves: 316 SS, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 SS (TESS)

Seals:
  • Coupler seals: EPDM, FKM or Simriz UHP FFKM Perfluoroelastomer
  • Bung seal: Polyolefin, EPDM or FKM
  • Shipping plug seal: EPDM or FKM

Specifications:
Operating pressure:
  • Disconnected: vacuum to 3.1 bar (45 PSI)
  • When coupled: vacuum to drumrating

Operating Temperature:
  • Drum Insert: -29ºC to 49ºC (-20ºF to 120ºF)
  • Coupler: HPDE 0ºC to 49ºC (32ºF to 120ºF)

Look for more technical info in the PDF

 Look at related products for the right choice for your application or contact our sales department: [email protected]



Specifications
Medium: Air
Operating Pressure: 3,1 bar Vacuum
Temperature range: -29° C tot +49° C
Material: Polypropylene
Size: --
Connection: 1/4" NPT male Thread
Seal: --
Hose connection: --
Weight: --
CPC CPC - DQPROFIL01 | Air filter | Polypropylene | 70 micron, Coupler Vent Port
