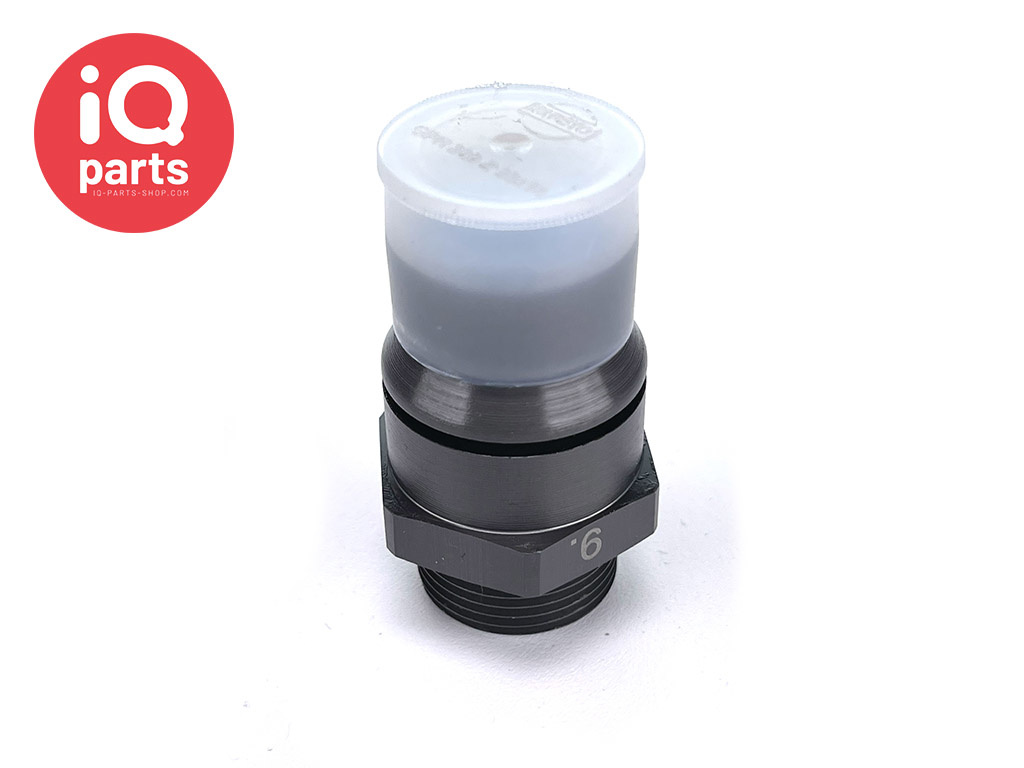

VDA Screw-in spigot Metric male thread | NW20 - M23x2
Brand:
IQ-Parts
- Buy 10 for €17,74 each and save 10%
- Buy 25 for €16,75 each and save 15%
- Buy 50 for €15,77 each and save 20%
- Buy 100 for €13,80 each and save 30%
| Article number: | PRK-M33-M20-F82EDHVDA |
| SKU: | M33-M20 F82EDHVDA |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information

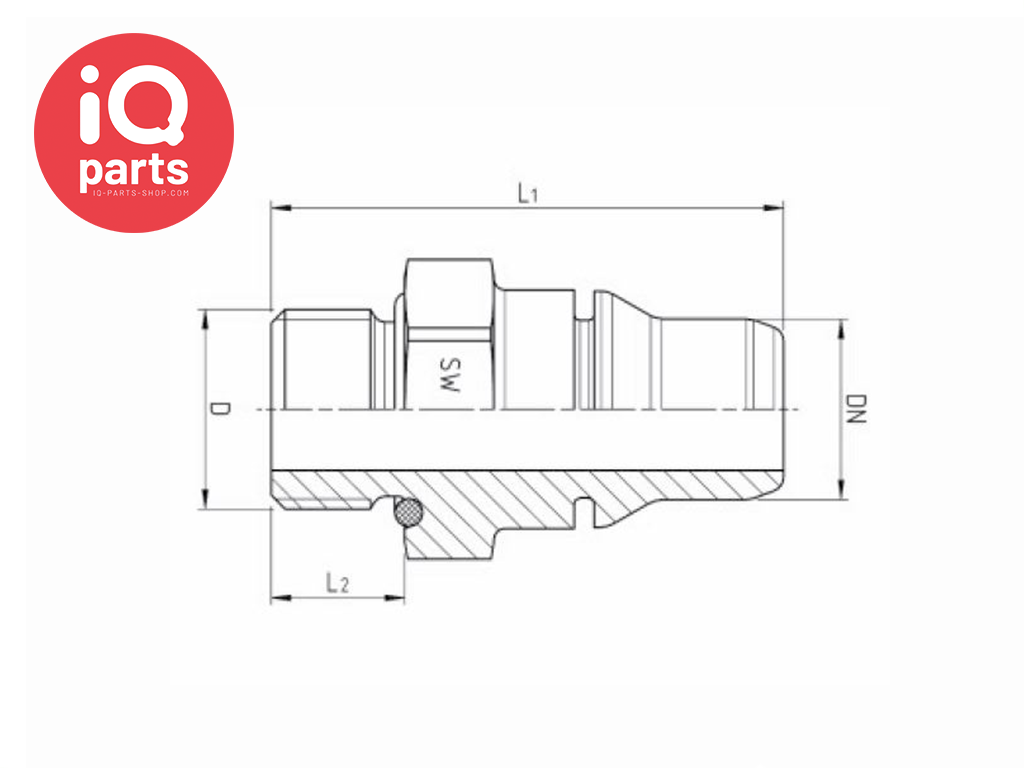

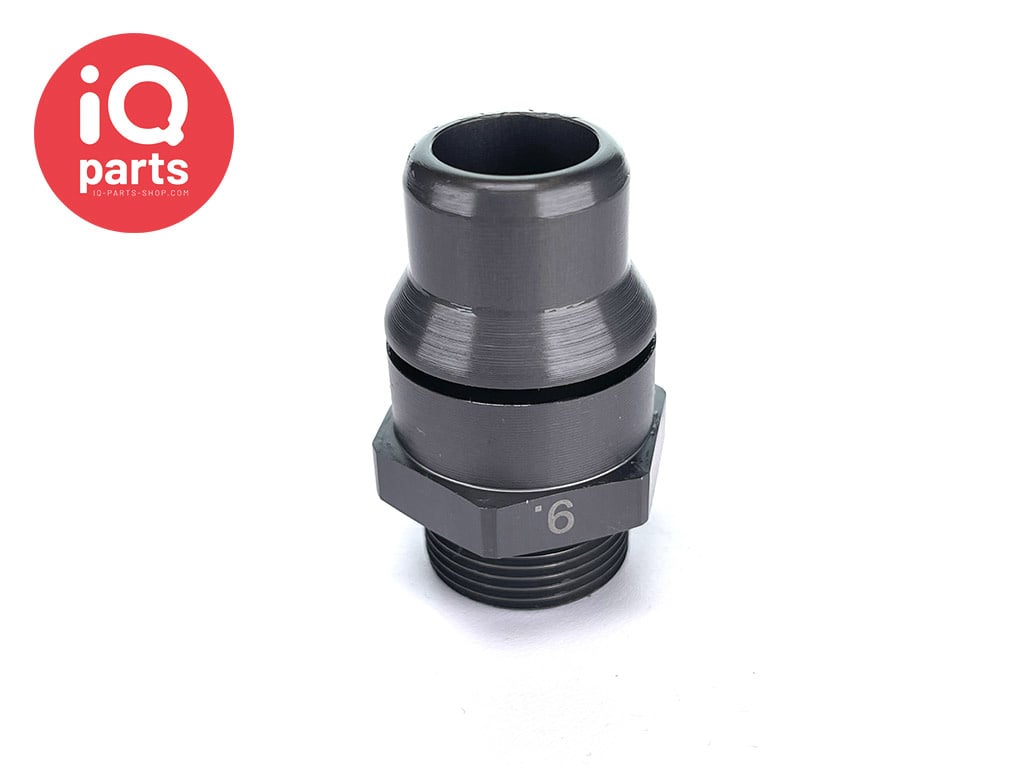

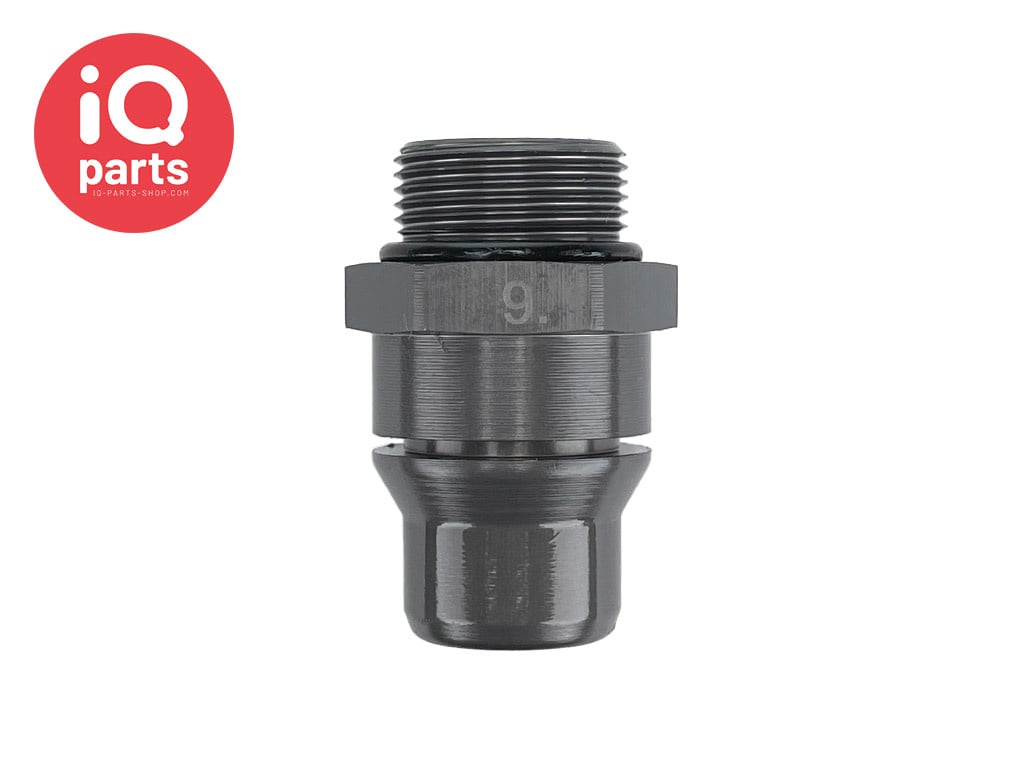

VDA Screw-in spigot Metric male thread | NW20 - M23x2
A VDA connection with a metric male thread. This screw-in nipple is supplied in aluminum. Stainless steel AISI301, AISI316 or steel versions are available upon request. Please contact our sales department for more information.
Various types of O-rings are at your disposal.
VDA-style adapters are quickly becoming the standard in the e-mobility market. Due to the strength of metal, these adapters provide extended life when connected to metal manifolds, pumps, valves, batteries, etc. in your system. We can also offer custom metal VDA adapters to meet the unique configuration needs of your system.
Advantages of these VDA adapters:
- Made from metal for maximum durability and leak-free performance.
- Various terminal configuration required for your system, such as: Male VDA connection, ECH hose ends, SAE J2044, Bulkhead, etc
- Full range available to meet your system needs
Are you an OEM customer and do you need a spigot according to your wishes? We develop and produce custom spigots in collaboration with various partners. Please contact our sales department for this.
Product code:M33-M20 F82EDHVDA
Specifications
| Medium: | Cooling Water |
| Operating Pressure: | 0–2 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Aluminium |
| Size: | NW12, NW16, NW20 |
| Connection: | 0° |
| Seal: | EPDM / FKM |
| Hose connection: | -- |
| Weight: | 43 Gram |
