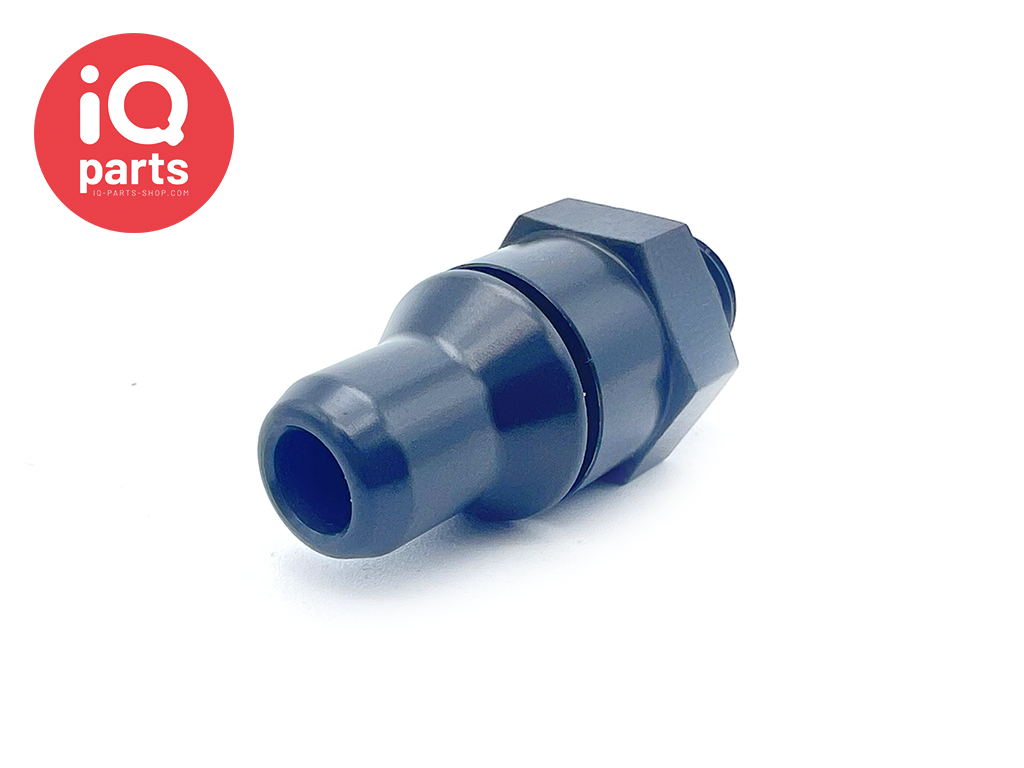

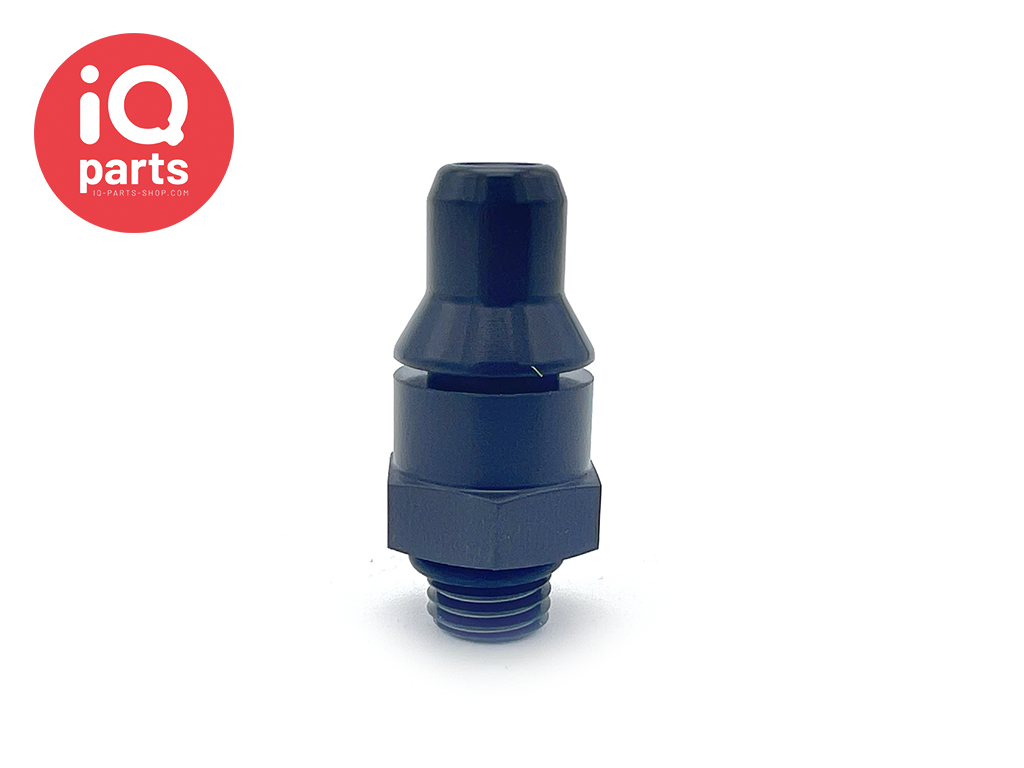

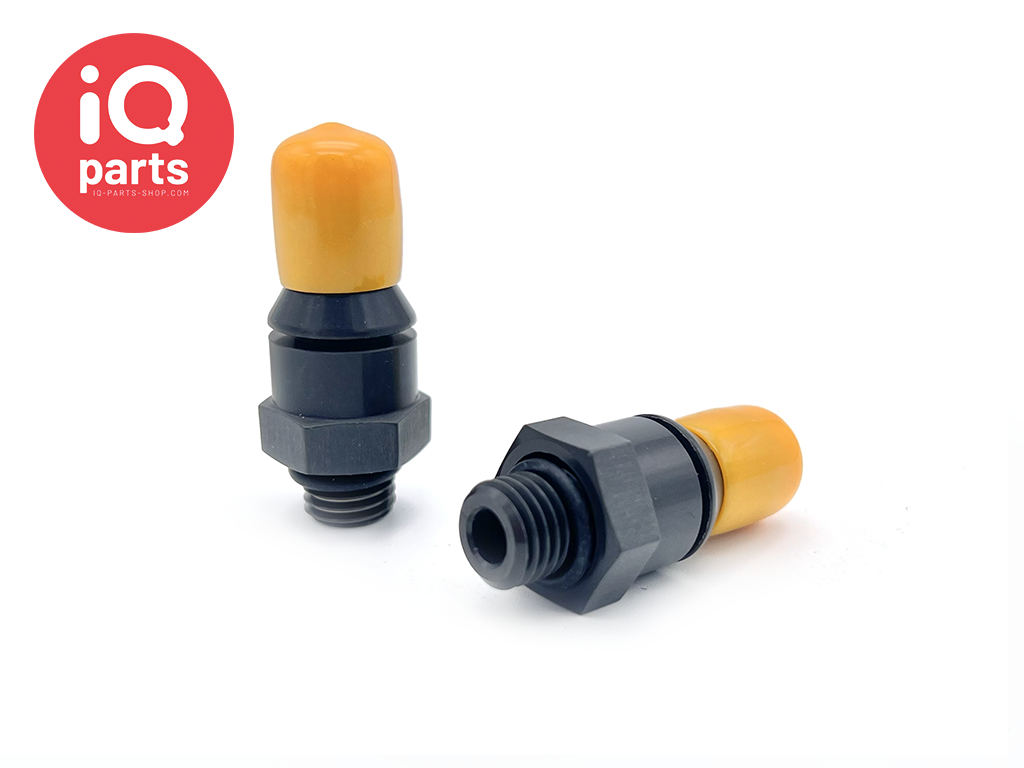

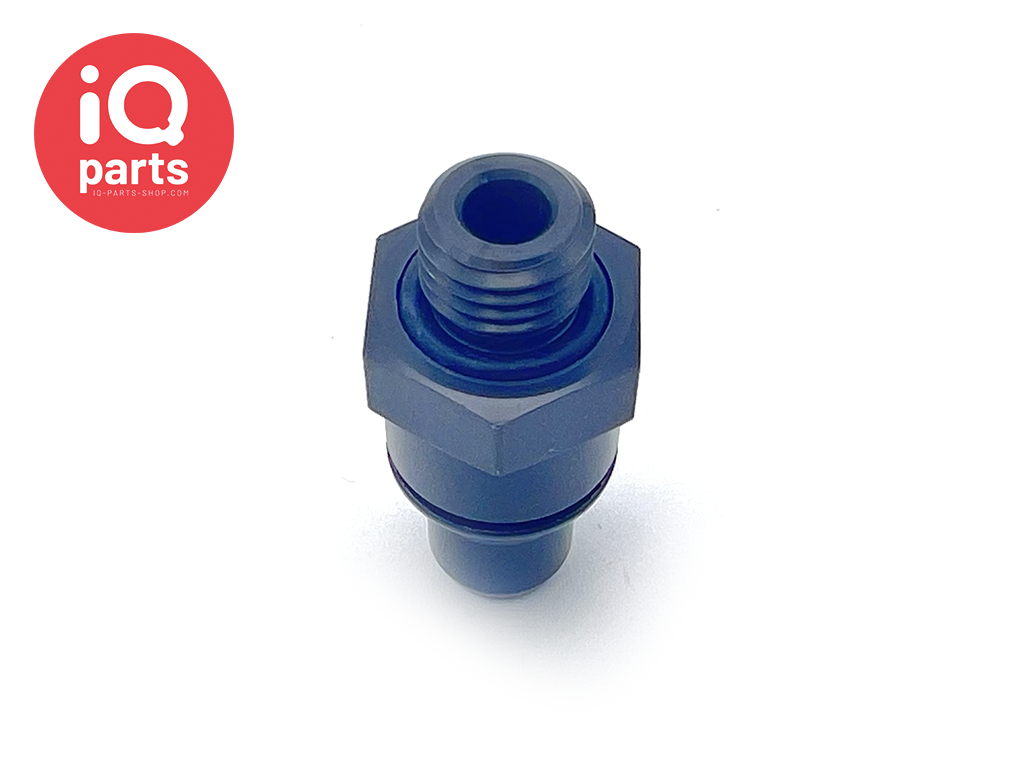

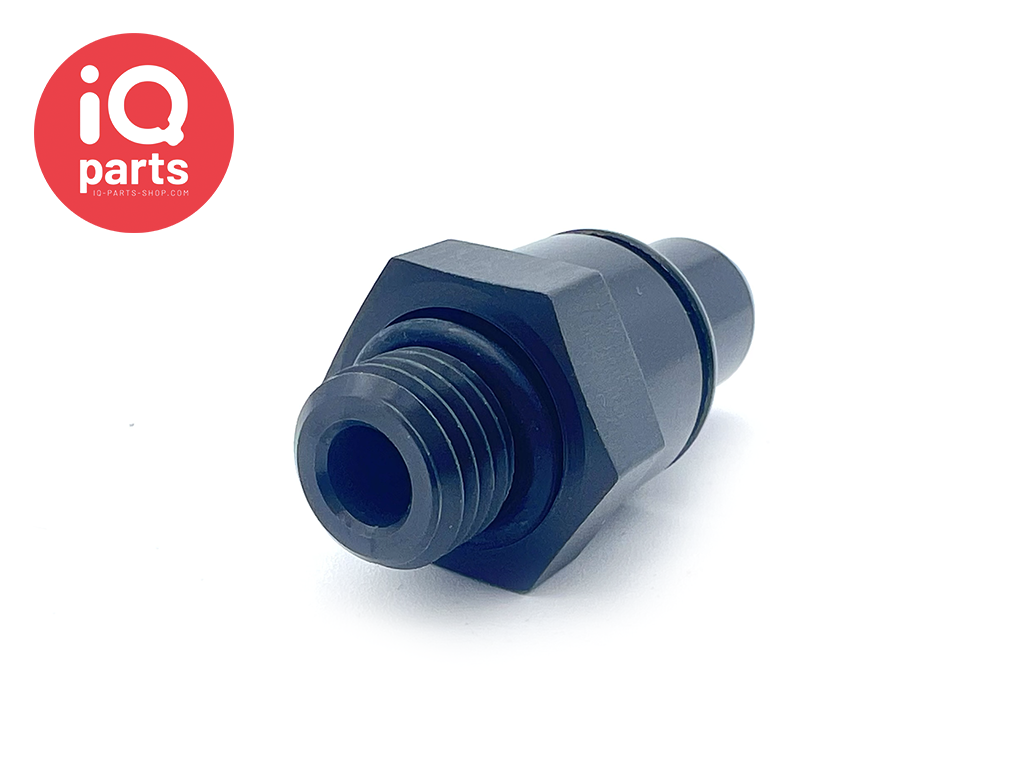

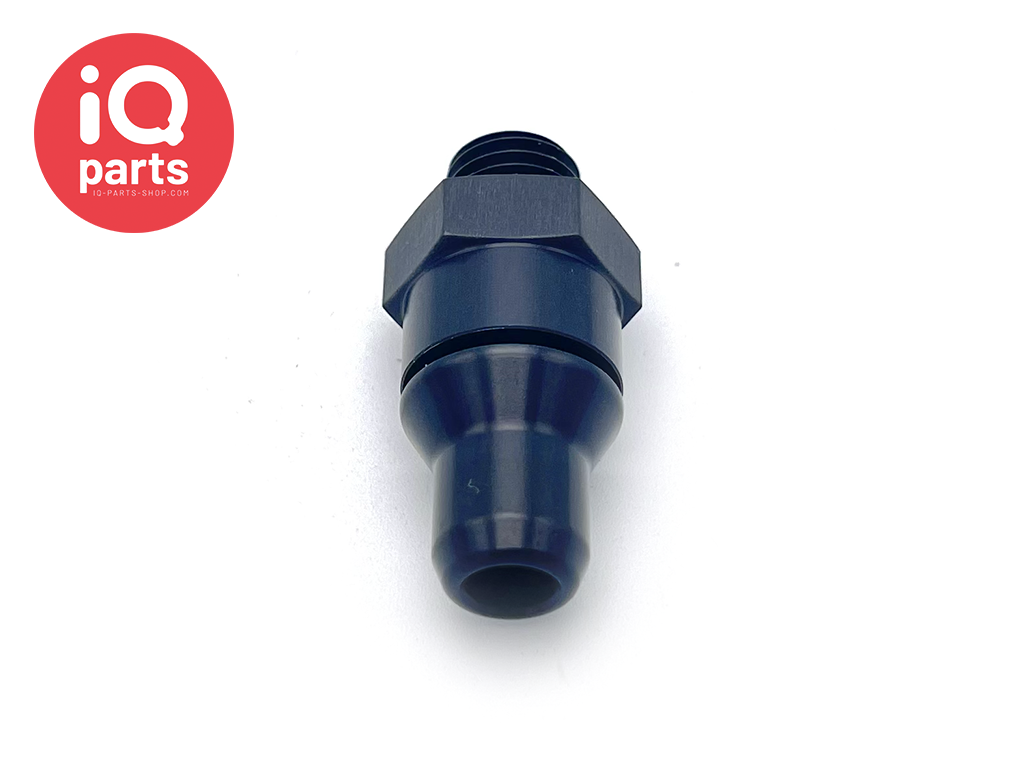

VDA Screw-in / push in spigot NW08 - M12x1.5 for Normaquick® PS3
Brand:
IQ-Parts
- Buy 25 for €8,71 each and save 10%
- Buy 50 for €8,23 each and save 15%
- Buy 100 for €7,26 each and save 25%
| Article number: | NOR-40061311X |
| SKU: | 40061311X |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information
VDA Screw-in / push in spigot NW08 - M12x1.5 for NORMAQUICK PS3
Screw-in / push in spigot according to VDA (suitable for NORMAQUICK® PS3) and SAE (SAE J2044)

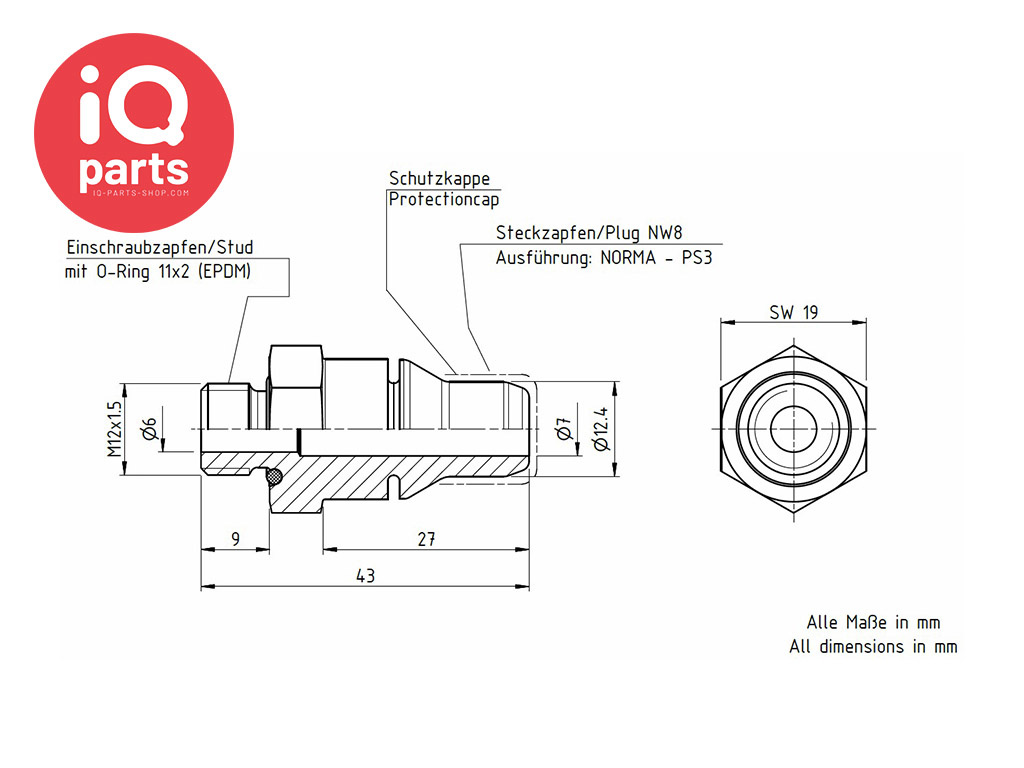

VDA screw-in spigot NW08 - M12x1.5 for NORMAQUICK PS3 for screwing in, has a nominal width of 8 (NW08). This means that the internal size of the screw-in spigot is 8 mm. The male thread M12x1.5 makes it possible to screw in the spigot. Due to the EPDM seal (under the hexagon), the screw thread does not need to be additionally sealed.
Connectors according to the VDA standard (suitable for NORMAQUICK® PS3) and according to the SAE standard (SAE J2044) have been established connection solutions in the vehicle industry for many years. These plug-in systems are mainly used for air or liquid pipes in the field of temperature control systems (cooler pipes / heating pipes), air systems and fuel systems. A male spigot (eg for a threaded connection on the cooler) or possibly a pipe connector with a standardized VDA or SAE connector is required as a counterpart to the connector on the air or liquid lines.
Tightening torque: 40 + 5 Nm
Medium: cooling water
Operating pressure: 2 bar max.
Temperature: -40°C to +135°C (short-term up to +150°C)
The screw-in spigot is supplied with an EPDM O-ring as standard. If you want a Viton O-ring, please select it in the menu at the top recht.
The O-rings are also available, on request, in the following materials:
(Click on the material for their properties)
Are you an OEM customer and do you need a spigot according to your wishes? We develop and produce custom spigots in collaboration with various partners. Please contact our sales department for this.
Specifications
| Medium: | Cooling Water |
| Operating Pressure: | 0–2 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Aluminium |
| Size: | NW08 - M12x1,5 |
| Connection: | 0° |
| Seal: | EPDM (= Standard) |
| Hose connection: | Screw in M12 x 1.5 |
| Weight: |
