Isiflo - Repair clamp | Type 101 & 112 | cast iron | EPDM | Galvanized bolts
Brand:
Melcher + Frenzen
| Article number: | ISI-M0011140BW |
| EAN: | 4043611033766 |
| SKU: | M0011141BW |
- 2 year warranty
- Delivery time: 4 weeks
Information

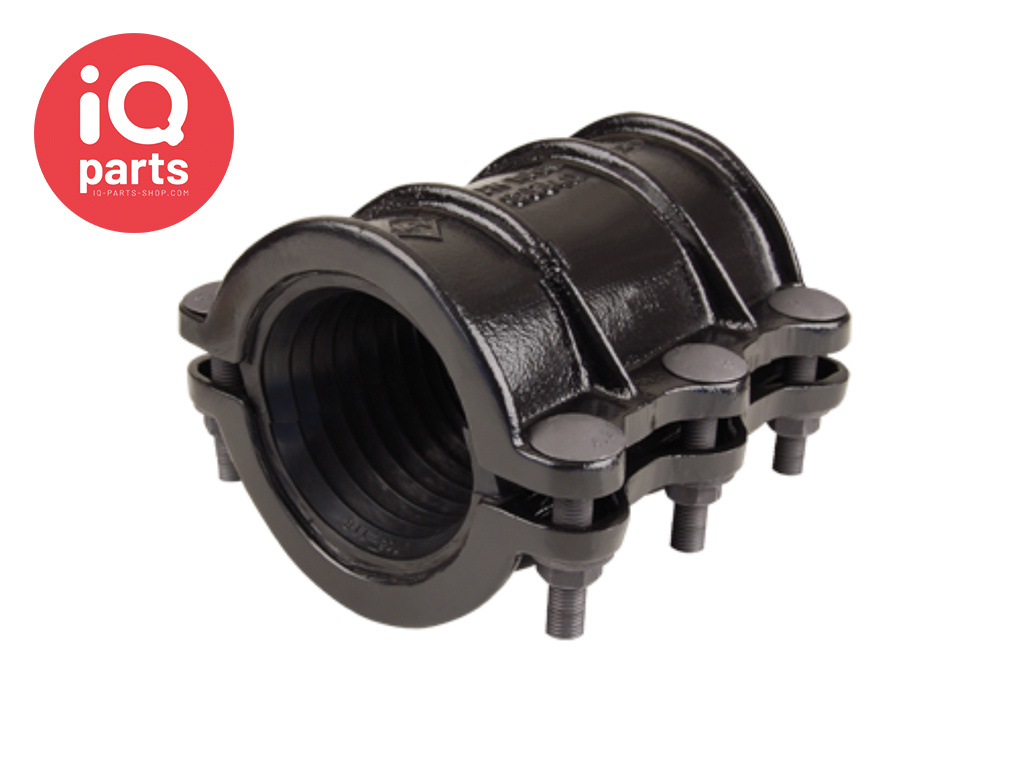

Isiflo - Repair clamp | Type 101 & 112 | cast iron | EPDM | Galvanized bolts
The pipe rupture sealing clamps are made of solid cast iron, are extremely durable, and can be used for drinking water and gas pipes. The material is given a cathodic dip-coating before vulcanization, resulting in exceptional corrosion resistance. Large lamellae in the sealing profiles ensure simple and reliable bridging of any irregularities in the pipe wall.
These clamps are perhaps even better known by their old name: Melcher-Frenzen Armaturen.
Features:
- The clamps can be used for many types of pipes, such as steel, PVC, cast iron, AC, and PE pipes.
- Suitable for repairing drinking water and gas pipes.
- Available from DN 40 to DN 300.
- Nominal pressure: Standard PN 16, PN 25 available upon request.
- Temperature range: -20ºC - +110ºC
Outside the specified temperature ranges, an EPDM compound is available on request for continuous loads up to +150 °C (e.g. for district heating).

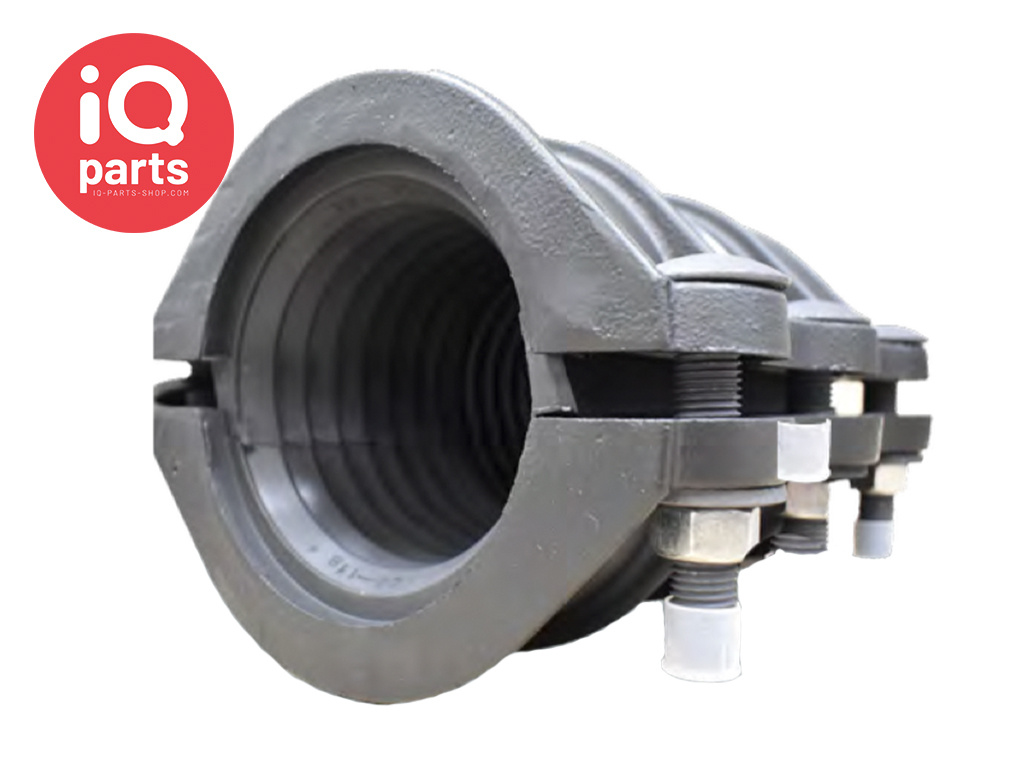

The clamps are equipped with Galvanized nuts and bolts. Also available with Stainless steel nuts and bolts with Gliss-Coat®. (CLICK HERE)
Advantages:
- Corrosion-resistant thanks to the full-length "Special-Coat 43" KTL coating
- Fastest delivery, even up to DN 300
- Extremely durable, as the cast components do not come into contact with the medium
- Easy installation and high safety thanks to the sealing profile along the entire length
- Simple and secure bridging of unevenness in the pipe walls thanks to large fins in the sealing profiles
- Transport protection thanks to locking screws and thread protection caps
- In double lengths, these can also be used as couplings between steel and cast iron pipes (axially force-free connections)
- With a sealing profile for bridging diameter differences between 4 and 6 mm or 6 and 10 mm
- 5-year warranty for all gas and water suppliers and HVAC installers
- Direct vulcanization of the rubber in the clamp body, preventing the seal from slipping
- DVGW-approved seal W270 certificate
- Also available for higher pressures and district heating.
Prices are still "On Request" for now. Please contact our sales department for a personalized quote.
Product code:
M0011140BW - M0011142BW - M0011160BW - M0011172BW - M0011182BW - M0011192BW - M0011203BW - M0011206BW - M0012241BW - M0011224BW - M0011010BW - M0011011BW - M0011013BW - M0012223BW - M0013044BW - M0011027BW - M0011028BW - M0012226BW - M0011042BW - M0011043BW - M0012229BW - M0011083BW - M0011084BW - M0011117BW - M0011134BW
GTIN:
4043611033766 - 4043611033780 - 4043611033896 - 4043611033957 - 4043611034015 - 4043611034077 - 4043611034169 - 4043611034176 - 4043611040450 - 4043611034251 - 4043611033032 - 4043611033049 - 4043611033063 - 4043611040276 - 4043611041181 - 4043611033162 - 4043611033179 - 4043611040306 - 4043611033247 - 4043611033254 - 4043611040337 - 4043611033476 - 4043611033483 - 4043611033667 - 4043611033735
