NORMAQUICK® S straight Quick Connector 0° NW5/8" - 16 mm
Brand:
NORMA
| Article number: | NOR-7158501016 |
| EAN: | 4050557354893 |
| SKU: | 07158501016 |
- 2 year warranty
- Delivery time: 8 - 12 weeks
- Customer service 09:00 - 17:00
Information

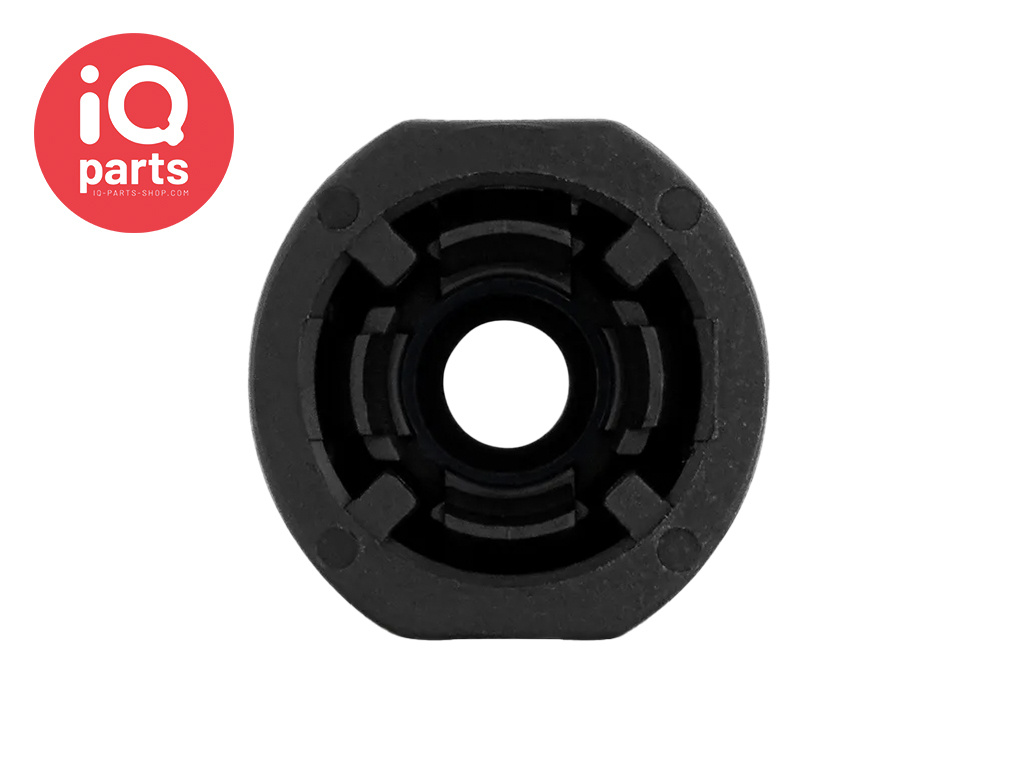

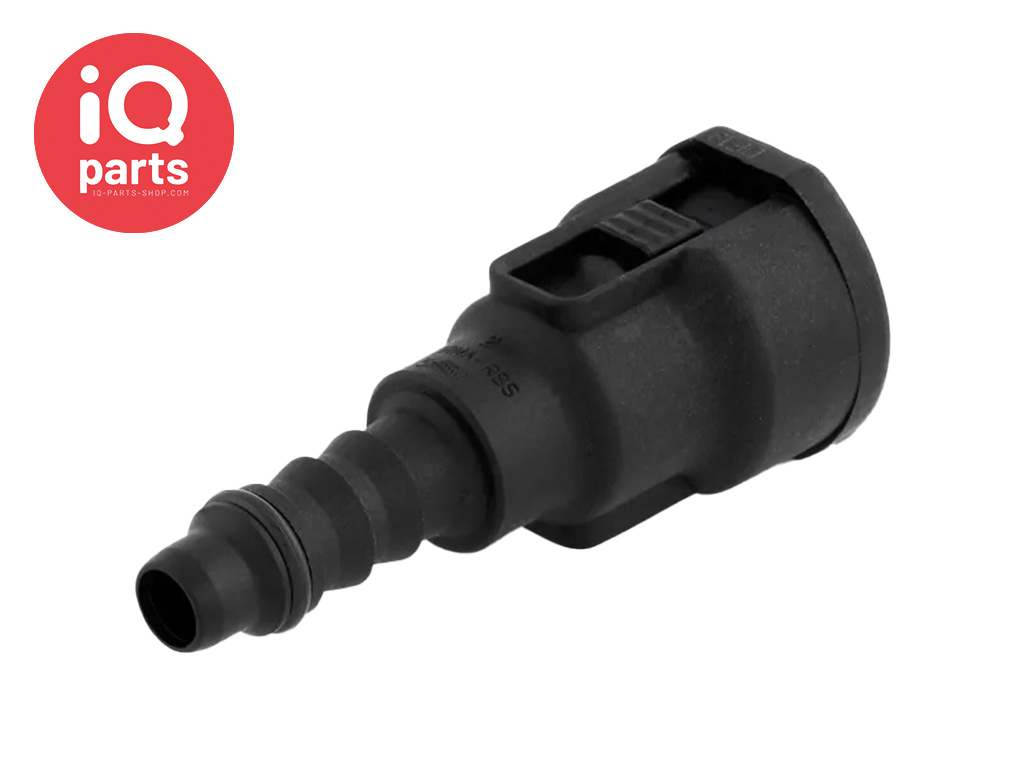

NORMAQUICK® S straight Quick Connector 0º NW5/8" with 16 mm (5/8") hose connection
The NORMAQUICK® S plug connectors made of plastic, are designed to connect media carrying lines on automobiles.
They are primarily developed for fuel applications and contain FPM and FVMQ sealing rings.
The connectors can be used for both line-to-line and line-to-device connections.
They are available as standard in connection variants 0°, 45° and 90°.
The advantages at a glance
- Fast assembly without tools: time and cost savings
- Robot mounting possible - automated processes
- Compact design - can be used in extremely tight installation conditions

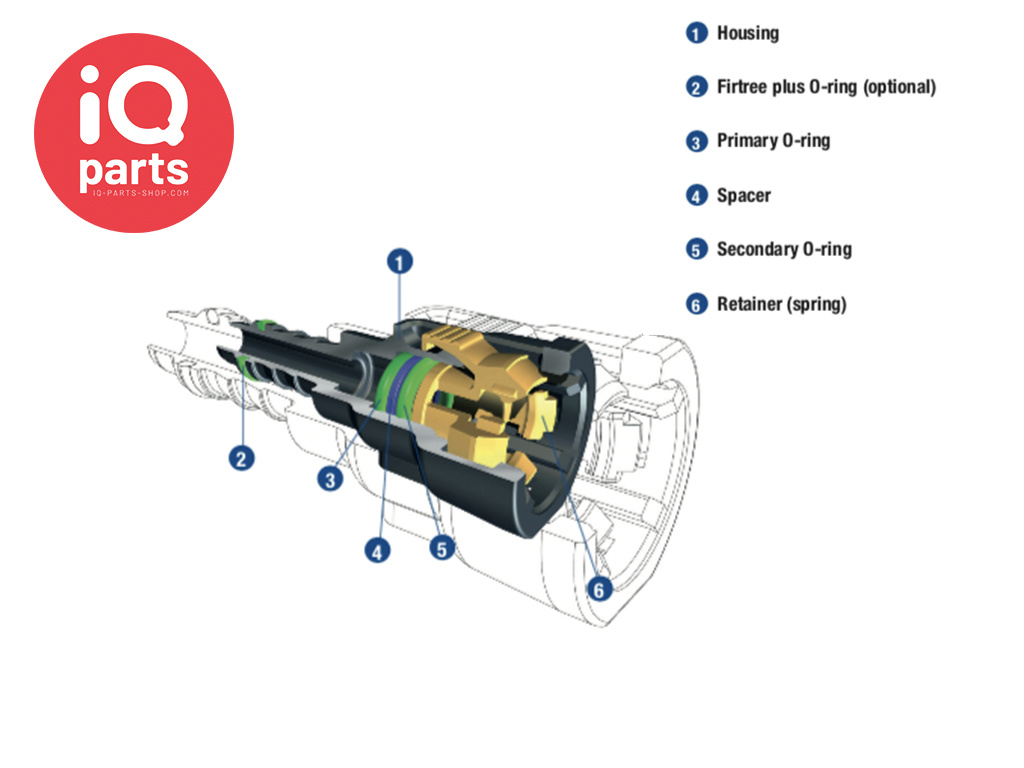

- Integrated sealing - optimum tightness
- The principle of the closing cone type S is protected against accidental opening and cannot be unlocked under pressure
The minimum order quantity is 250 pieces.

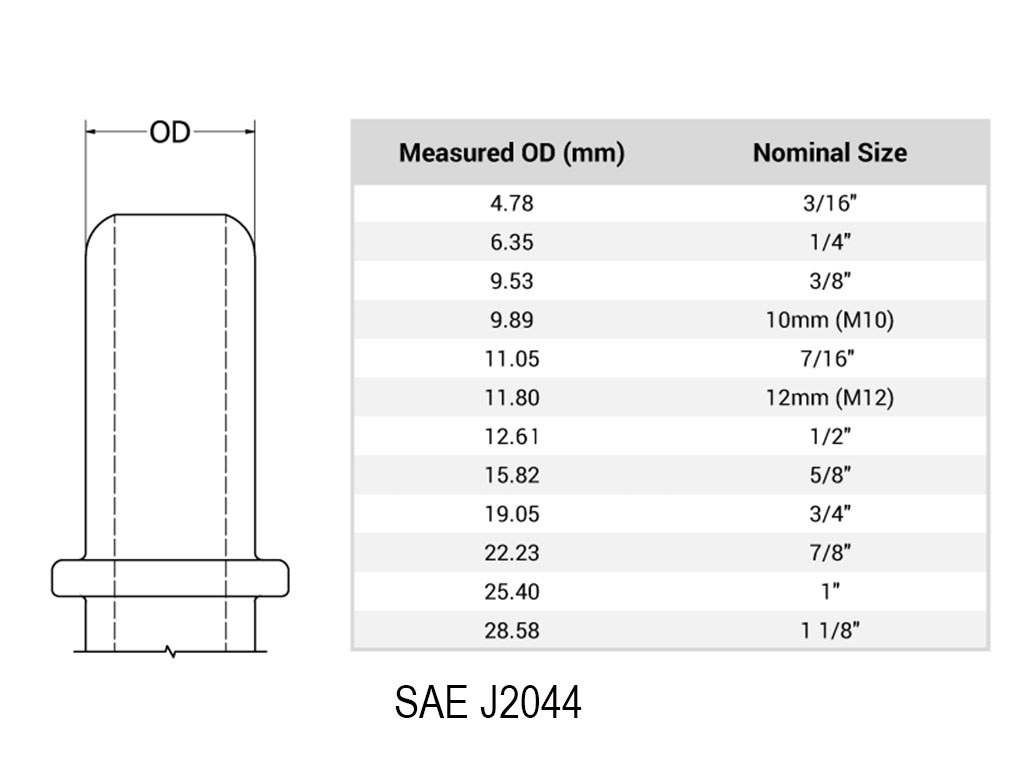

Technical drawing:
Product code:
07158501016 - 07157501016 - 07156501016 - 0715 8501 016 - 0715 7501 016 - 0715 6501 016
EAN:
4050557354893
Specifications
| Medium: | Fuel, Oil cooler, Vacuum control, Coolant, DEF |
| Operating Pressure: | Approx. 10 bar excess pressure |
| Temperature range: | –40°C to +135°C, Short time up to +150°C (approx. 30 min.) |
| Material: | Polyamide 6 or 12 with a glass fiber content between 20% and 50% |
| Size: | NW5/8" |
| Connection: | 0° |
| Seal: | FPM-FVMQ |
| Hose connection: | 16 mm (5/8") Inner diameter |
| Weight: |
