CPC - LQ8D17010L | Coupling Body | Chrome-plated brass | Hose barb 15,9 mm (5/8")

€224,91 Incl. tax
€185,87 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 8 - 12 weeks
Article number: CPC-LQ8D17010L
SKU: LQ8D17010L
  • 2 year warranty
  • Delivery time: 8 - 12 weeks
  • Customer service 09:00 - 17:00
Information

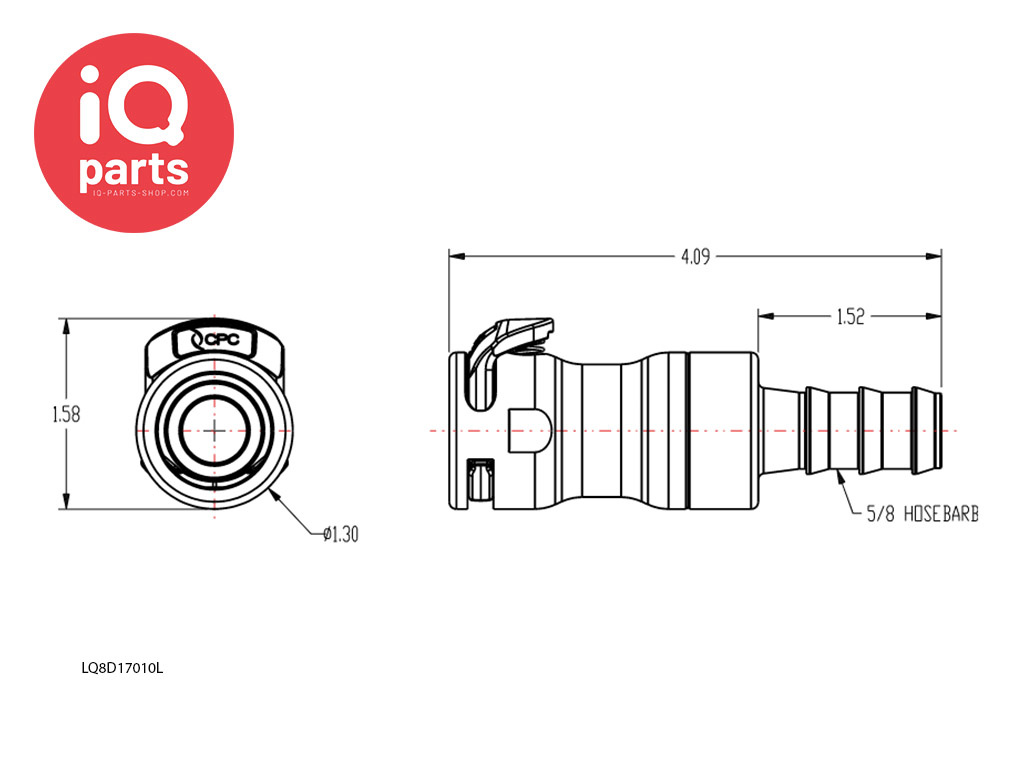

CPC - LQ8D17010L | Coupling Body | Chrome-plated brass | Hose barb 15,9 mm (5/8")

A In-line coupling body from CPC from the LQ8 series with a 15,9 mm hose barb. This coupling body (female) ensures a leak-free seal, partly provided by an EPDM sealing ring.

Features of the couplings from the LQ8 series:
  • Brass material
  • Chrome Finish
  • Non-spill design; Disconnecting under pressure with no spill
  • Extra protection against leaks for a extended period of time
  • High flow capacity at low pressure; cost-effective cooling system
  • EPDM O-ring
  • Ergonomic design; Easy one-handed operation with audible closing
  • Small design; dimensions suit electronics in small spaces
  • Available with screw thread and hose tail

Possible applications:
  • Server Cooling
  • Cooling Liquid
  • Thermal Management
  • Cooling systems
  • Equipment building

General information about the LQ8 series:
Everis™ LQ8 Series feature 1/2” flow for liquid cooling of electronics applications. Specifically designed for thermal management applications, Everis LQ8 connectors offer a high-flow capacity to optimize liquid cooling system performance. They provide ultra-reliable, dripless connections and disconnections for ease of use and peace of mind given proximity to sensitive or valuable equipment components. LQ8 quick disconnects (QDs) use patent pending valve technology that eliminates drips and are designed for long-term use. EPDM seals are a standard option for compatibility with glycol/water coolants.

  • Material: Chrome Plated Brass
  • Valve and release button: Polyphenylsulfone
  • Available with hose tail, male thread 3/4" SAE-1, 3/4" G
  • Stainless steel valve spring
  • O-rings: EPDM
  • Working pressure: vacuum up to 8,3 bar (120 PSI)
  • Operating temperature: -17ºC to 115ºC (0ºF to 240ºF)
  • Droplet Formation: <0.02 cc at ~ 0 bar and < 0.07 cc at ~ 4,1 bar per disconnect


Look at related products for the right choice for your application or contact our sales department: [email protected]



Specifications
Medium: Liquid Cooling
Operating Pressure: 8,3 bar Vacuum
Temperature range: –17° C tot +115° C
Material: Chrome-plated brass
Size: 1/2" flow
Connection: In-line coupling
Seal: EPDM
Hose connection: 15,9 mm (5/8") Inner diameter
Weight: --
CPC CPC - LQ8D17010L | Coupling Body | Chrome-plated brass | Hose barb 15,9 mm (5/8")
