Interclamp - Kick Plate Saddle Fitting 348 | Galvanized | Type B34 & C42-D48
Brand:
Interclamp
| Article number: | ITC-W1-0348A |
| SKU: | 348B43 |
- 2 year warranty
- Delivery time: 1 week
Information
Interclamp - Kick Plate Joiner 345 | Straight | Galvanized

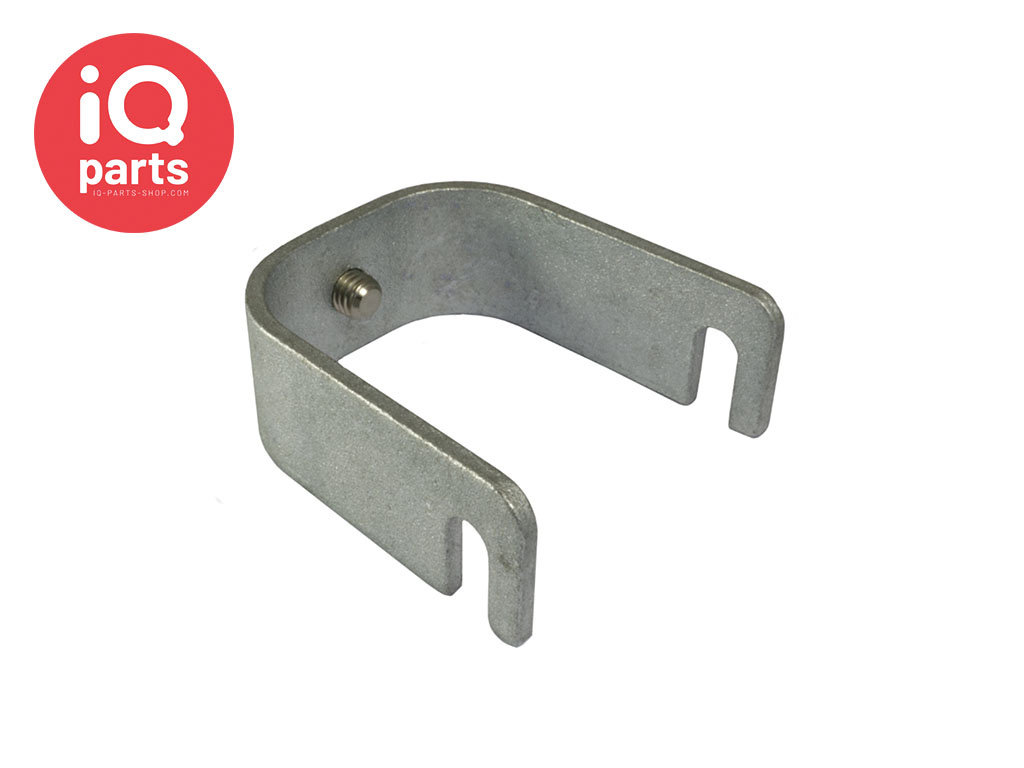

The kick plate saddle fitting is used to attach the kick plate / toe board to the handrailing uprights.Available in two sizes to suit B34 and C42 to D48 handrail posts.
*This item does not work in conjunction with standard bases 132 & 232
Kick plates or toe boards are often fitted to the underside of handrails to help comply with BS EN ISO 14122-3:2016 and other standards.
Kick plates are often installed on mezzanine floors, walkways, warehouses, factories and other places where there is a risk of tools and other objects falling and injuring someone underneath.
Dimensions for B34 poles:
- Depth (a): 52 mm
- Pole Depth (b): 36 mm
- Plate Width max. (c): 7 mm
- Notch Depth (d): 17 mm
- Width (e): 38 mm
- Weight: 0.1 Kg
Dimensions for C42 to B48 poles:
- Depth (a): 67 mm
- Pole Depth (b): 51 mm
- Plate Width max. (c): 7 mm
- Notch Depth (d): 17 mm
- Width (e): 51 mm
- Weight: 0.1 Kg
(Do not perform pre-drilling, pipe cutting or post casting or other dimensionally critical processes before receiving the fittings)
