CPC - EFC23612 / EFCD23612 | Elbow Coupling Insert | Polypropylene | Hose barb 9,5 mm (3/8")

€21,90 Incl. tax
€18,10 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 1 in stock
Delivery time: Delivery in 1 to 2 days
Article number: CPC-EFCD23612
SKU: EFCD23612
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
  • Customer service 09:00 - 17:00
Information

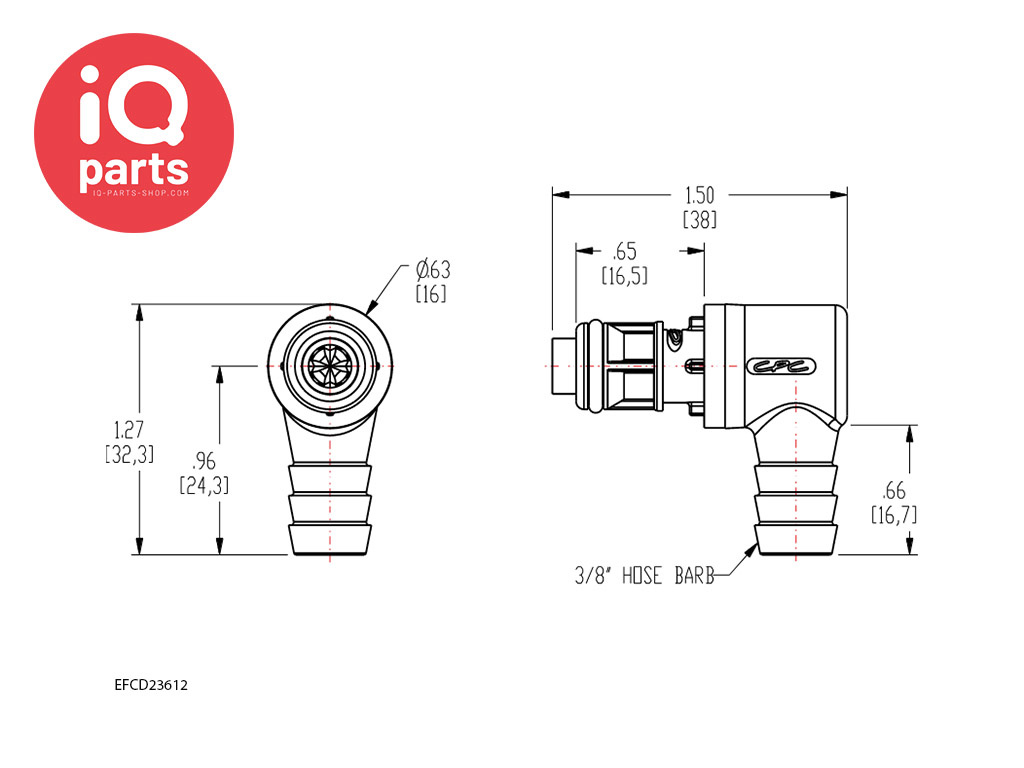

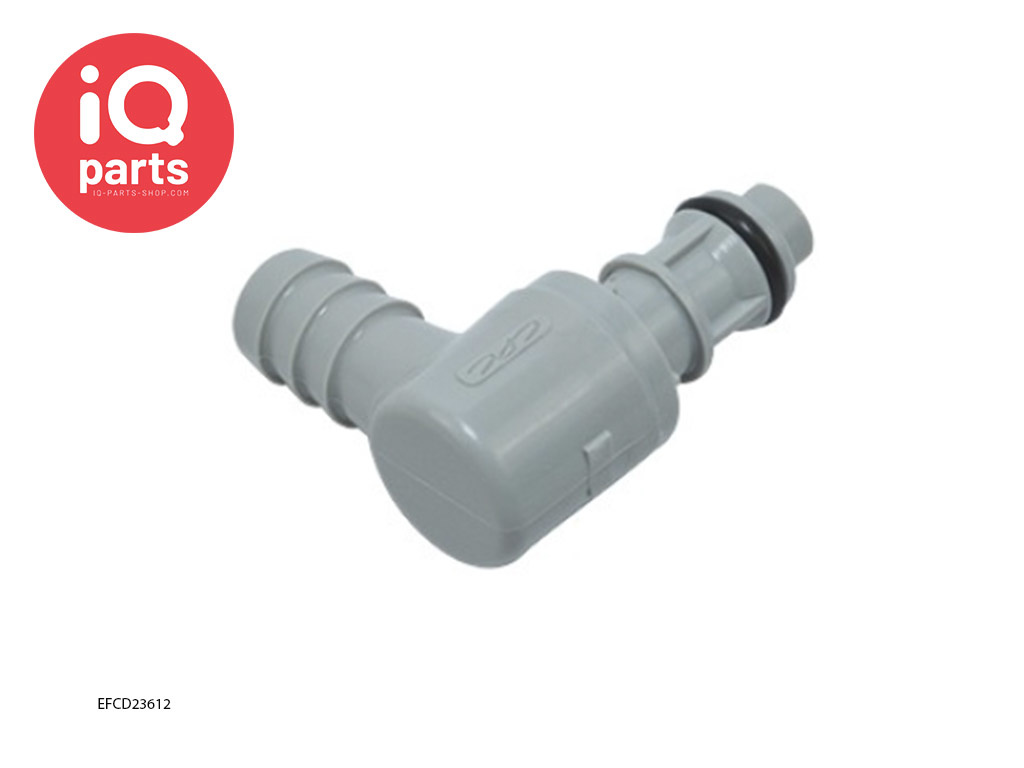

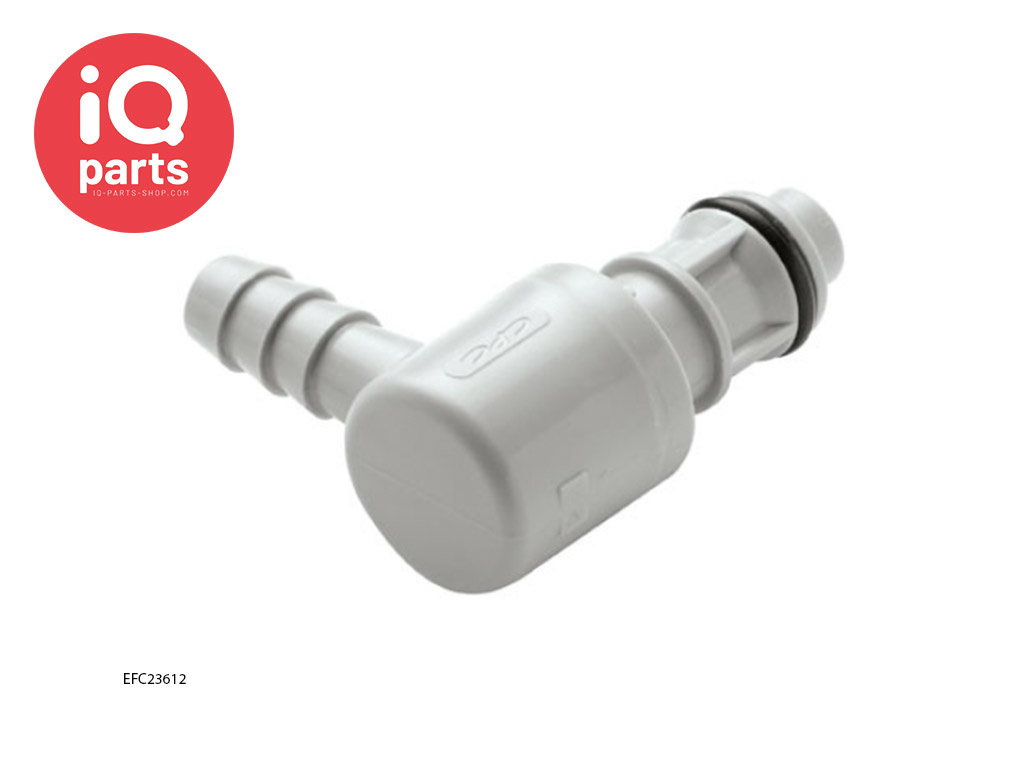

CPC - EFC23612 / EFCD23612 | Elbow Coupling Insert | Polypropylene | Hose barb 9,5 mm (3/8")


An elbow Coupling Insert of CPC from the EFC12 series with a 9,5 mm hose barb. This Insert (male) ensures a leak-free seal, partly provided by a EPDM sealing ring and is made of POLYPROPYLENE. This coupling is available with valve (EFCD23612) and without valve (EFC23612). (Choose at the top right at "Make a choice:")

Properties of the coupling from the EFC12 series:
  • High efficiency valve = More flow than PLC Series in a compact size
  • Plastic thumb latch = Fewer moving parts
  • Polypropylene material = Chemically resistant and gamma sterilizable
  • Compatible = Mates with most APC couplings

Applications:
  • Drinking water filtration
  • carpet cleaner
  • air mattress systems
  • heat therapy
  • parts cleaning
  • dispensing systems

General information about the EFC12 series:
The 9/32" flow EFC12 Series couplings feature a high efficiency valve design that provides a greater flow capability than any other coupling its size. Chemically resistant polypropylene material makes it ideal for harsh environments. The EFC12 Series adds a bulkhead panel mount option for tight seals against tank walls and drums.

These couplings offer the flexibility of multiple configurations and terminations and mate with APC-serie. For more technical information, see the PDF.

  • Material main components and valve: Polypropylene
  • Thumb latch is Polypropylene
  • Available in various sizes: 6.4 mm and 9.5 mm ID, also at an angle of 90º
  • Available with hose tail or male thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • External springs and pin: SS 302 (W4)
  • Available with panel mounting option
  • O-rings: EPDM
  • Panel mount gasket: EPDM
  • Vacuum up to 7.2 bar (105 PSI)
  • Temperature range: 0ºC to 71ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Chemicals
Operating Pressure: 7,2 bar Vacuum
Temperature range: 0° C tot +71° C
Material: Polypropylene
Size: 9/32" flow
Connection: Elbow Coupling Insert
Seal: EPDM
Hose connection: 9,5 mm (3/8") Inner diameter
Weight: --
CPC CPC - EFC23612 / EFCD23612 | Elbow Coupling Insert | Polypropylene | Hose barb 9,5 mm (3/8")
