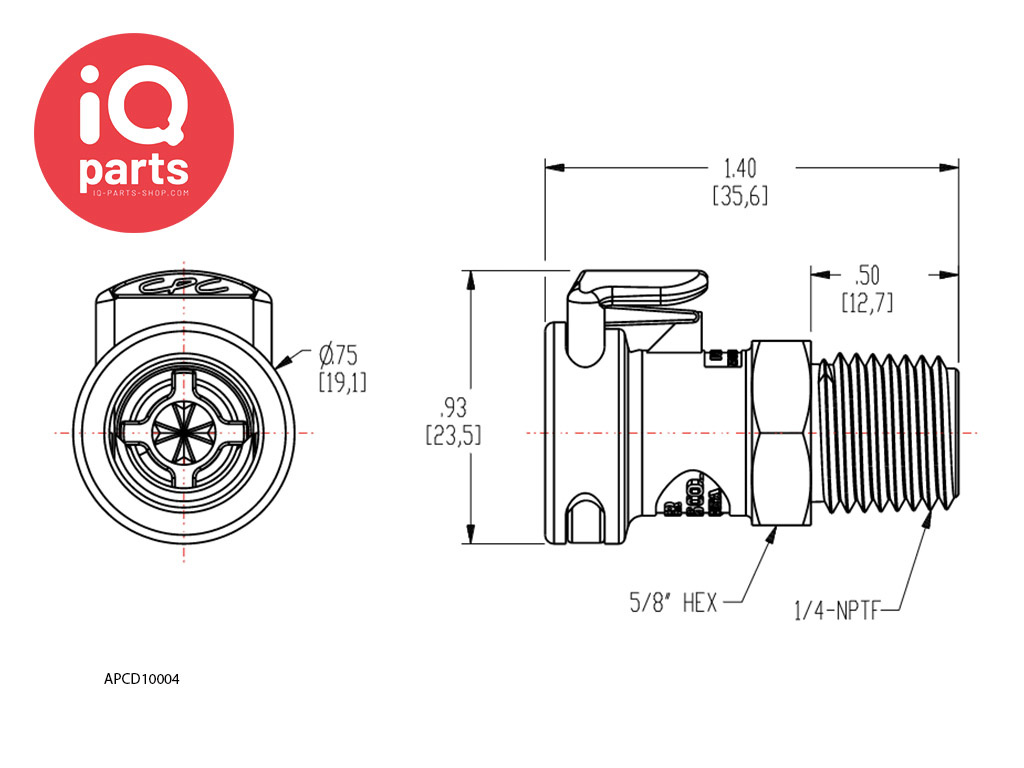

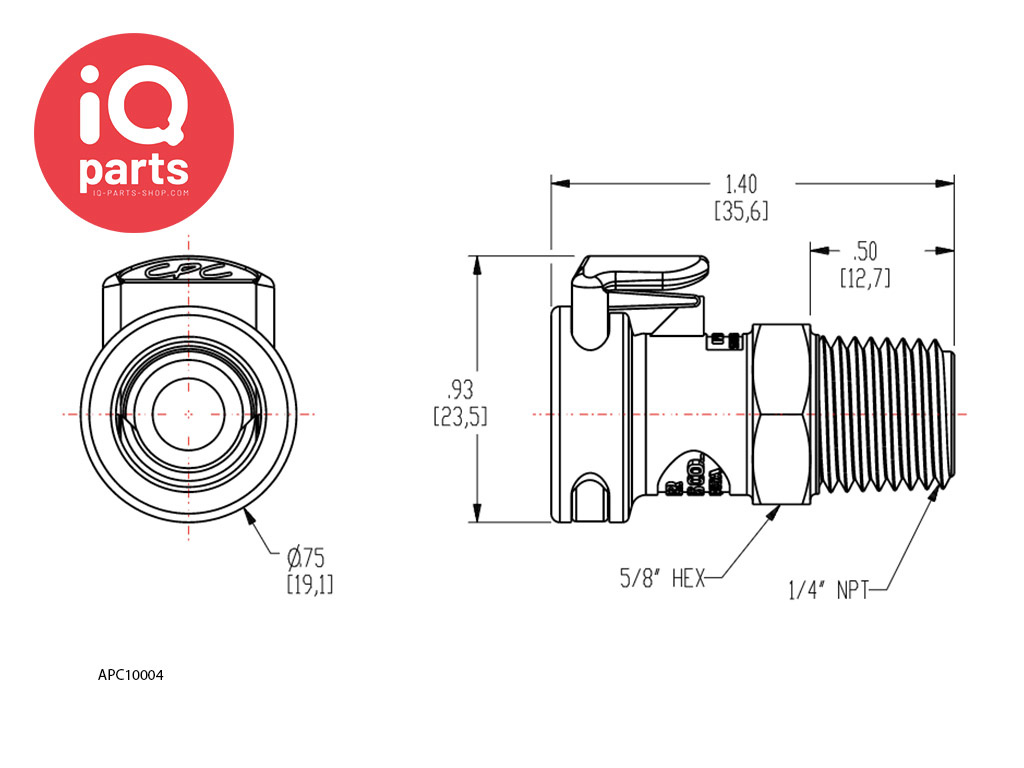

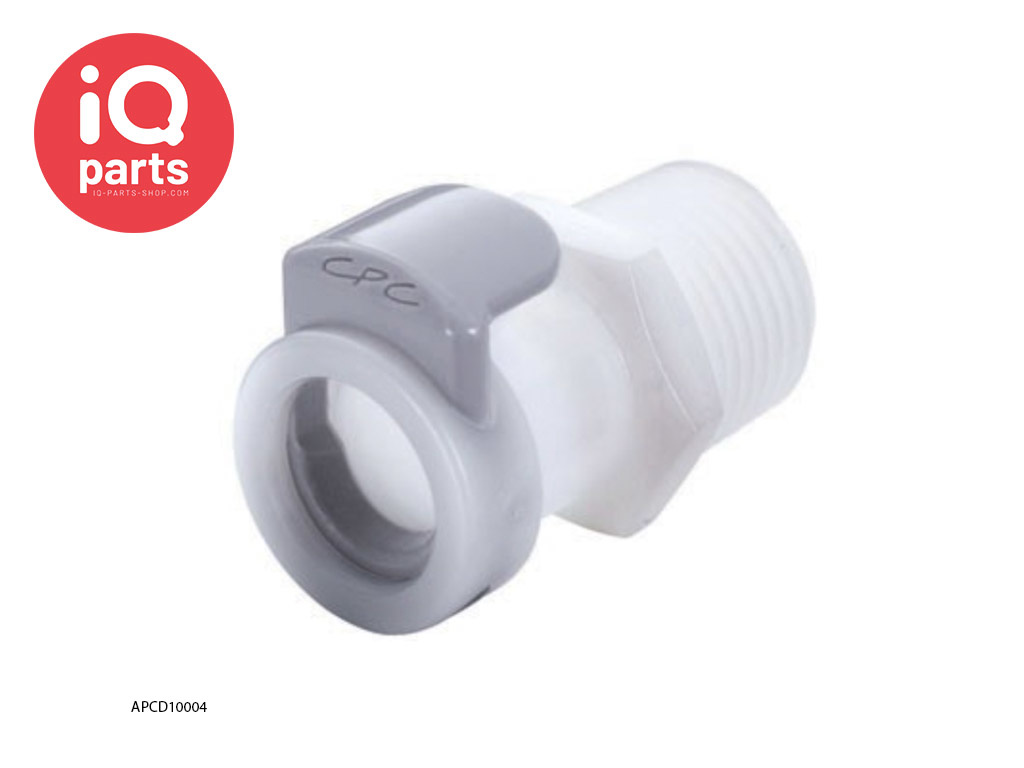

CPC - APC10004 / APCD10004 | In-line Coupling Body | Acetal | 1/4" NPT Pipe Thread

€8,39 Incl. tax
€6,93 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 10 in stock
Delivery time: Delivery in 1 to 2 days
Article number: CPC-APCD10004
SKU: APCD10004
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
Information

CPC - APC10004 / APCD10004 | In-line Coupling Body | Acetal | 1/4" NPT Pipe Thread


An in-line coupling Body of CPC from the APC series with a 1/4" NPT Pipe Thread. This coupling body (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (APCD10004) or without a valve (APC10004). (Choose at the top right at “Make a choice:”)

Properties of the coupling from the APC series:
  • Hose barb shroud
  • Integral terminations
  • Compatible
  • Click when connected
  • No leakage
  • Shorter assemblies, faster installation
  • Also mates with most EFC couplings
  • Assurance of a reliable connection

Possible Applications:
  • Drinking water filtration
  • Air mattress systems
  • Heat therapy
  • Parts cleaning
  • Dosing systems
  • Carpet cleaners

General information about the APC series:
1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC's application range. For more technical information, see the PDF.

  • Material: Acetal, thumb latch is plastic
  • Available in various sizes: from 6.4 mm to 9.5 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: Buna-N (NBR)
  • Vacuum up to 8.3 bar (120 PSI)
  • Temperature range: -40ºC to 82ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air
Operating Pressure: 8,3 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Acetal
Size: 1/4" flow
Connection: In-line coupling
Seal: Buna-N (NBR)
Hose connection: 1/4" NPT Pipe Thread
Weight: --
CPC CPC - APC10004 / APCD10004 | In-line Coupling Body | Acetal | 1/4" NPT Pipe Thread
